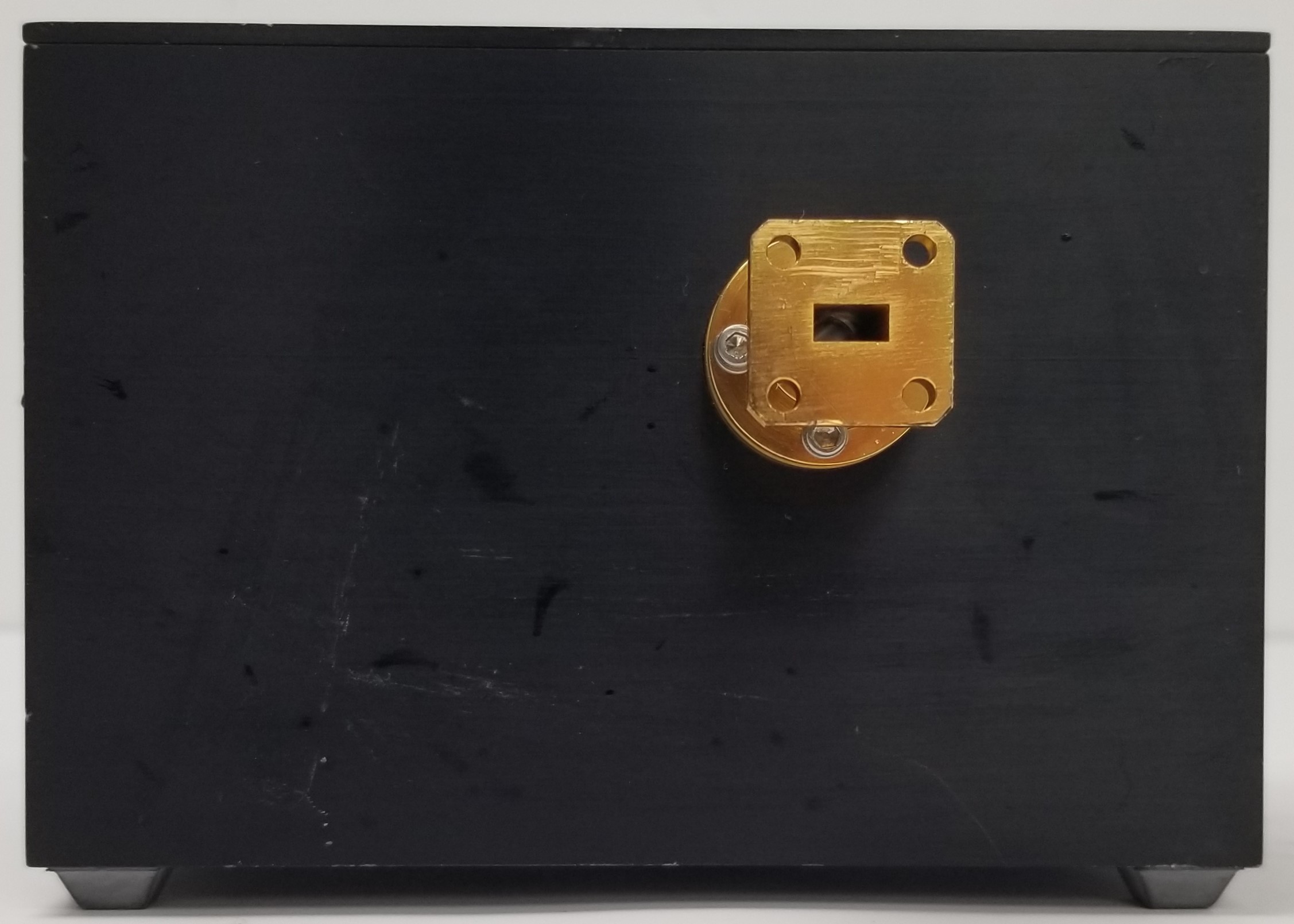

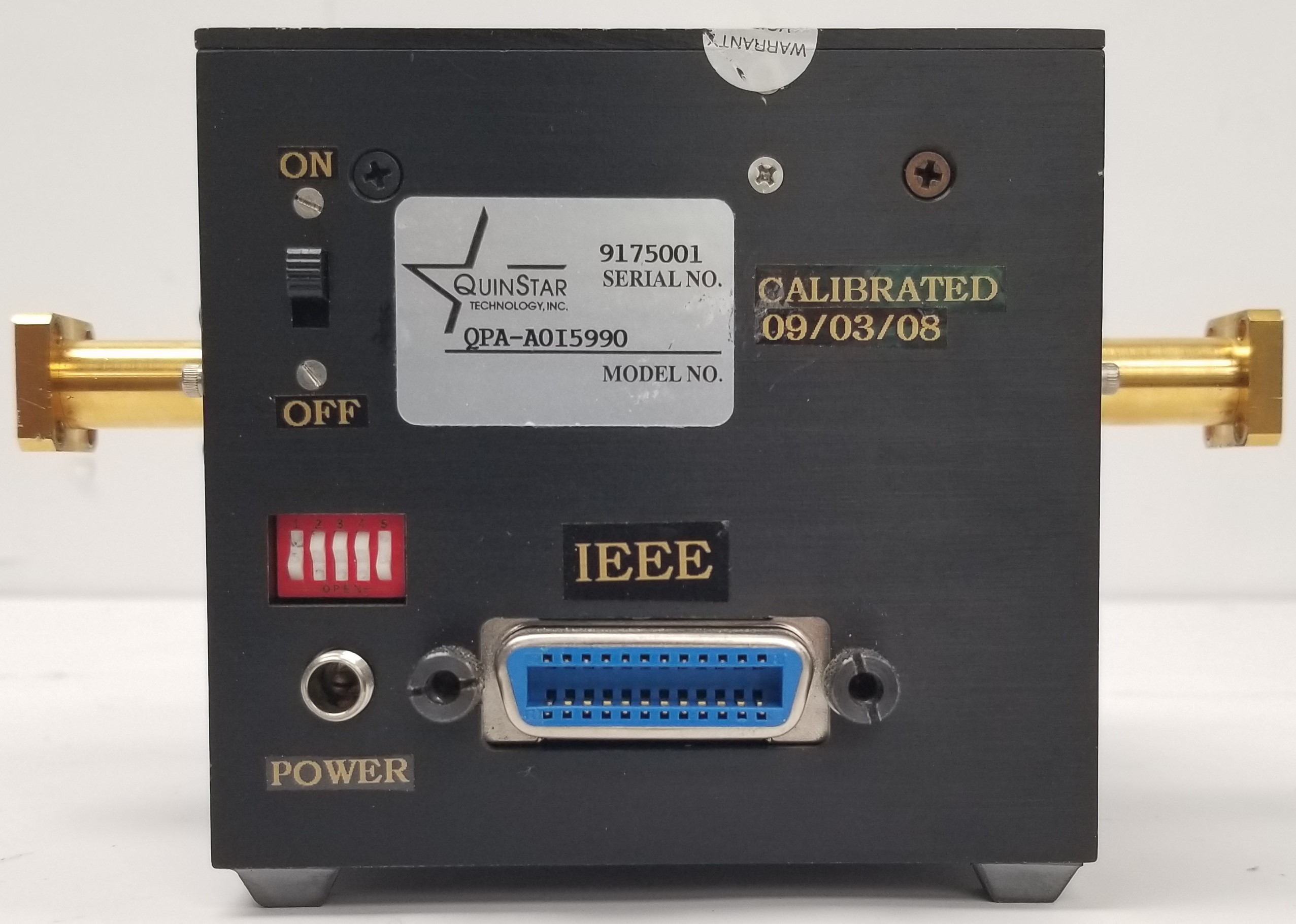

QuinStar Technology Inc. QPA-AOI599 WR22 (33-50GHz) Adjustable Programmable Vane Attenuator 0-60dB for PARTS/REPAIR
Original price was: $900.00.$720.00Current price is: $720.00.
1 in stock
CompareQuinStar Technology Inc. QPA-AOI599 WR22 (33-50GHz) Adjustable Programmable Vane Attenuator 0-60dB for PARTS/REPAIR. Unit powers on. Adjustment motor whines and shuts down. Display shows random attenuation values or scrambled hieroglyphics. Attenuator vane is visible inside waveguide assembly and appears O.K. No further testing performed. No manual, power supply (+18-24V.D.C.) or other accessories. Unit will have waveguide entries covered before storage in a plastic bag. PARTS/REPAIR.
Description
QuinStar QPA-AOI599 precision Motorized Programmable Attenuation control can be either manual or remote. The remote control uses a standard IEEE-488 interface. This attenuator’s small package incorporates both the electronic controller and microwave attenuator components. The unit operates with a single 24 volt DC source or with an optional AC adapter. Attenuation range is 0 – 60 dB in 0.1 dB steps with 0.05 dB steps over 0 – 20 dB. A digital readout on the front panel displays the current attenuation setting. This precision Motorized Programmable Attenuator is both highly accurate and highly reliable. Features: Compact size, High accuracy and reliability Digital readout, IEEE-488 interface Manual/motorized operation Applications: Designed by QuinStar Engineers for use in automated test equipment and in applications requiring remote power control.
PARTS/REPAIR
| Weight | 5 lbs |
|---|---|
| Dimensions | 10 × 8 × 6 in |
