Quantek 902P O₂/CO₂ Analyzer

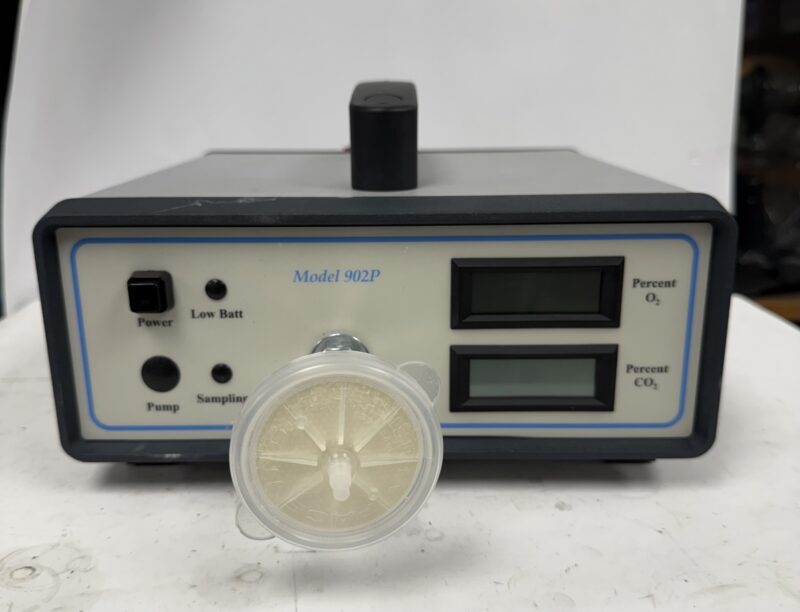

Quantek Model 902P O₂/CO₂ Analyzer

The Quantek Model 902P is a precision bench-top analyzer designed for continuous or spot-check monitoring of oxygen (O₂) and carbon dioxide (CO₂) levels in various applications, including gas blending, bioreactors, fermentation processes, and controlled atmosphere environments. It features a solid-state infrared CO₂ sensor and a long-life electrochemical O₂ sensor, ensuring accurate and reliable measurements.​

Key Features:

• Model: 902P

• Manufacturer: Quantek Instruments

• Measurement Ranges: Customizable from 0–100% O₂ and 0–1% up to 0–100% CO₂

• CO₂ Sensor: Solid-state infrared sensor with no moving parts; utilizes a 6th order polynomial equation for linearization

• O₂ Sensor: Heavy-duty electrochemical sensor with an expected lifetime of 5 years

• Optional Features: Internal miniature diaphragm sampling pump, analog outputs, battery operation, remote sensor mounting, data logger for PC or Mac

• Applications: Bioreactors, gas blending systems, fruit storage areas, fermentation, biofuel experiments, algae off-gas analysis, welding gases, controlled atmosphere rooms, carbon capture and storage, incubation experiments, cell culture experiments

• Power Requirements: 90–254 VAC, 47–63 Hz (universal input), 150 W maximum

• Dimensions: 12.2″ x 12.2″ x 3.5″ (31.1 x 31.1 x 8.9 cm)

• Weight: Approximately 7.5 lbs. (3.4 kg)​
