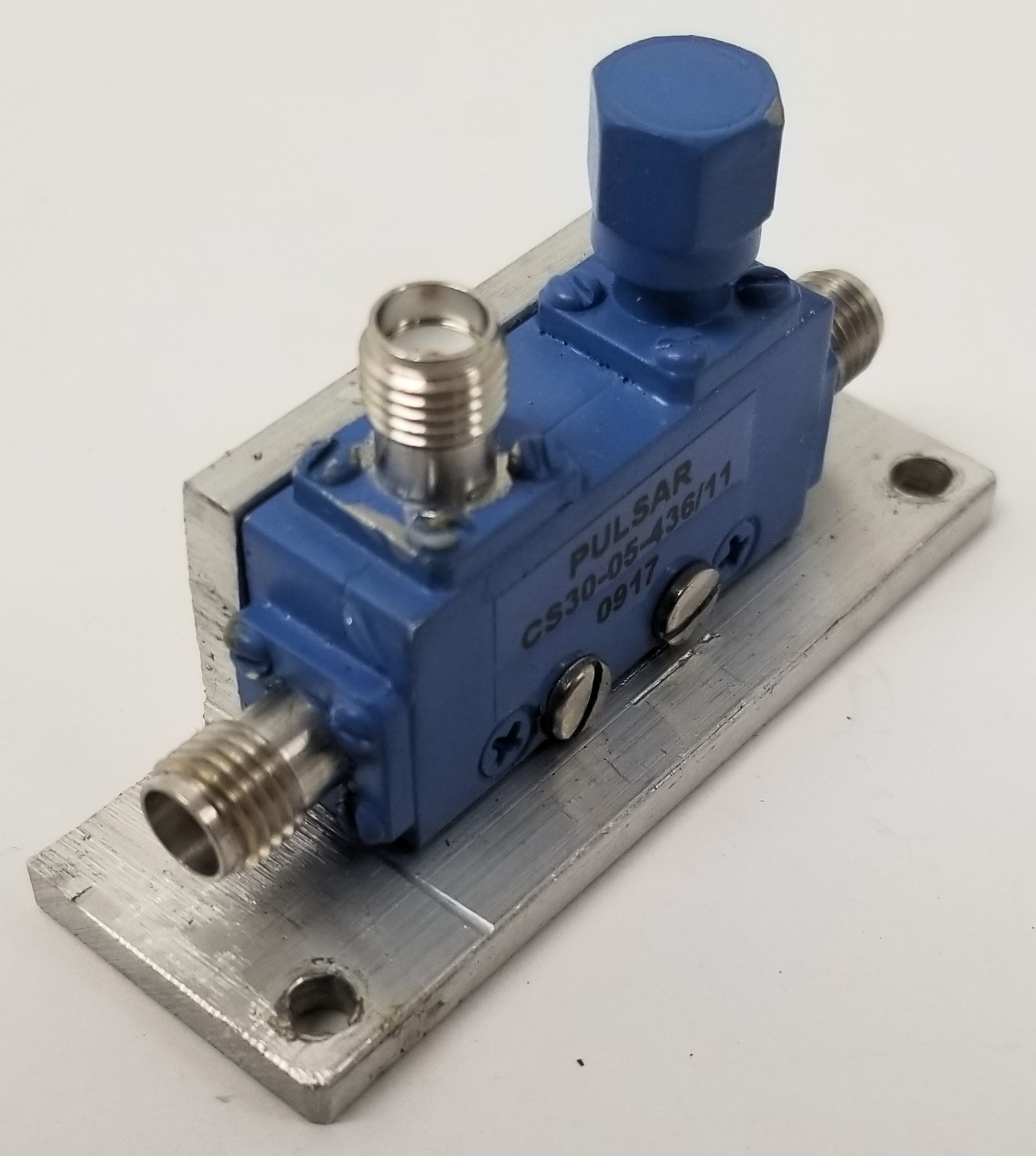

Pulsar Microwave CS30-05-436/11 2 to 4 GHz Directional Coupler

Pulsar Microwave CS30-05-436/11 2 to 4 GHz Directional Coupler. Very good condition. Carefully removed from operational system. No manual or other accessories. Purchaser responsible for proper installation and use. As shown.

From Pulsar:

• Frequency
  2 to 4 GHz
• Coupling
  30 dB
• Coupling Variation
  ±1.25 dB
• Amplitude Flatness
  0.75 dB
• Directivity
  22 dB
• Average Power
  50 W
• Peak Power
  3 kW
• Insertion Loss
  0.2 dB
• Impedance
  50 Ohms
• VSWR
  1.15:1
• Package Type
  Module with Connectors
• Connector
  SMA
• Grade
  Commercial/Military
