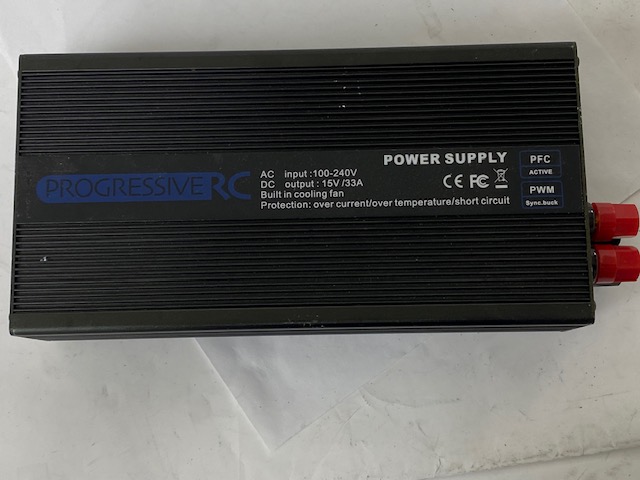

The PRC500 is a dedicated AC power supply designed to provide reliable DC power for RC battery chargers (e.g., iChargers) and similar equipment. It’s built to deliver high current output in a compact, low-noise package suited for bench or field charging setups.
📊 Specifications
| Feature | Specification |
|---|---|
| Output Power | 500 W total |
| Output Voltage | 15 V DC |
| Output Current | ~33 A continuous |
| Input Voltage | 100–240 V AC (suitable for worldwide mains) |
| Power Factor Correction | ≈0.98 (PFC) |
| Protections | Short circuit, over-current, over-voltage, over-temperature (forum spec) |
| Dimensions | ~232 × 108 × 50 mm (9.1 × 4.2 × 1.9″) |
| Weight | ~1300 g (≈2.9 lb) |
Usage Example:
With 33 A available at 15 V, the PRC500 can support high-current charging — for example, ~17 A on 6S LiPo packs and over 30 A on 3S packs — and has dual output connectors for powering two chargers simultaneously.
| Weight | 4 lbs |
|---|---|
| Dimensions | 12 × 9 × 3 in |
