Product Description

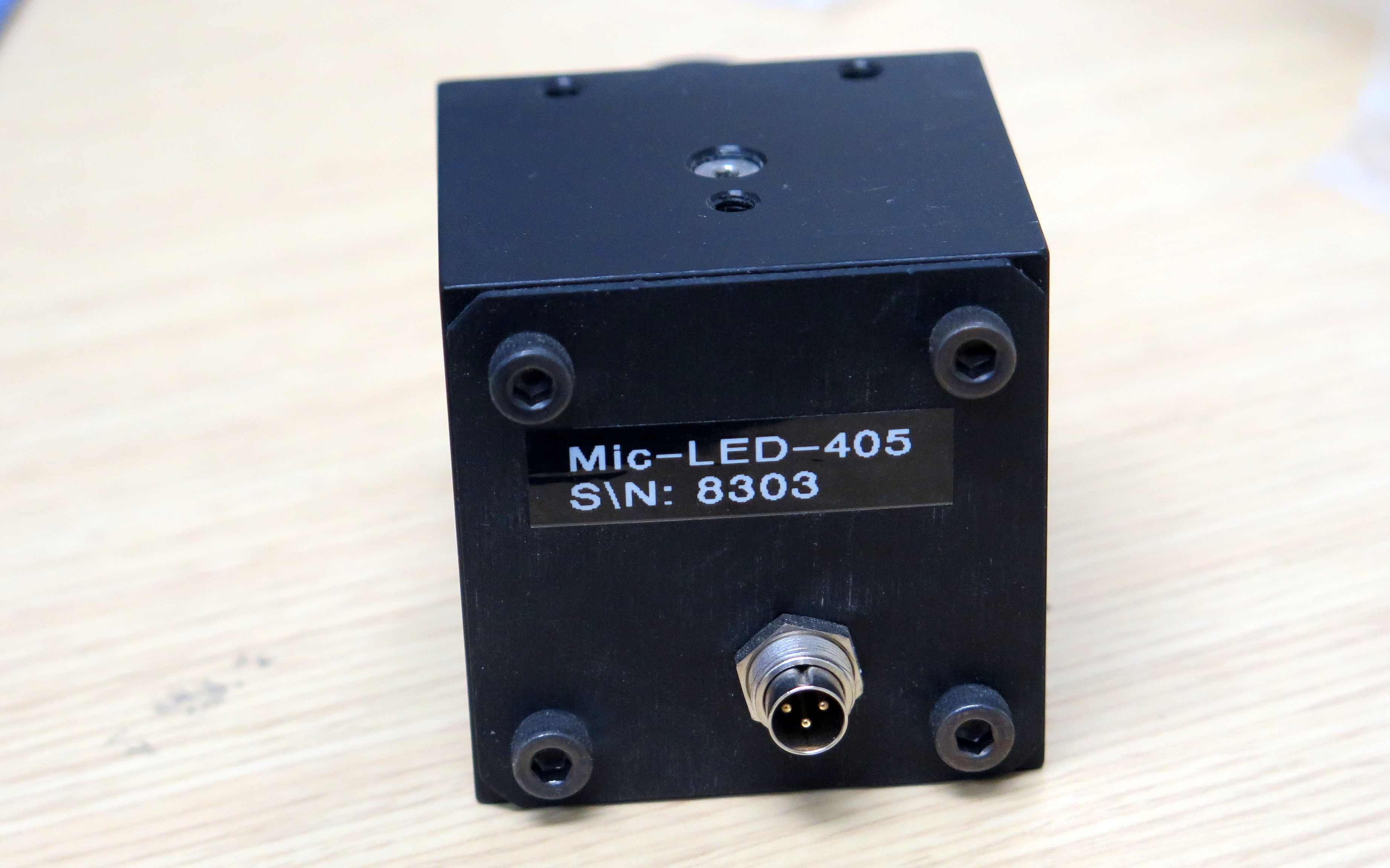

Prizmatix Mic-LED-405 Ultra High-Power LED Light Source – 405nm Excitation for Fluorescence Microscopy
This used Prizmatix Mic-LED-405 is a specialized ultra high-power LED light source designed specifically for fluorescence microscopy applications requiring 405nm excitation. Prizmatix is a leading developer and manufacturer of high-power LED illumination systems for scientific applications including fluorescence microscopy, optogenetics, neuroscience, and biomedical research .
About Prizmatix LED Systems
Prizmatix specializes in scientific applications of ultra high-power LED illumination systems . Their systems incorporate the latest technology in LED packaging that offer maximum versatility in light delivery and sensing . The Mic-LED-405 is part of their modular Microscope-LED Light Source products family, providing an affordable and expandable solution for fluorescence excitation in upright and inverted fluorescence microscopes .
The Mic-LED-405 is based on a single monolithic chip Ultra High Power LED (>32 Watt) that provides excellent homogenous illumination over the whole field of view . This makes it an effective replacement for lasers and lamps in many power demanding applications .
Key Specifications
| Specification | Details |
|---|---|
| Manufacturer | Prizmatix Ltd. |
| Model | Mic-LED-405 |
| Wavelength | 405 nm ±5 nm |
| Spectral Half Width | 15 nm |
| Collimated Optical Power | >1.5 Watt |
| Beam Aspect Ratio | 1:1.78 |
| LED Type | Single chip Ultra High Power LED (>32W) |
| Operation Modes | Constant current or chopping modes |
| Current Setting | Precise LED current setting by 10-turn dial |
| Trigger Input | Optically isolated TTL input for external triggering |
| Optional Controls | Analog input, USB interface to computer control |
| Microscope Compatibility | Adaptors for Olympus, Zeiss, Nikon, Leica |
| Applications | Fluorescence microscopy, optogenetics, photostimulation, uncaging |
Key Features & Benefits
-
Ultra High-Power Output: >1.5W collimated optical power provides exceptional brightness for demanding fluorescence applications
-
Homogenous Illumination: Single monolithic chip design ensures uniform illumination across the entire field of view
-
Modular Design: Part of Prizmatix’s modular OptiBlocks family, compatible with fiber couplers, liquid light guide couplers, beam combiners, and filter wheels
-
Versatile Control: Supports CW or TTL triggered operation with optional analog input and USB control
-
No Laser/Lamp Replacement: Long life LED eliminates need for frequent tube replacements
-
Speckle-Free: Ideal for microscopy applications requiring smooth illumination
-
Rapid Warm-Up: Ready for use almost immediately
Applications
This LED source is ideal for a wide range of fluorescence microscopy applications :
-
Fluorescence Microscopy: Excitation of fluorophores including Alexa 405, DyLight 405, and other 405nm-excited dyes
-
Whole Body Imaging: In-vivo imaging of small animals
-
Photoactivation & Uncaging: Precise light delivery for optogenetics and caged compound experiments
-
FRAP Studies: Fluorescence recovery after photobleaching
-
Inspection & Bioanalysis: Quality control and biological analysis
-
Machine Vision: Industrial inspection applications
Condition
SOLD AS IS
USED – SHOWS NORMAL LAB WEAR (scuffs, minor marks)
LED OUTPUT: NOT TESTED – POWER UNVERIFIED
TTL TRIGGER: NOT TESTED
NO OPTIBLOCKS, FIBER COUPLERS, OR ACCESSORIES INCLUDED (unless specified)
PICTURE MAY NOT MATCH PRODUCT
| Weight | 2.1 lbs |
|---|---|
| Dimensions | 6 × 6 × 6 in |
