Precision Pacific Labs Model P6 04 Table with

We pride ourselves in the quality and value of our optical tables.

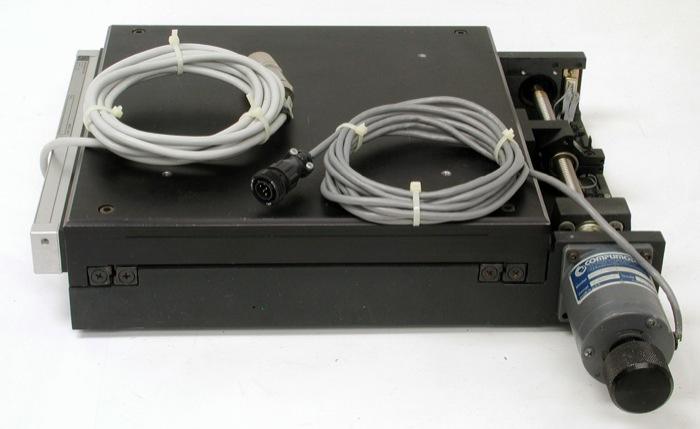

This is a complete Pacific Precision Laboratories (PPL) linear motorized stage, model P6-04, serial number 061. The stage is massive (40 pounds) and runs on THK cross-roller bearings. The stage includes an auxiliary mounting plate on the table top, and an externally mounted Heidenhein optical encoder.

Stage base dimensions � 12 by 15 inches
Stage height � 3.212 inches (including auxiliary plate)
Stage travel � 6.25 inches
Weight � 39.8 pounds
Lead screw diameter and pitch � 0.500 by 0.10 inches
Table surface � 12 by 12 inches, chamfered edges
Compumotor M57-83 installed (with manual control knob)
Heidenhein scale model LS403 � 001 R07F 170 installed.
Opto sensor limit switches (three � one home position?)

The stage is in superb condition. The only component missing is the aluminum dress cover for the leadscrew and limit switches.

***MPN Model P6 O4
***OEM Precision Pacific Laboratories (PPL)
***SKU*** DP548
