Praxsym PAMS-C Portable Attenuation Measurement System Kit 310-0010042-003 for PARTS/REPAIR

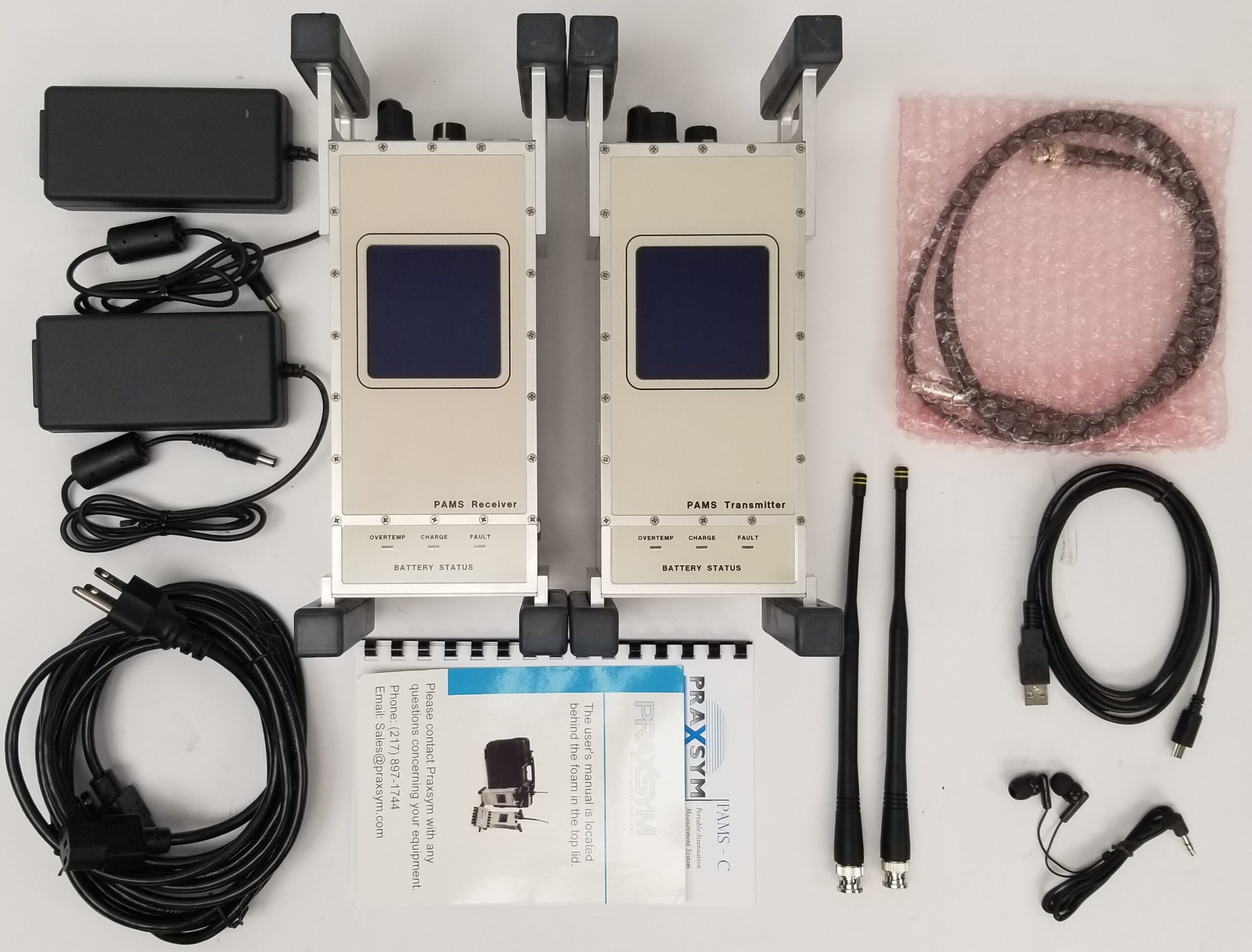

Praxsym PAMS-C Portable Attenuation Measurement System Kit 310-0010042-003 for PARTS/REPAIR. Very good condition. Both units (Receiver and Transmitter) are inoperative – will not power on. Power adapters and Batteries verified O.K. (*Battery condition unknown and may need replacement).  No further testing performed. Offered as PARTS/REPAIR. Kit includes: Transmitter unit, Receiver Unit, Manual, Power adapters (charge/operate), Antennas, and Calibration Cable. Please review the gallery images. Purchaser responsible for proper, legal use. As shown. For PARTS/REPAIR.

Measures Path Loss,
Signal Strength Shielding Effectiveness
864-936 Mhz
Path Loss Accuracy: +/- 1 dB Typ.
Receiver Range: 0 To -120 dBm
Transmitter Power: -30 To +30 dBm
Synthesized: 1 MHz And 10 KHz Step Size
AC Power Or Battery Operation

PAMS-C is a user-friendly, transmitter and receiver
system that measures shielding effectiveness of RF shielded
enclosures. Lightweight and compact, each unit measures
approximately 12″ x 5″ x 5″ and weighs 5.5 lbs., making
PAMS-C ideally suited to field measurement tasks. Rugged
construction ensures instrument survivability in a field
test environment.
PAMS-C incorporates a self-calibrating architecture that
provides for ease of use. It requires only minimal operator
instruction for error-free operation. Its backlit LCD output
displays shielding effectiveness, battery status, and other
operating parameters.
PAMS-C allows the user to set a minimum shield level
threshold. While sniffing around the enclosure, a tone
will sound in the headphones should the shield level drop
below the threshold. The pitch of the tone varies based
on the measured shield level’s distance from the set
threshold value.
A USB interface is included on both the transmitter and
receiver. This allows for serial control of selected func
tions and parameters. The PAMS-C receiver also includes a
Spectrum Monitor mode, which displays ambient RF signals
present within the test environment.
The PAMS-C receiver and transmitter are synthesized, with a
minimum tuning step size of 100 kHz. Both units are battery
powered, and can be operated in an AC mode when connected to
the external battery charger. Normal battery operation time is 5
hours for the receiver, and 2 hours for the transmitter. A complete
charge cycle is
completed in approximately 2 hours.
The receiver provides accurate level detection for signals in the
range of –120 dBm to 0 dBm. Typical accuracy is +/-1.0 dB. An
internal limiter provides protection to the receiver in the unlikely
event that the receiver and transmitter are connected together.
The receiver has a DC bias voltage on the connector, which may be
used to power an external device such as a switch.
The transmitter provides a maximum output power of
+30 dBm (1 watt). Output power can be adjusted in 1, 2, or 5 dB
steps down to –30 dBm. Internal ALC circuitry maintains output
level accuracy. The output of the
transmitter is fully protected against damage.

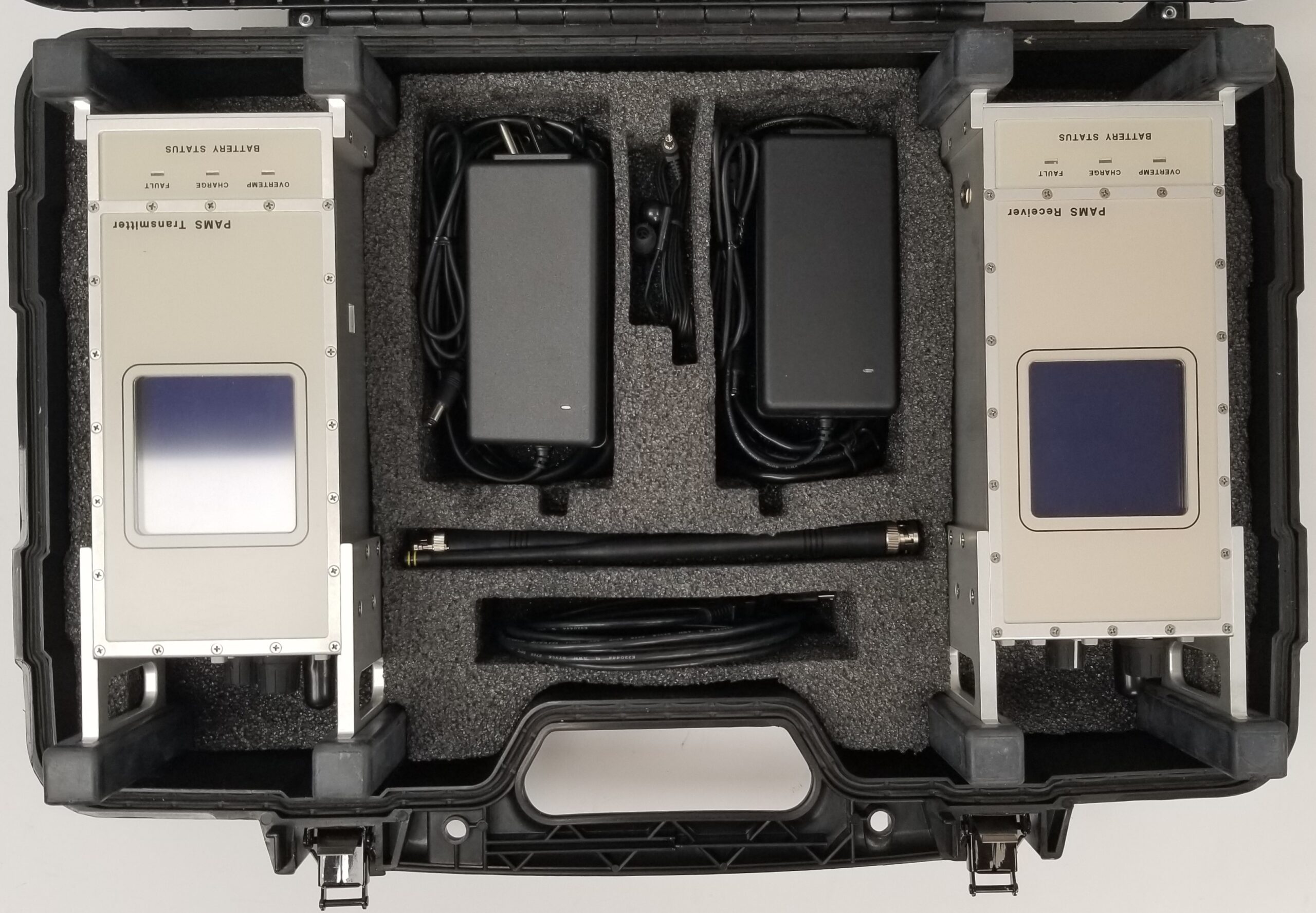

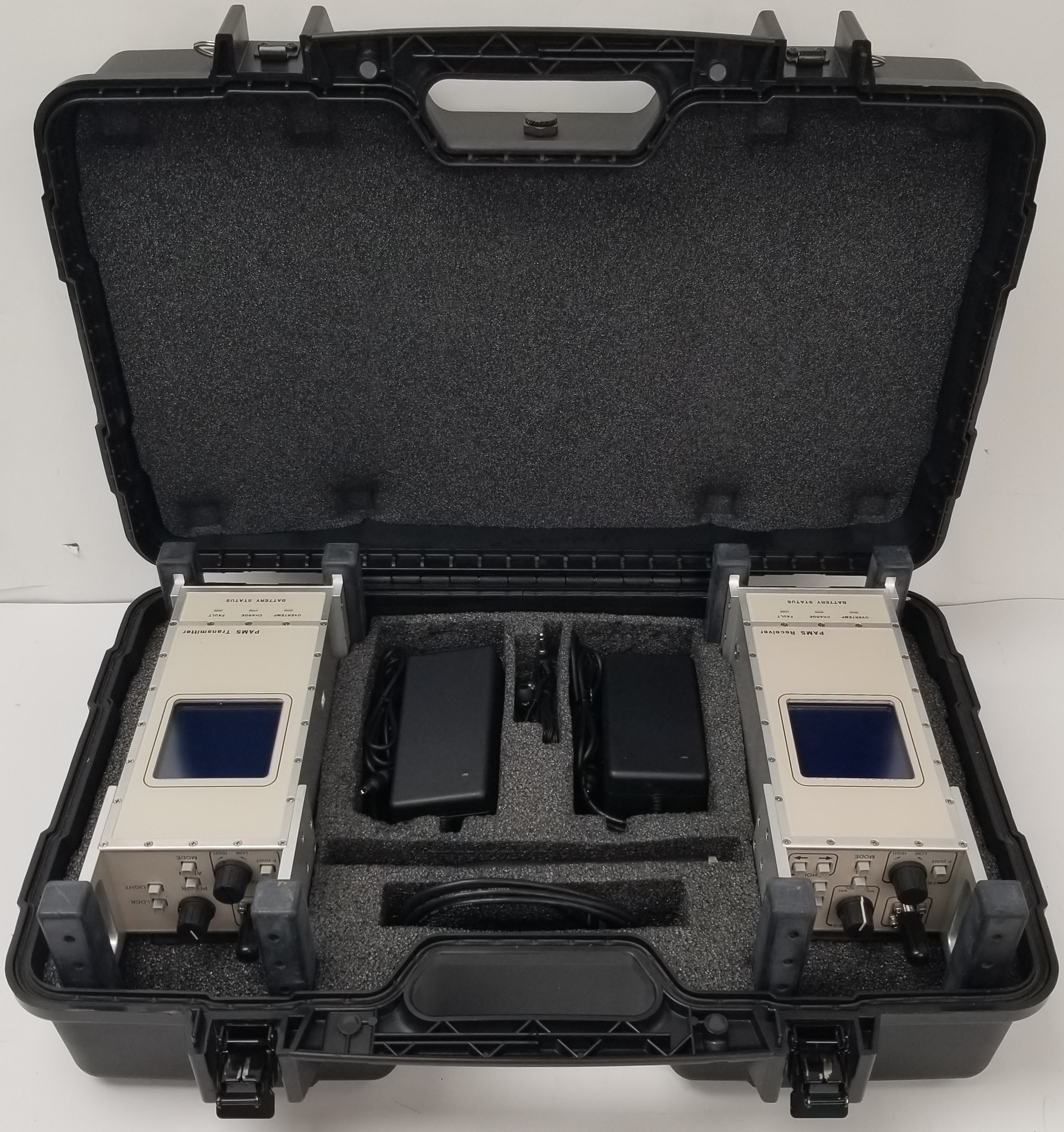

The PAMS-C System includes transmitter, receiver,
batteries, 2 portable antennas, chargers, manual and
a rugged transit case.

Specifications – PAMS-C Receiver
Frequency Band 864-936 MHz
Tuning Step Size 1 MHz and 100 kHz
Operating Modes Signal Strength, Shield Level, Spectrum Monitor
IF Bandwidth 20 kHz nominal
1st IF 90 MHz
2nd IF 455 kHz
RF Input Connector BNC female
RF Input Impedance 50 ohms nominal
Input Preselection 80 MHz 1 dB bandwidth
Signal Level Relative Accuracy +/- 1.0 dB (-120 dBm to 0 dBm)
Absolute Level Accuracy +/- 2.0 dB (-120 dBm to 0 dBm)
Maximum Safe Input Level +30 dBm (1 watt) minimum
Battery Operation 5 hours minimum at full charge
Batteries Nickel Cadmium
AC/Charger Operation 95-265VAC, 48-65 Hz
Charge Time 120 minutes typical

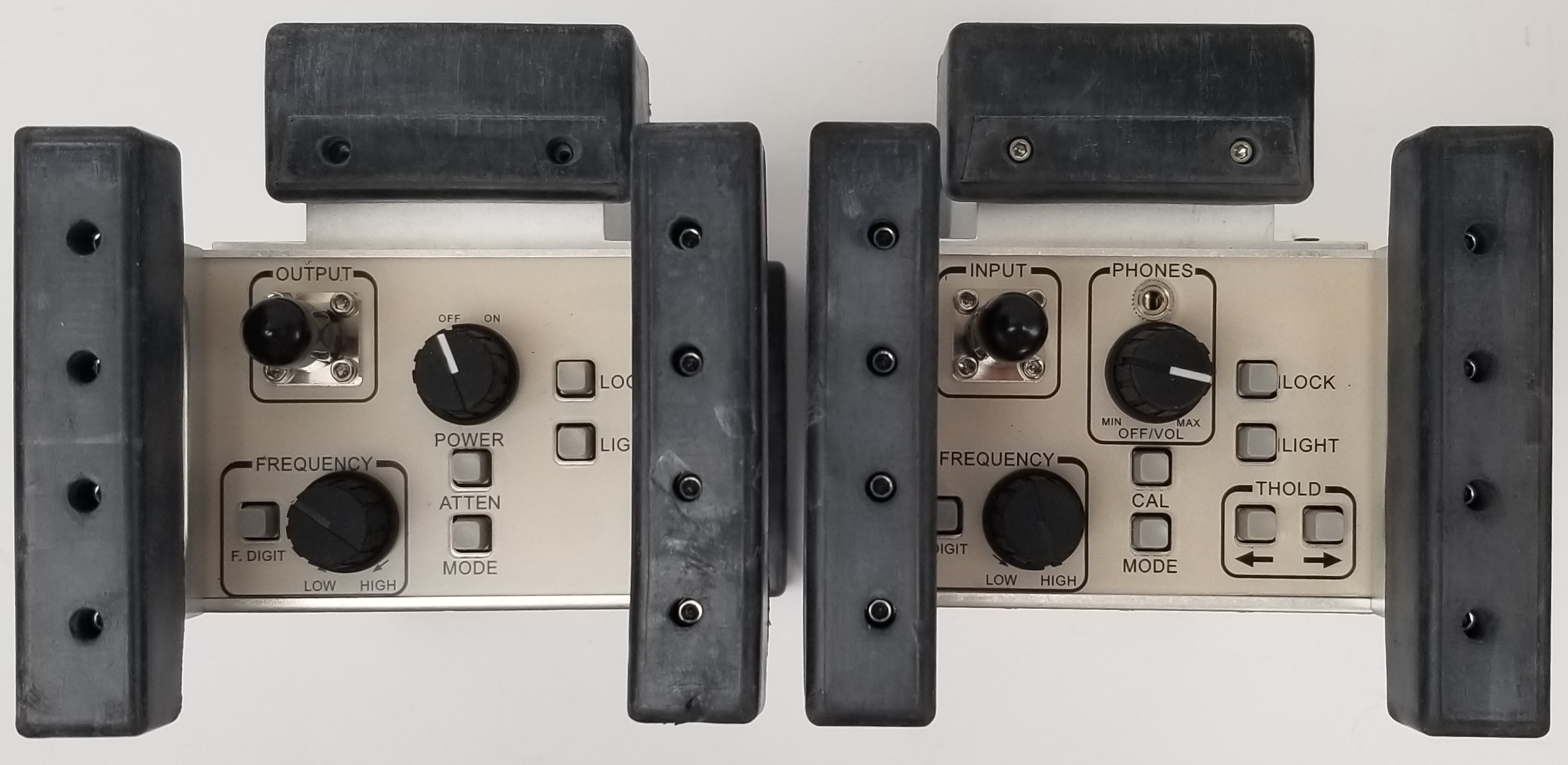

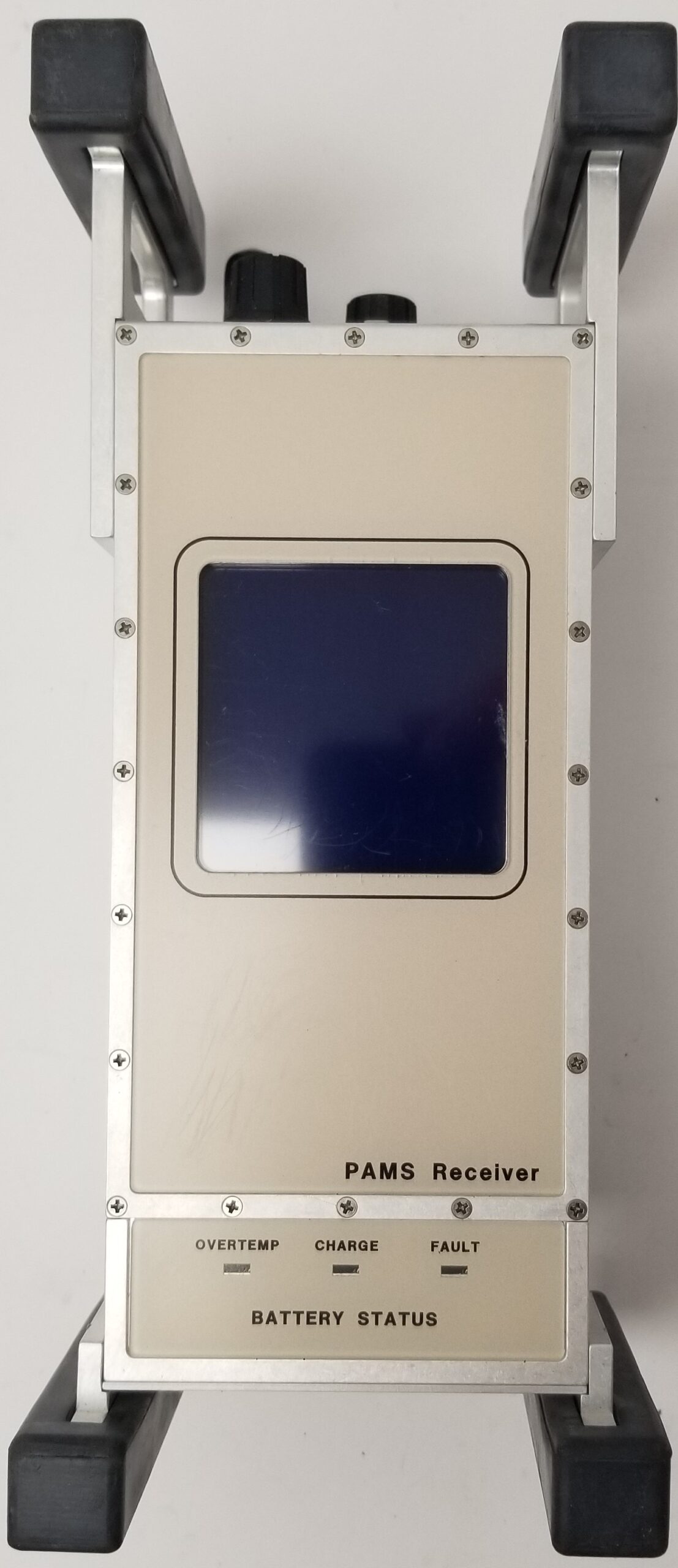

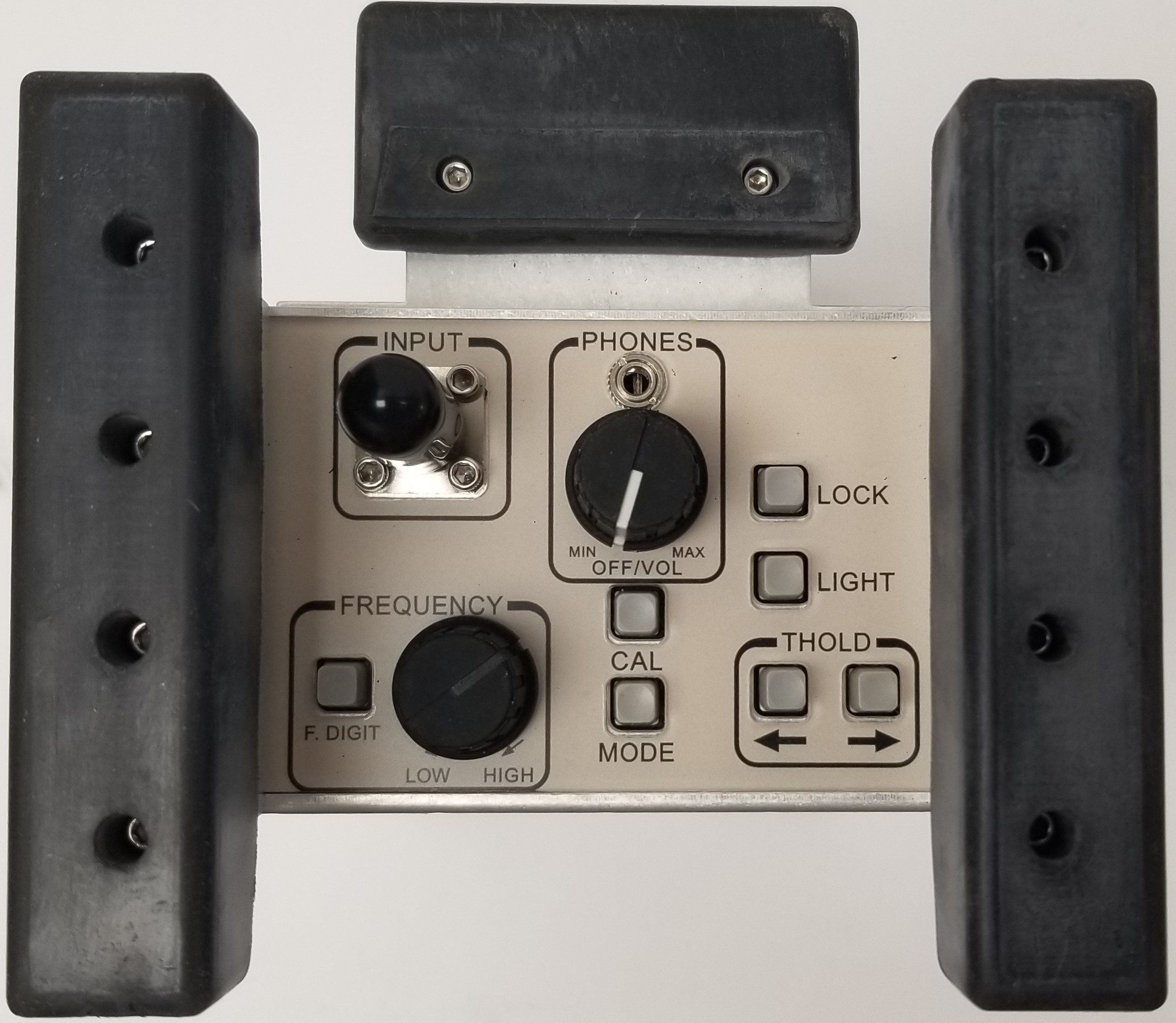

Controls On/Off/Volume, Frequency Tune (frequency tune) F.DIGIT (adjusts step
size),THOLD (sets threshold level for go/no-go testing), LIGHT (backlights
LCD display), CAL (used to provide shielding reference level
normalization), MODE (scrolls through the modes)
LED Indicators Battery Overtemp, Battery Charge, Battery Fault
LCD Displayed Functions Frequency, Battery Level, Mode (Signal Strength, Shield Level, Spectrum
Monitor), Threshold Level Set, CAL Status, LOCK Status, Freq Adjust
Status (1 MHz or 100 kHz)
Weight 5.5 lbs nominal
Case Size 11.7″ H x 5.1″ D x 4.9″ W
Standard Accessories 32 ohm headphones, Battery charger/AC power pack, manual, 1/4 wave vertical antenna

Specifications – PAMS-C Transmitter
Frequency Band
864-936 MHz
Tuning Step Size
Maximum Output Power
1 MHz and 100 kHz
+30 dBm minimum
Output Power Control
Output Level Accuracy
1, 2 or 5 dB steps from –30 to +30 dBm
+/1.0 dB maximum
Harmonics
Output Impedance -60 dBc maximum
50 ohms nominal
Load VSWR
RF Output Connector
Safe operation into infinite VSWR (isolator protected)
BNC female
Battery Operation
Batteries:
2 hours minimum at full charge
Nickel Cadmium
AC/Charger Operation
Charge Time
95-265VAC, 48-65 Hz
120 minutes typical
Controls

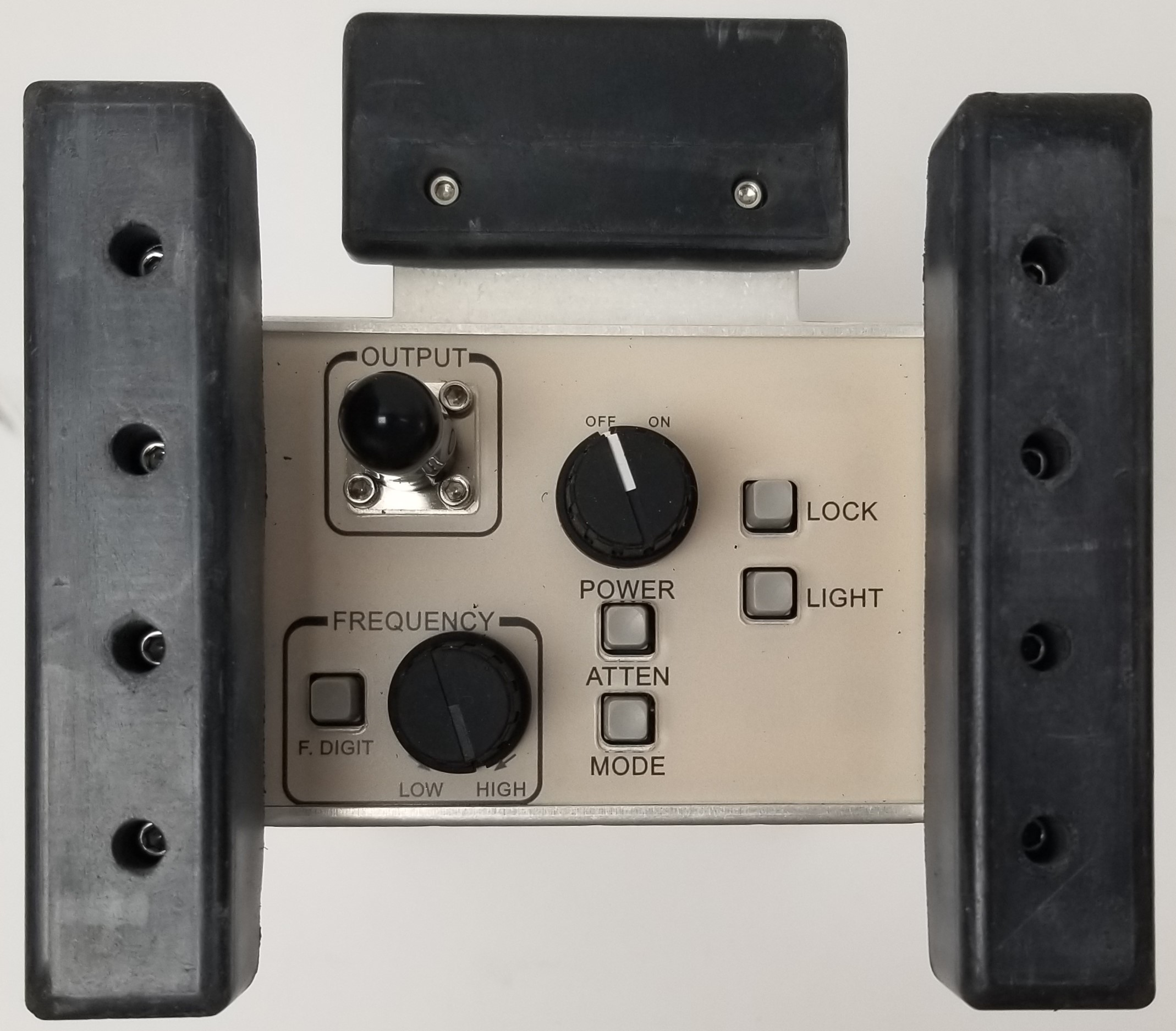

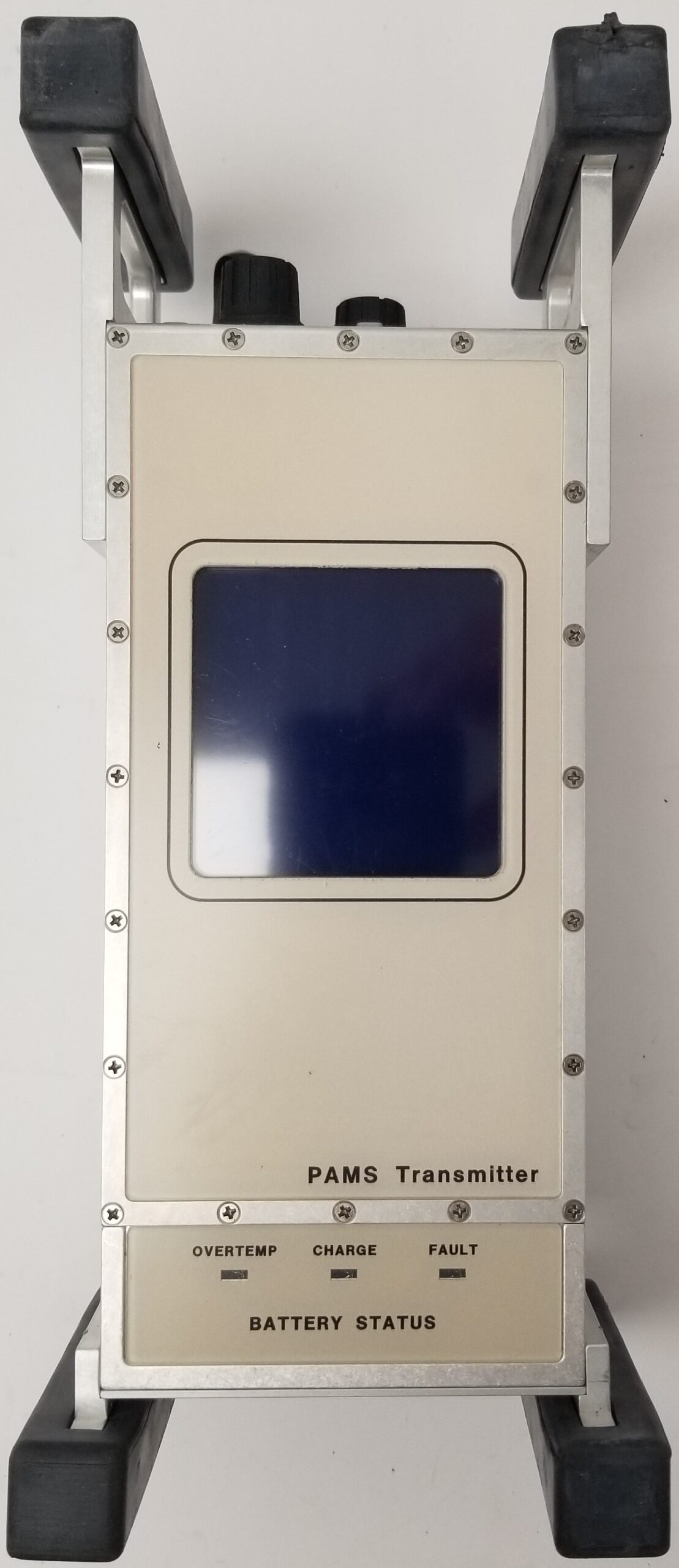

On/Off, Frequency (controls both frequency tuning and power
output level), F.DIGIT (selects adjustment increment for both frequency
tuning and output level), LIGHT (backlights LCD display), LOCK (locks out
all controls), ATTEN (toggles between 0 and 60 dB)
LED Indicators
LCD Displayed Functions
Battery Overtemp, Battery Charge, Battery Fault
Frequency, Battery Level, Output Level, LOCK Status, Freq Adjust Status
(1 MHz or 100 kHz), Power Adjust (1, 2 or 5 dB)
Weight
5.5 pounds nominal
Case Size
Standard Accessories
11.7″ H x 5.1″ D x 4.9″ W
Battery charger/AC power pack, manual, 1/4 wave vertical antenna

For PARTS/REPAIR
