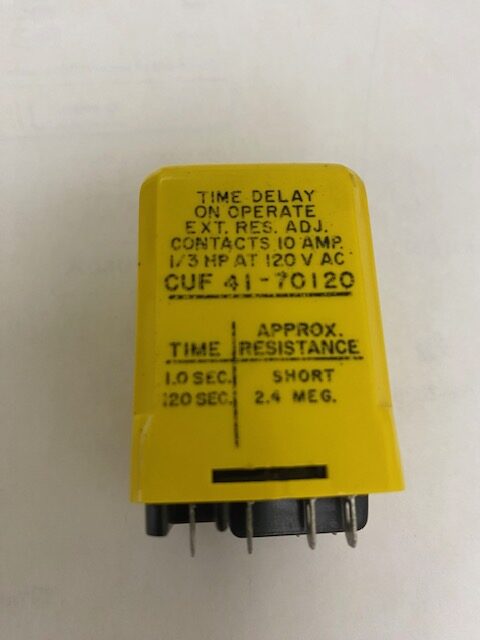

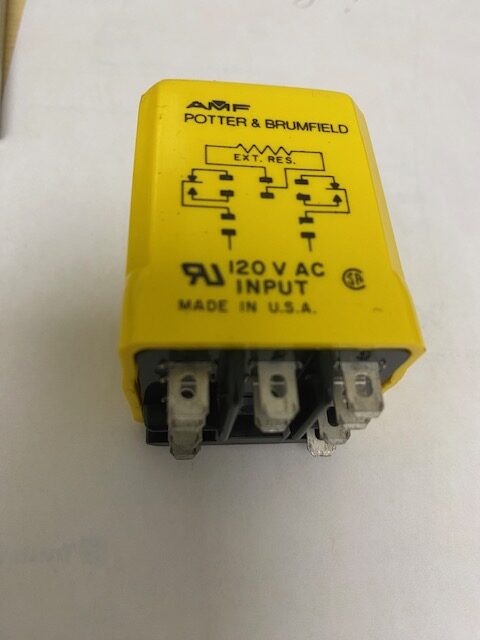

Potter & Brumfield CUF 41-70120 Time Delay Relay

📋 Key Specifications

• Type: Mechanical, on‑delay time‑delay relay

• Contacts: DPDT (2 Form C), rated 10 A @ 277 VAC (or 30 VDC)

• Coil Voltage: 120 VAC

• Delay Range: 1 s to 120 s, adjusted via external resistor

• Timing Accuracy: ±3% repeatability

• Operating Temperature: –10 °C to +55 °C

• Termination: 0.187″ quick-connect terminals; socket-mountable octal base

• Size: Approx. 39 × 36 × 56 mm (L × W × H)

• Lifecycle: ~10 million mechanical operations
