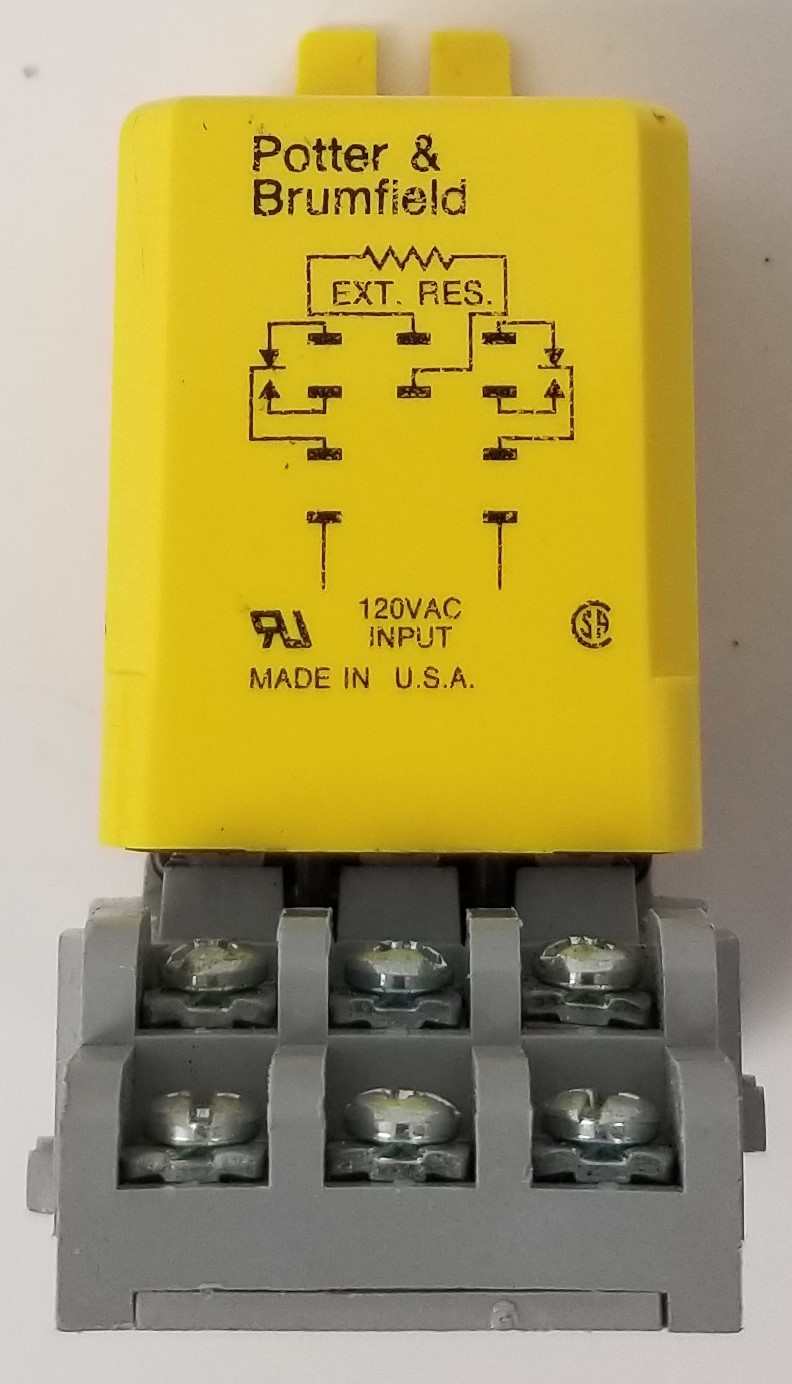

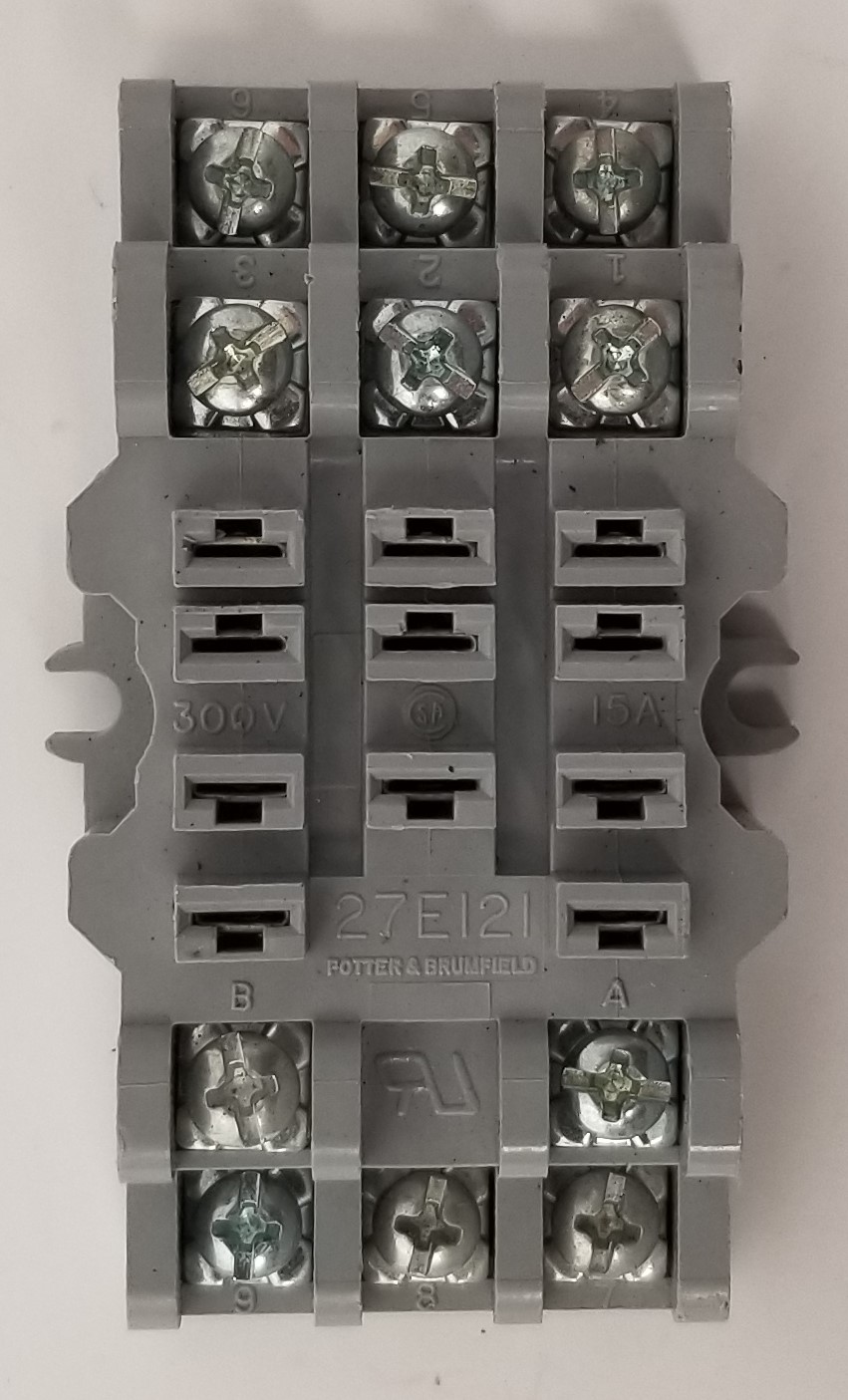

Potter and Brumfield CUF-42-70180 Time Delay On Relay 1-180 seconds with Screw Terminal Socket

Potter and Brumfield CUF-42-70180 Time Delay On (TDO) Relay 1-180 seconds with socket. 120 Volt A.C. operation with time adjustment via external resistor (not included). No manual. As shown.

Product Description:

The Potter and Brumfield CUF-42-70180 Time Delay On Relay is a dependable and versatile timing control device designed to provide an easy to adjust time delay range of 1 to 180 seconds. Ideal for industrial automation, HVAC systems, process control, and electrical panel applications, this time delay relay helps control circuits based on customizable time intervals.

Engineered with durability and accuracy, the CUF-42-70180 relay ensures reliable operation even in demanding environments. Its compact design and simple user adjustable settings make it an excellent choice for both new installations and retrofit projects.

Key Features:

• ⏱️ Adjustable Time Delay: 1 to 180 Seconds via external resistor
• ⚡ Reliable Time Delay On Operation
• 🔧 Compact and Easy-to-Mount Design
• 🔌 Ideal for Control Panels and Automation Systems
• 🛠️ Potter & Brumfield Quality Engineering

Applications:

• Industrial Automation Systems
• HVAC Control Panels
• Lighting Control Systems
• Motor Start Delay Circuits
• Pump and Fan Delay Start Applications
• Process Control Equipment

Specifications:

• Model: CUF-42-70180
• Function: Time Delay On (TDO)
• Time Delay Range: 1 – 180 Seconds (Adjustable via external resistor)
• Mounting Type: Socket
• Operating Voltage: 120 V.A.C.
• Contact Configuration: DPDT
• Brand: Potter & Brumfield (A division of TE Connectivity)
