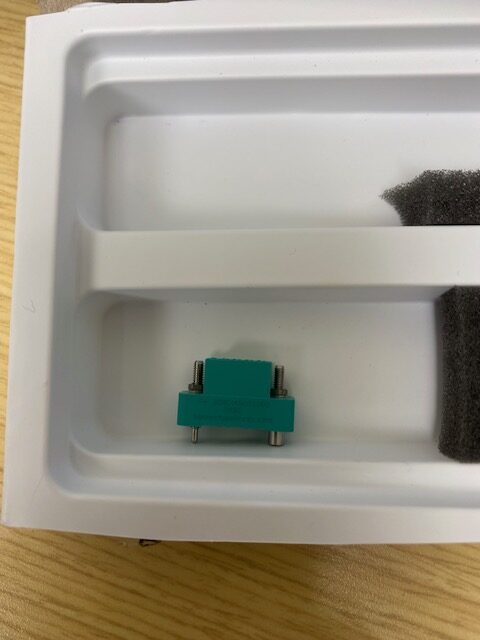

Positronic SGMC14S0T0000 Connector

📄 Technical Summary (from Positronic / distributor datasheets)

• Manufacturer/Series: Amphenol Positronic, SGMC series (Mini‑Rectangular MIL‑Spec)

• Part number: SGMC14S0T0000

• Configuration: 14‑position housing for female size‑22 contacts, 3 rows, free‑hanging (inline) backplane mount

• Pitch: 0.094″ (≈2.39 mm)

• Color/Material: Green insulator (DAP), aluminum shell (UL94V‑0)

• Electrical:

  • Rated working voltage: 250 V rms, proof to 2200 V

  • Contact resistance: max 4 mΩ

  • Contact current rating: 5 A each

• Mechanical:

  • 3 rows, 14 positions

  • Metal clip retention, mating guide

  • 1000 mating cycles

• Environmental: Operates from –55 °C to +135 °C, RoHS‑compliant, MIL‑DTL‑28748 & SAE AS39029 qualified
