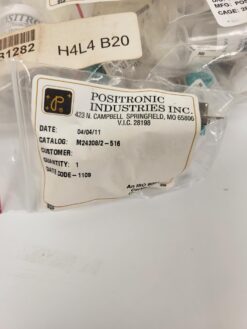

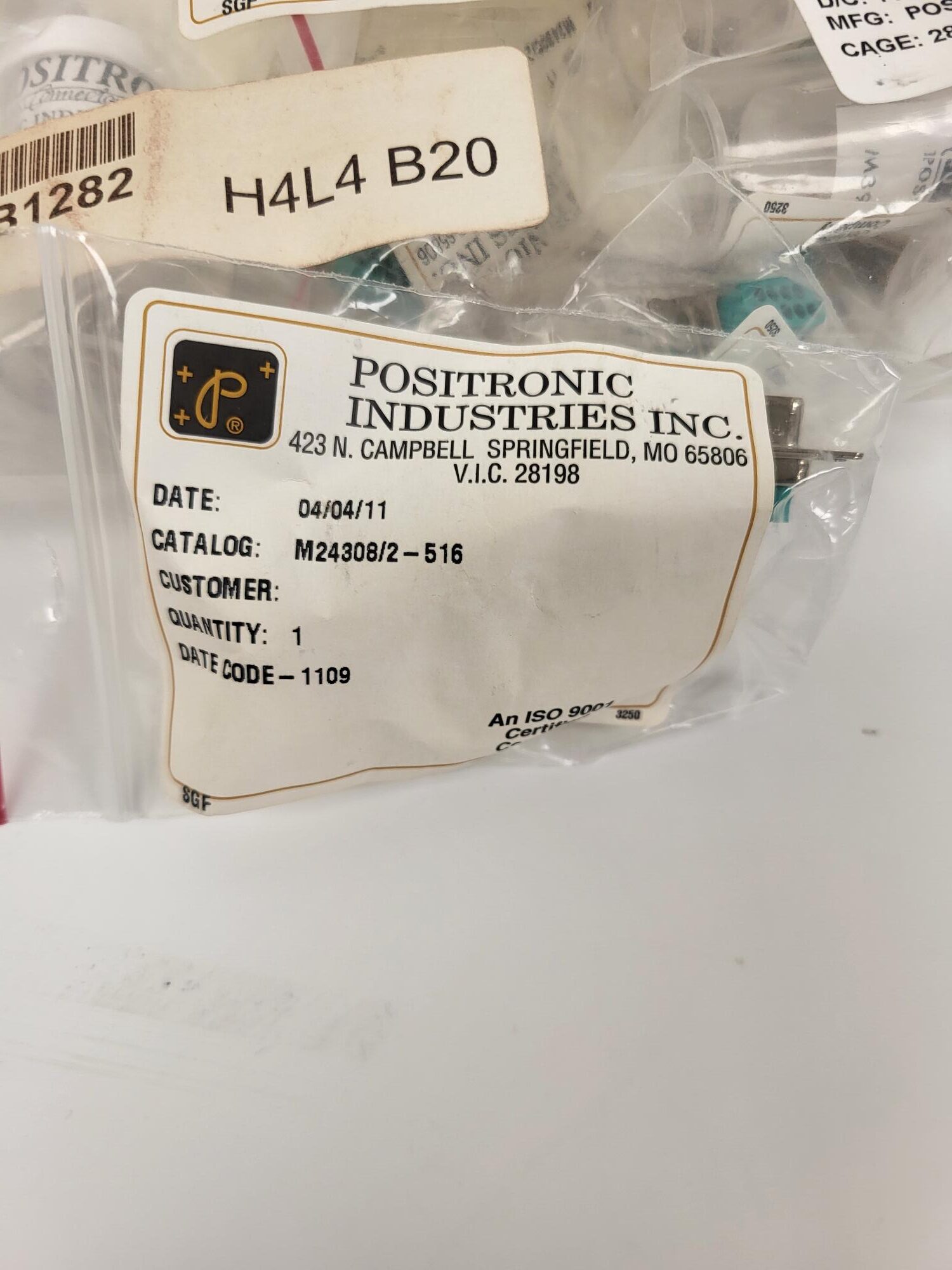

Positronic M24308/2-516 Connector with Pins

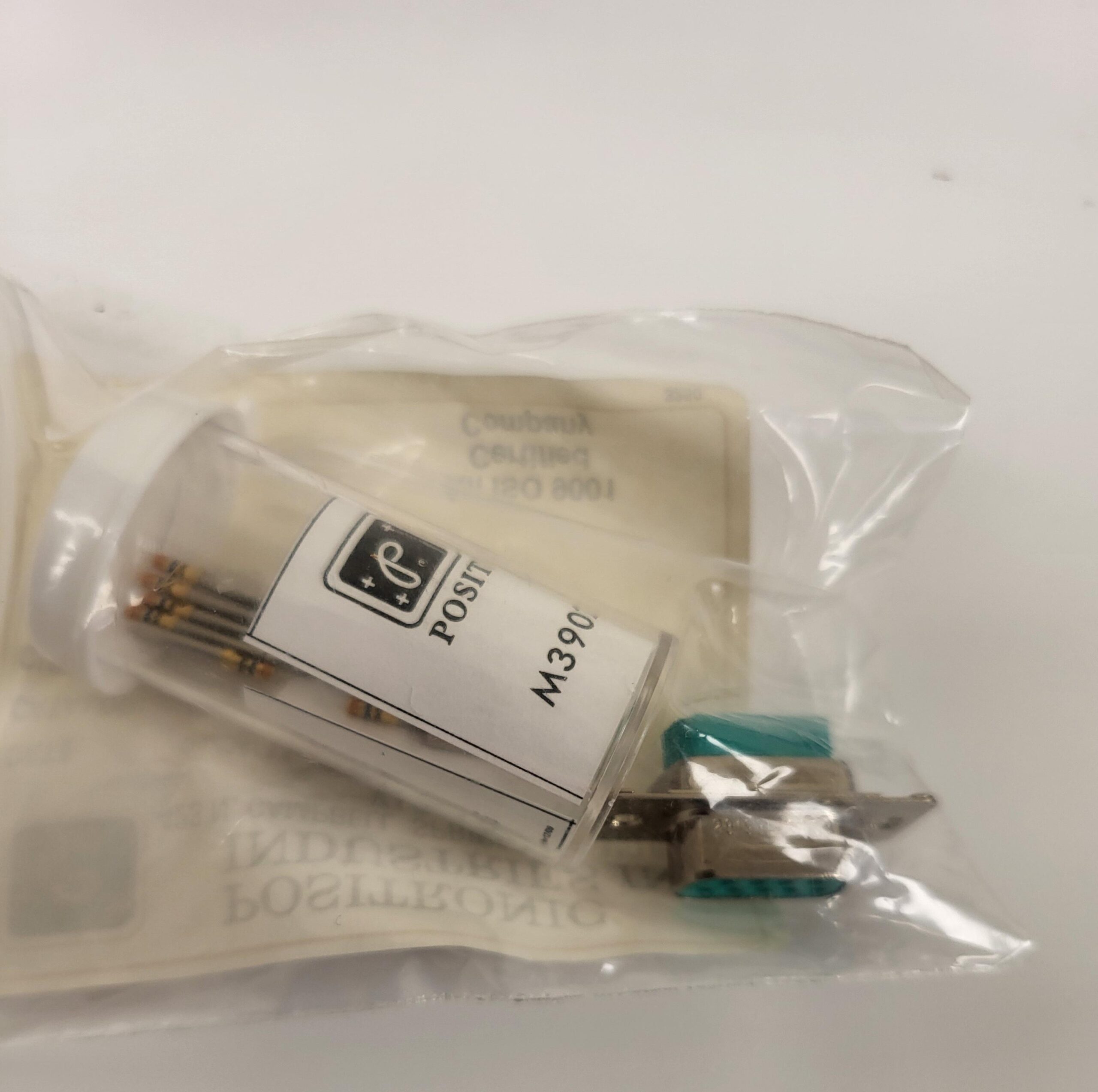

• Positronic M24308/2-516 Connector with Pins

• A 9‑position MIL‑SPEC D‑Sub receptacle (female/socket) built to MIL‑DTL‑24308 (previously MIL‑C‑24308) standards

• Designed for rugged applications—temperature rating from –55 °C to +125 °C

• Insert material is flame-retardant thermoplastic, ideal for military, aerospace, and industrial environments

🏗️ Physical & Electrical Specs

• Style: Panel-mount receptacle (wall mount) with crimp termination for 20–26 AWG wire

• Shell size: Size 1 (DE/E shell)—the standard 9‑pin configuration

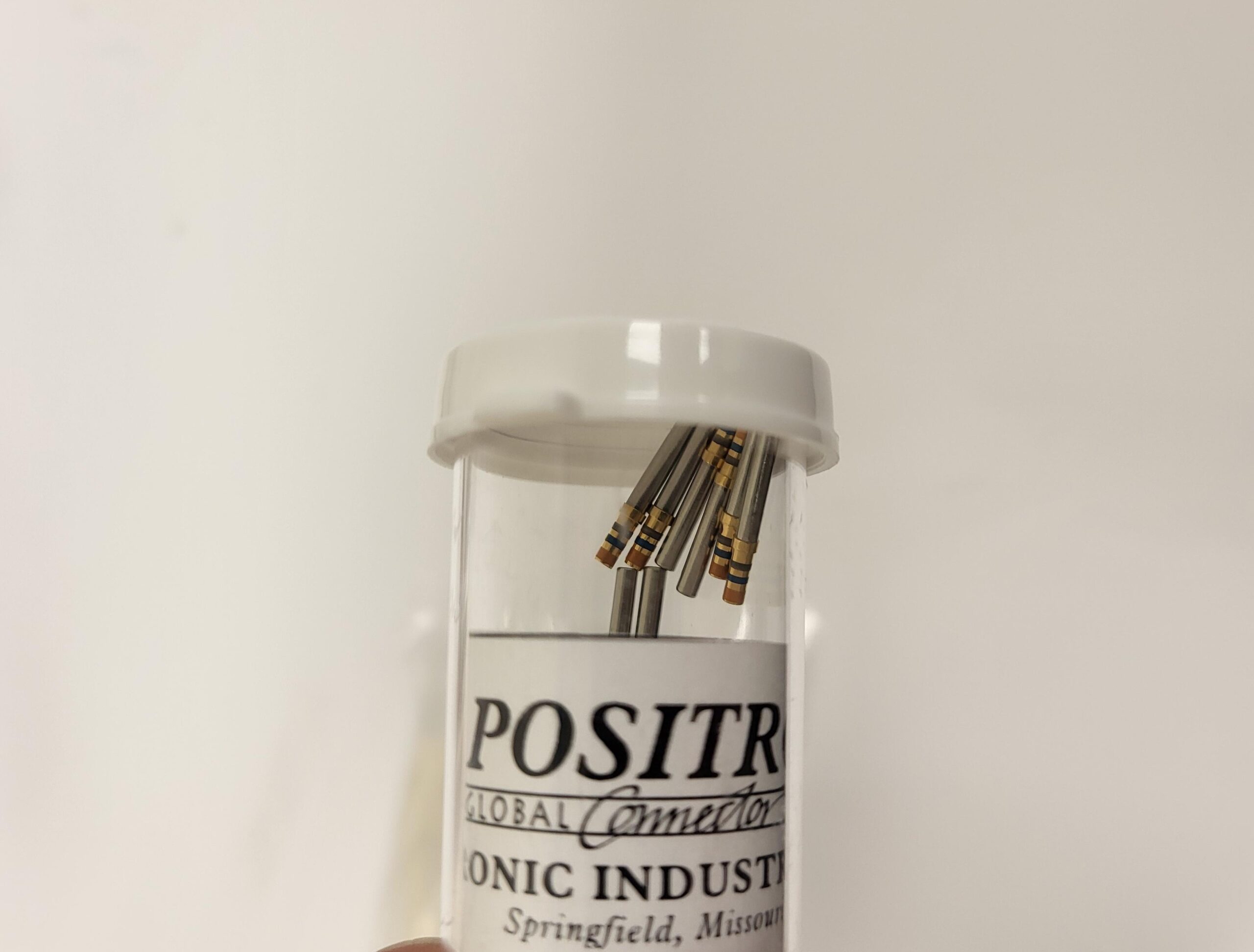

• Contacts: Precision-machined copper alloy, gold-plated — qualified under SAE AS39029 spec for reliable performance

• Current rating: Typically 7.5 A per contact, ample for signal and low-power applications
