PICO 30 AC 28S power supply module

Product Description

PICO 30 AC 28S – Miniature Encapsulated AC-DC Power Supply Module

A compact, high-reliability AC-DC power supply module manufactured by PICO Electronics, a leader in miniature, ruggedized power conversion solutions for industrial, military, and aerospace applications. The PICO 30 AC 28S delivers 30 watts of regulated DC power in an ultra-small, fully encapsulated package designed to perform in the harshest environments.

🔧 Key Specifications & Details:

• Manufacturer: PICO Electronics

• Model: 30 AC 28S

• Power Rating: 30 Watts

• Output Voltage: +28 VDC (regulated)

• Input Voltage: 115 VAC / 220 VAC (typical, 47-440 Hz)

• Form Factor: Miniature encapsulated module – ultra-compact footprint

• Construction: Full epoxy encapsulation – shock/vibration resistant, moisture-proof

• Isolation: Input-to-output isolation (typically 500-1000 VDC)

• Protections: Built-in short circuit and overload protection

• Operating Temp: Wide industrial/military temperature range (-55°C to +85°C typical)

• Mounting: PCB-mount pins or chassis-mountable with optional bracket

⚠️ Condition & Notes:

• Condition: SOLD AS IS – UNTESTED

• Origin: Surplus from industrial control system, military avionics, or telecommunications equipment

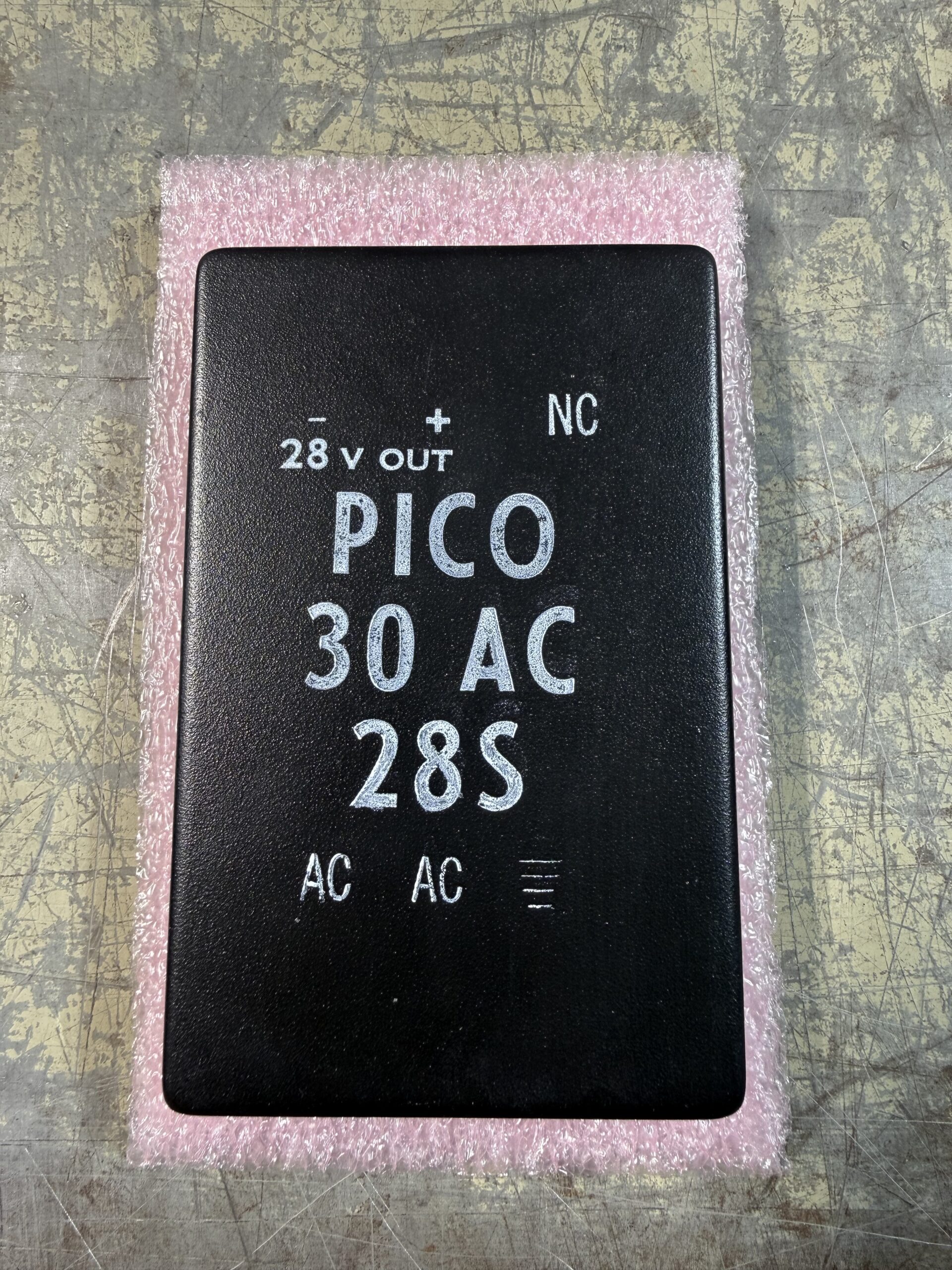

• Visual: Module appears intact – no cracks in encapsulation, pins are straight and clean. Minor handling marks.

• Critical Disclaimer: No datasheet, wiring diagram, or performance specifications included. Exact input configuration and pinout are unknown.

• Note: PICO modules are custom/manufacturer-programmed – this unit is configured for 28VDC output at 30W capacity.

🛠️ Potential Applications:

• Industrial Control Systems: Dedicated 28V power for sensors, actuators, or PLC I/O

• Military/Avionics: Drop-in replacement or spare for ruggedized embedded systems

• Telecommunications: Powering remote radios, fiber optic equipment, or backup systems

• Test & Measurement: Benchtop or embedded DC power source for instrumentation

• Custom Embedded Design: Integration into OEM equipment requiring compact, reliable AC-DC conversion

• Component Salvage: Source of high-quality magnetics, capacitors, and power semiconductors
