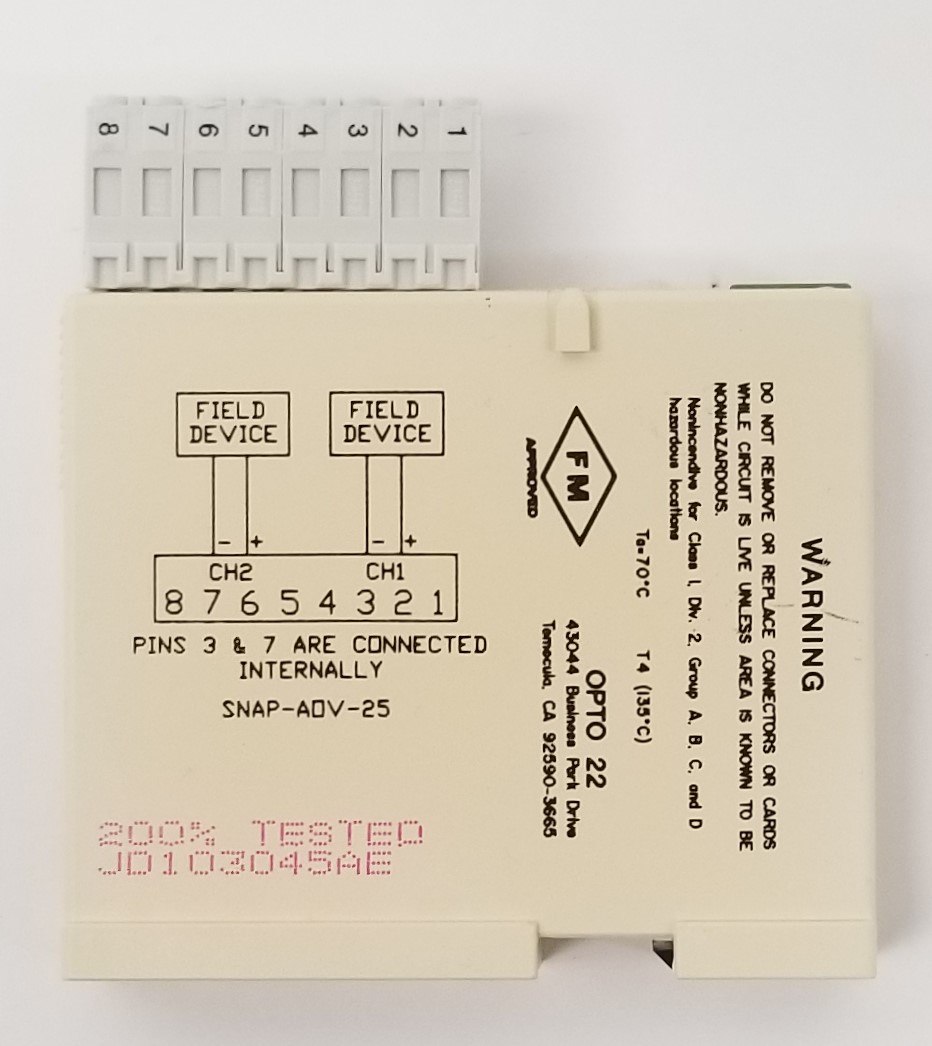

Opto 22 SNAP-AOV-25 Dual-Channel Analog Output Module

The Opto 22 SNAP-AOV-25 is a dual-channel analog output module designed for precise voltage control in industrial applications. It delivers two independently configurable outputs, each providing a voltage range of 0 to 10 VDC. Compatible with Opto 22’s SNAP PAC system and other SNAP I/O racks, this module offers reliable performance for process automation, motion control, and other applications requiring accurate voltage control.

Key Specifications:

• Manufacturer: Opto 22
• Model Number: SNAP-AOV-25
• Type: Analog Output Module
• Channels: 2 (independent)
• Output Voltage Range: 0 to 10 VDC
• Output Resolution: 12-bit
• Accuracy: ±0.1% of full scale
• Output Impedance: 1 Ω (minimum load impedance: 1 kΩ)
• Isolation: 1500 V between module and I/O rack logic
• Operating Temperature: -20°C to +70°C (-4°F to +158°F)
• Mounting: Compatible with Opto 22 SNAP I/O racks

Features and Benefits:

1. Dual Independent Outputs:
   • Enables control of two separate voltage-driven devices or systems.
2. High Precision and Stability:
   • 12-bit resolution ensures fine control for sensitive applications.
3. Wide Voltage Range:
   • Suitable for a variety of industrial and automation tasks.
4. Isolated Design:
   • Protects control systems and ensures safe operation.
5. Easy Integration:
   • Seamlessly integrates with SNAP PAC controllers and other Opto 22 SNAP I/O systems.
6. Durable Construction:
   • Built to withstand industrial environments and extended temperature ranges.

Applications:

• Process Automation:
  • Control of actuators, valves, and proportional devices.
• Motion Control:
  • Precise voltage control for servo motors and drives.
• Industrial Equipment:
  • Interface with voltage-controlled equipment in manufacturing and processing.
• Building Automation:
  • Regulate HVAC systems, lighting, and other infrastructure.

Why Choose the SNAP-AOV-25?
The Opto 22 SNAP-AOV-25 offers dependable performance and precision in industrial voltage control applications. Its dual-channel design, combined with Opto 22’s proven reliability, makes it an excellent choice for any automation project requiring analog voltage output.
