Opto 22 SNAP-AIV-4 Channel Voltage Input Module

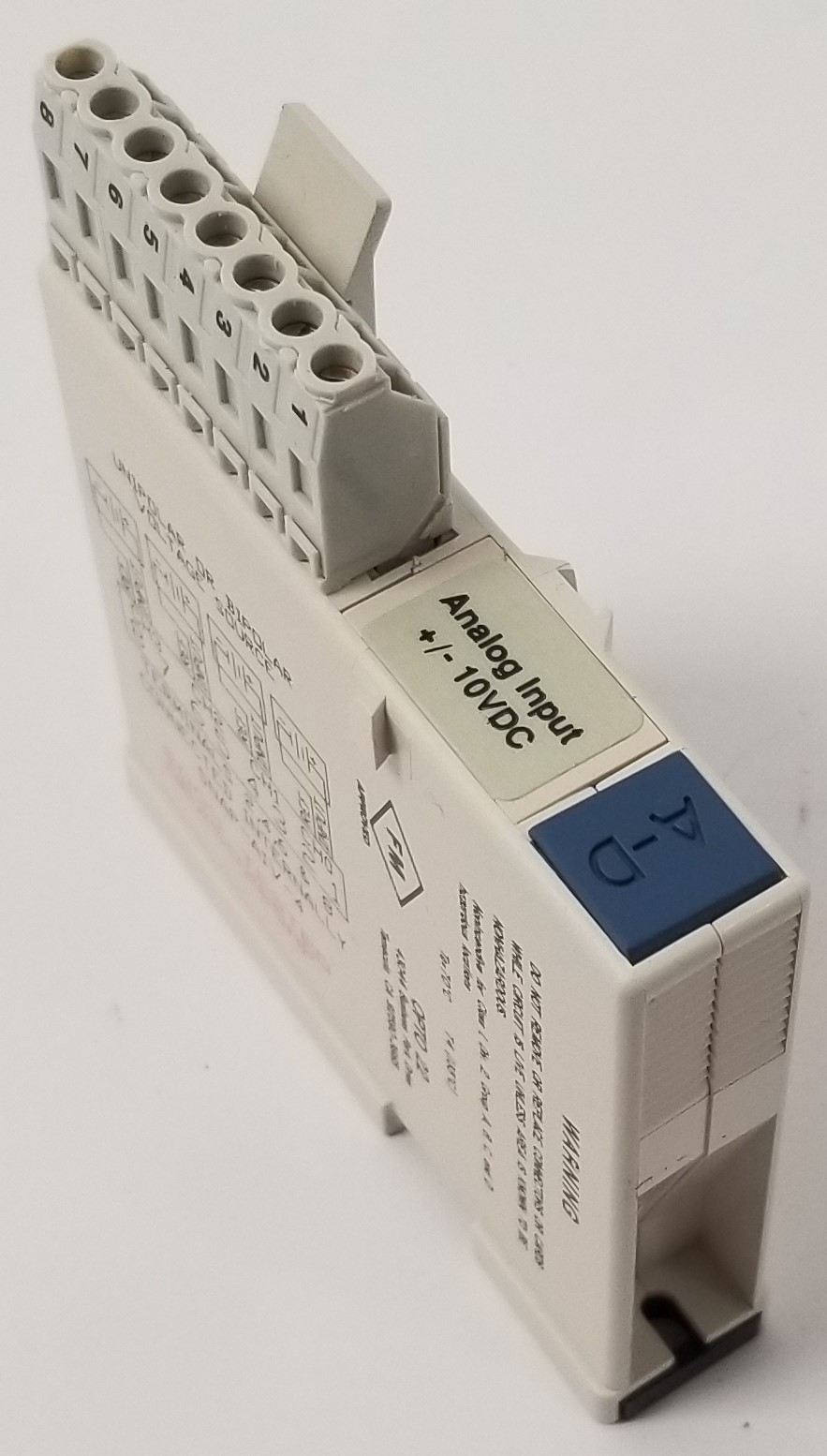

Opto 22 SNAP-AIV-4 Channel Voltage Input Module. Carefully removed from operational system. No manual. As shown.

Product Overview:

The Opto 22 SNAP-AIV-4 is a 4-channel analog input module designed for use with SNAP PAC systems. This module supports a wide range of voltage inputs and provides high precision for monitoring and measurement in industrial automation and process control applications.

Key Specifications:

• Manufacturer: Opto 22
• Model Number: SNAP-AIV-4
• Type: Analog Input Module
• Number of Channels: 4
• Input Range: ±10/±5VDC Configurable
• Resolution: 12-bit
• Accuracy: ±0.05% of full scale
• Input Impedance: > 1 MΩ
• Isolation: 1500 V (channel-to-channel and channel-to-logic)
• Connector Type: SNAP module base

Features and Benefits:

1. High Accuracy and Precision:
   • The module provides ±0.05% accuracy with 12-bit resolution for precise voltage monitoring.
2. Wide Voltage Range:
   • Supports a ±10VDC input range, suitable for a variety of analog signal sources.
3. Channel Isolation:
   • 1500 V isolation protects sensitive electronics and prevents cross-talk between channels.
4. Compact and Modular Design:
   • Fits seamlessly into SNAP I/O racks, reducing space requirements in control panels.
5. Easy Integration:
   • Compatible with Opto 22’s PAC controllers and other SNAP systems for streamlined system setup.

Applications:

• Industrial Automation:
  • Monitors voltage signals from sensors and transducers.
• Process Control:
  • Measures analog signals for system feedback and control.
• Data Acquisition:
  • Ideal for capturing precise voltage readings in SCADA and DAQ systems.
• OEM and Custom Solutions:
  • Suitable for embedded applications requiring reliable analog signal input.

Why Choose the Opto 22 SNAP-AIV-4?
The SNAP-AIV-4 module offers high accuracy, robust isolation, and easy integration into Opto 22 systems, making it a trusted choice for professionals in industrial and automation environments.

Carefully removed from operational system. No manual. As shown.
