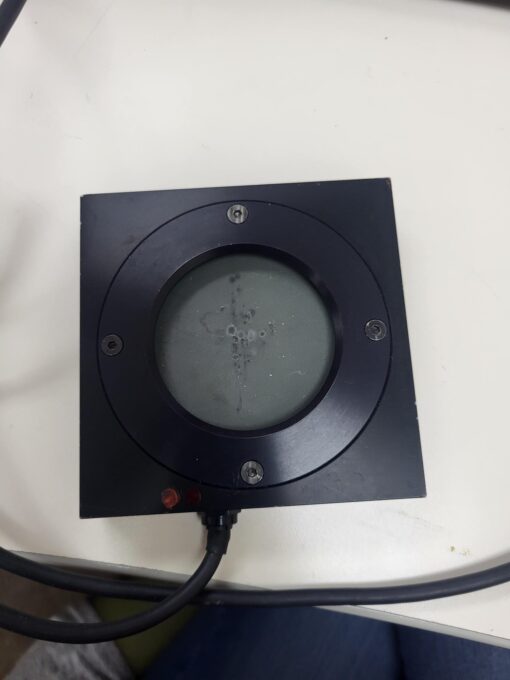

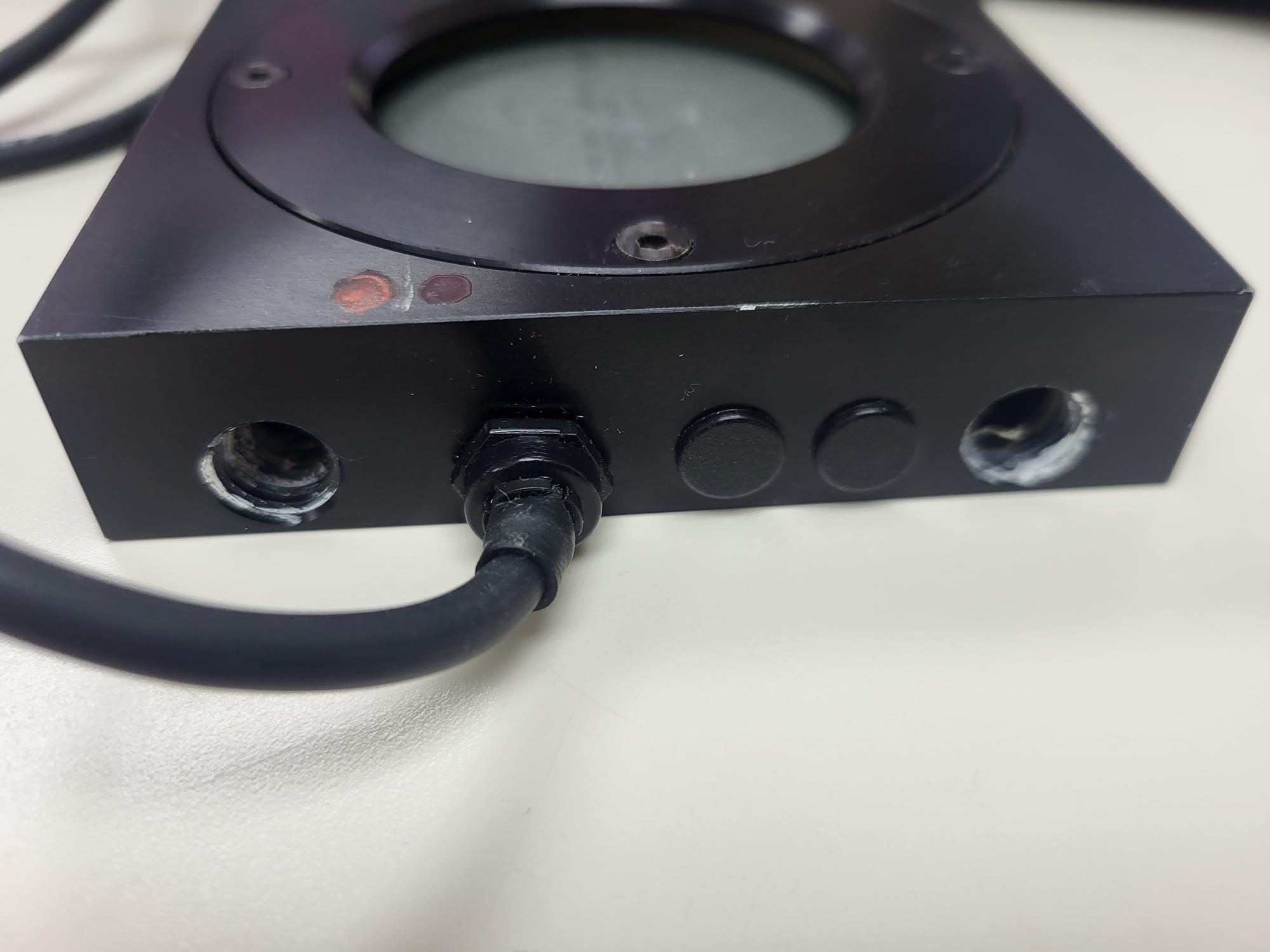

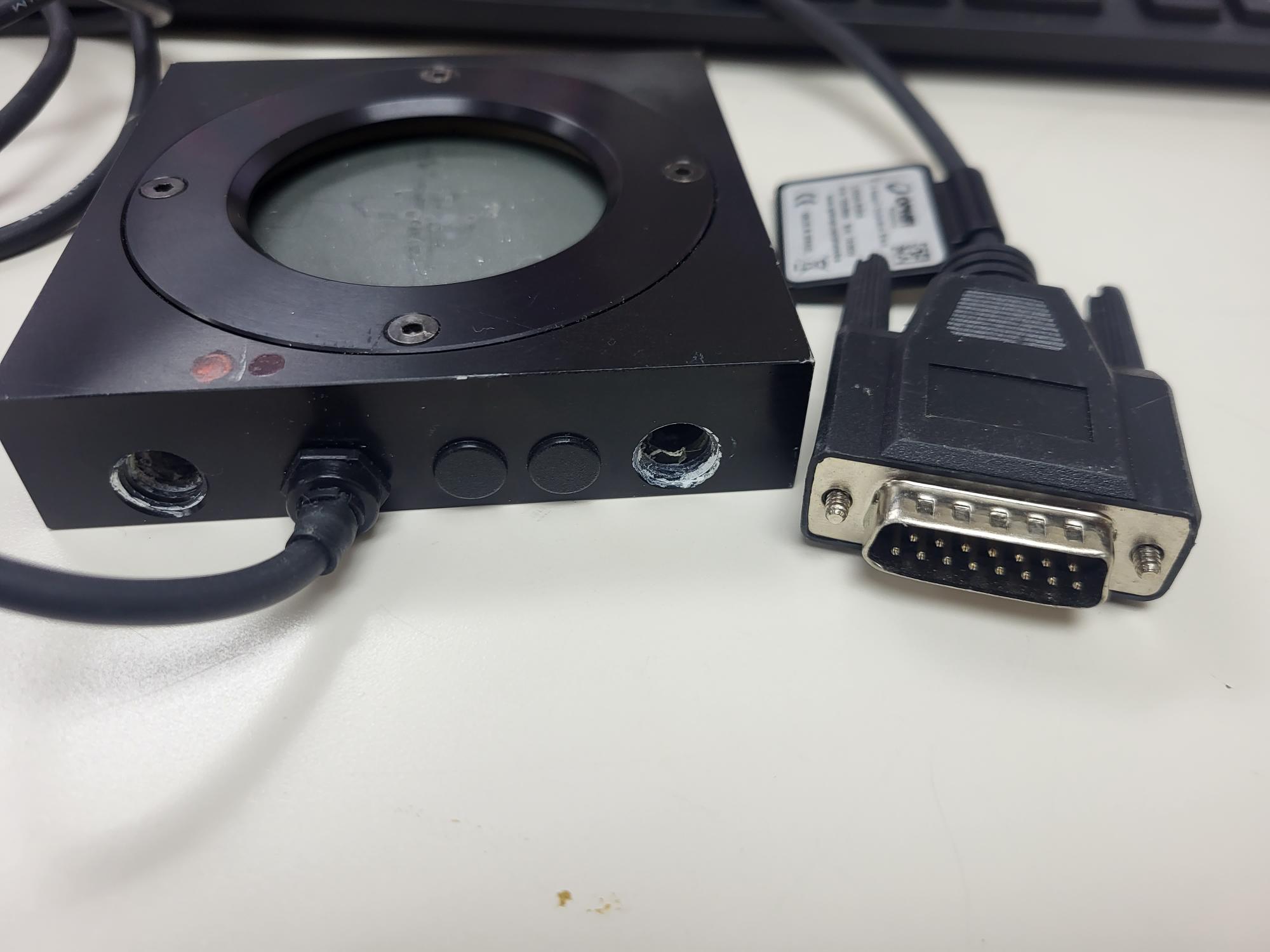

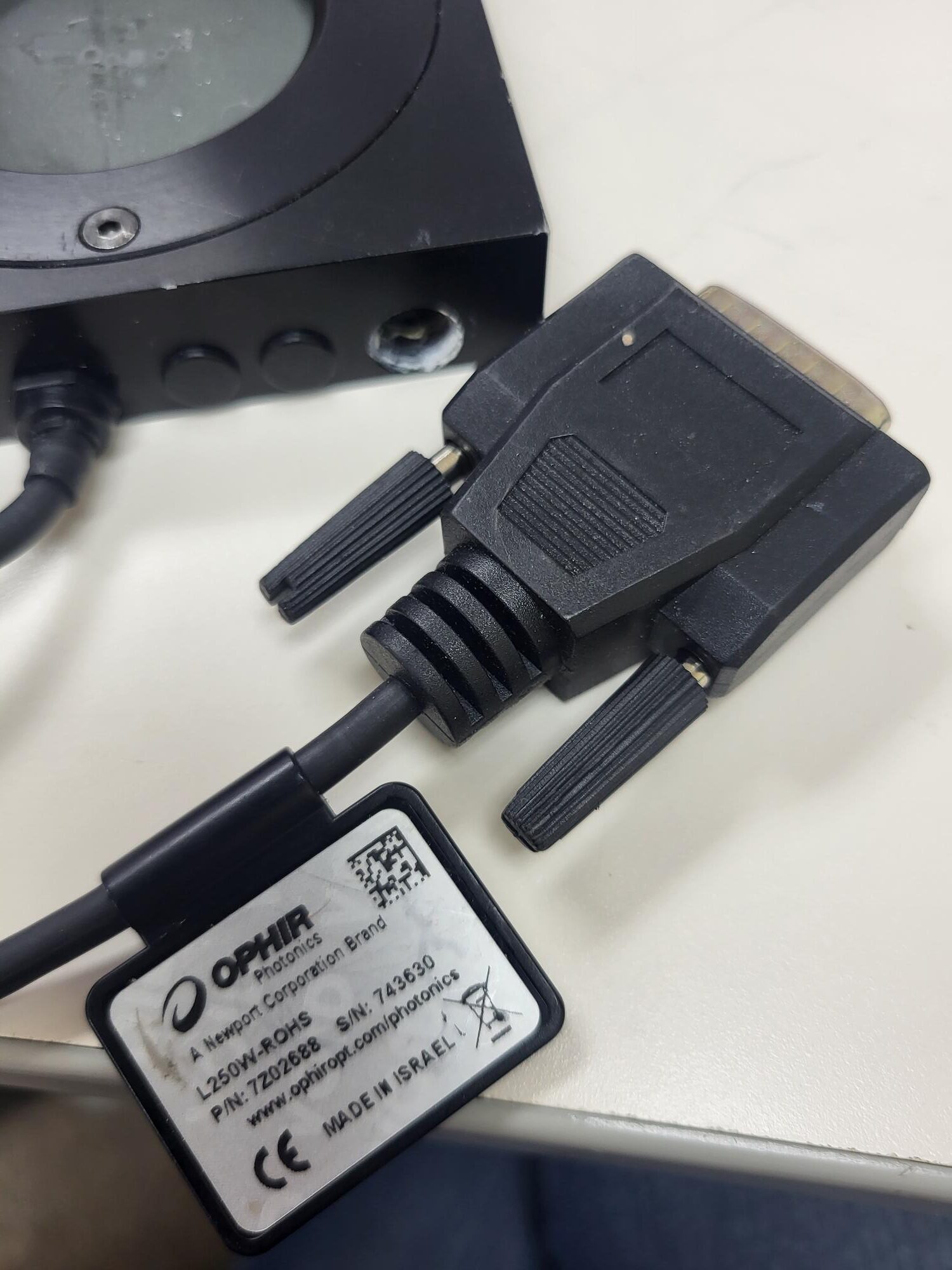

OPHIR L250W THERMAL POWER/ENERGY LASER SENSOR

Absorber Type: Broadband

Aperture: Ø50mm

Spectral Range: 0.19-20µm

Power Range: 1W-250W

Energy Range: 120mJ-200J

Backscattered Power: N.A.

Dimensions: 90 L x 90 W x 20 D (mm)

Max Pulse Energy: 200J

Max Average Power Density: 10kW/cm²

Response Time: 2.5 s

Max Energy Density (for <100ns): 0.3J/cm²

Max Energy Density (for 2ms): 10J/cm²

Max Average Power: 250W

BeamTrack Functions: N.A.

Compliance: CE, UKCA, China RoHS
