Onset HOBO U30-GSM-000-05-S100-305

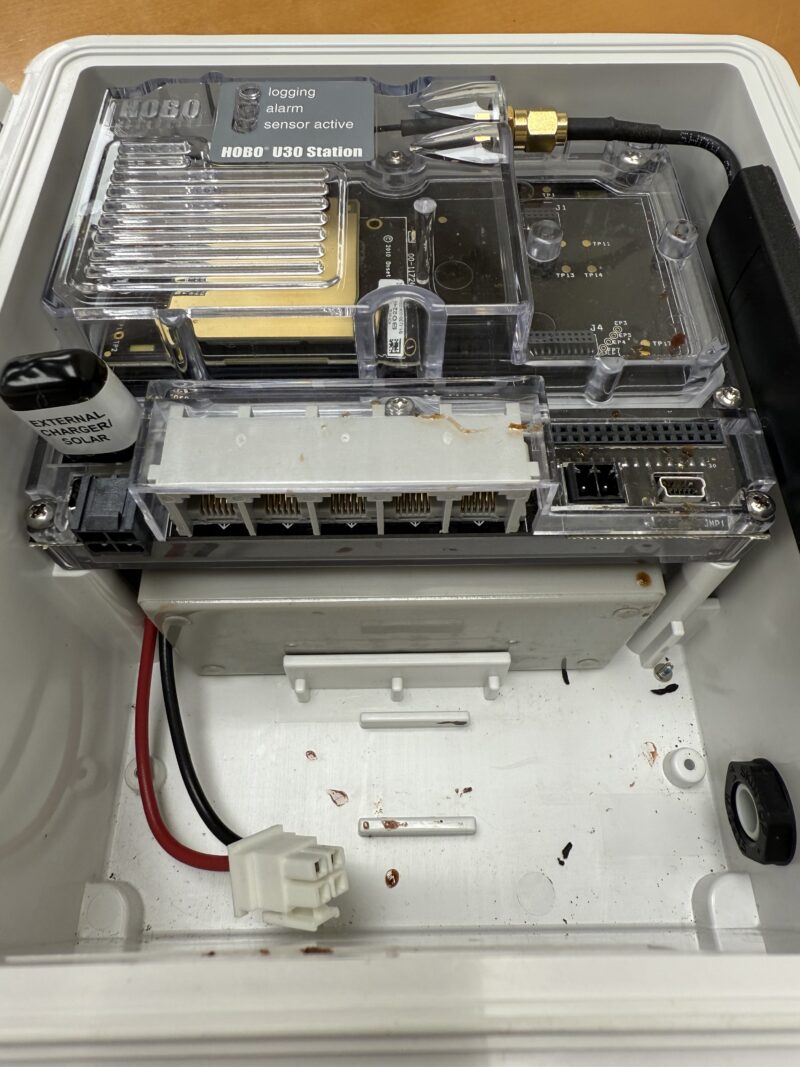

Onset HOBO U30-GSM-000-05-S100-305 – GSM-Enabled Remote Monitoring System

The Onset HOBO U30-GSM-000-05-S100-305 is a rugged, GSM-enabled remote monitoring system designed for comprehensive environmental and energy data collection. With its robust construction and versatile sensor compatibility, it is ideal for applications in agriculture, environmental research, and industrial monitoring.

Key Features:

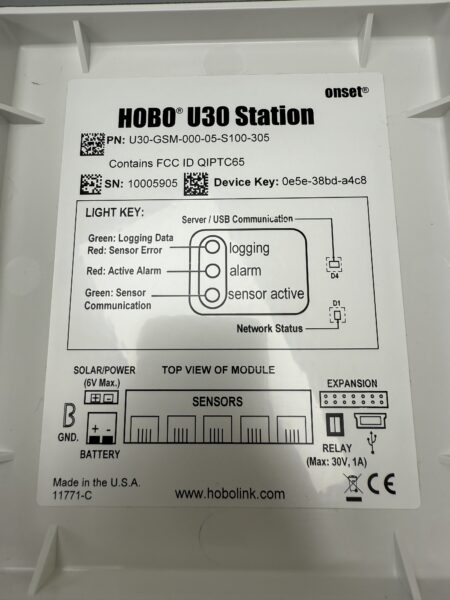

• Model: U30-GSM-000-05-S100-305

• Manufacturer: Onset Computer Corporation

• Communication: GSM cellular module for remote data transmission

• Sensor Inputs: 5 standard smart sensor inputs; expandable to 10

• Data Channels: Supports up to 15 data channels

• Data Logging Interval: Configurable from 1 second to 18 hours

• Memory: 512 KB nonvolatile flash data storage

• Power Supply: 4V, 4.5 AHr or 10 AHr rechargeable sealed lead-acid battery

• Enclosure: Double-weatherproof, tamperproof enclosure rated to NEMA 6

• Operating Temperature Range:

  • Normal: -20°C to 40°C (-4°F to 104°F)

  • Extended: -40°C to 60°C (-40°F to 140°F)

• Dimensions: 18.9 x 11.8 x 18.1 cm (7.4 x 4.7 x 7.1 inches)

• Weight: Approximately 2.2 kg (4.8 lbs)

Sensor Compatibility:

The U30-GSM-000-05-S100-305 supports a wide range of Onset’s plug-and-play smart sensors, enabling measurements of:

• Temperature

• Relative Humidity

• Soil Moisture

• Barometric Pressure

• Solar Radiation

• Wind Speed and Direction

• Rainfall

• Leaf Wetness

• Light Intensity

• 4-20 mA and Voltage Inputs

Note: Some sensors may use more than one data channel.

Applications:

• Agricultural Monitoring

• Environmental Research

• Industrial Process Monitoring

• Remote Site Monitoring

• Weather Station Deployments

SOLD AS IS
UNTESTED
NO ACCESSORIES INCLUDED
