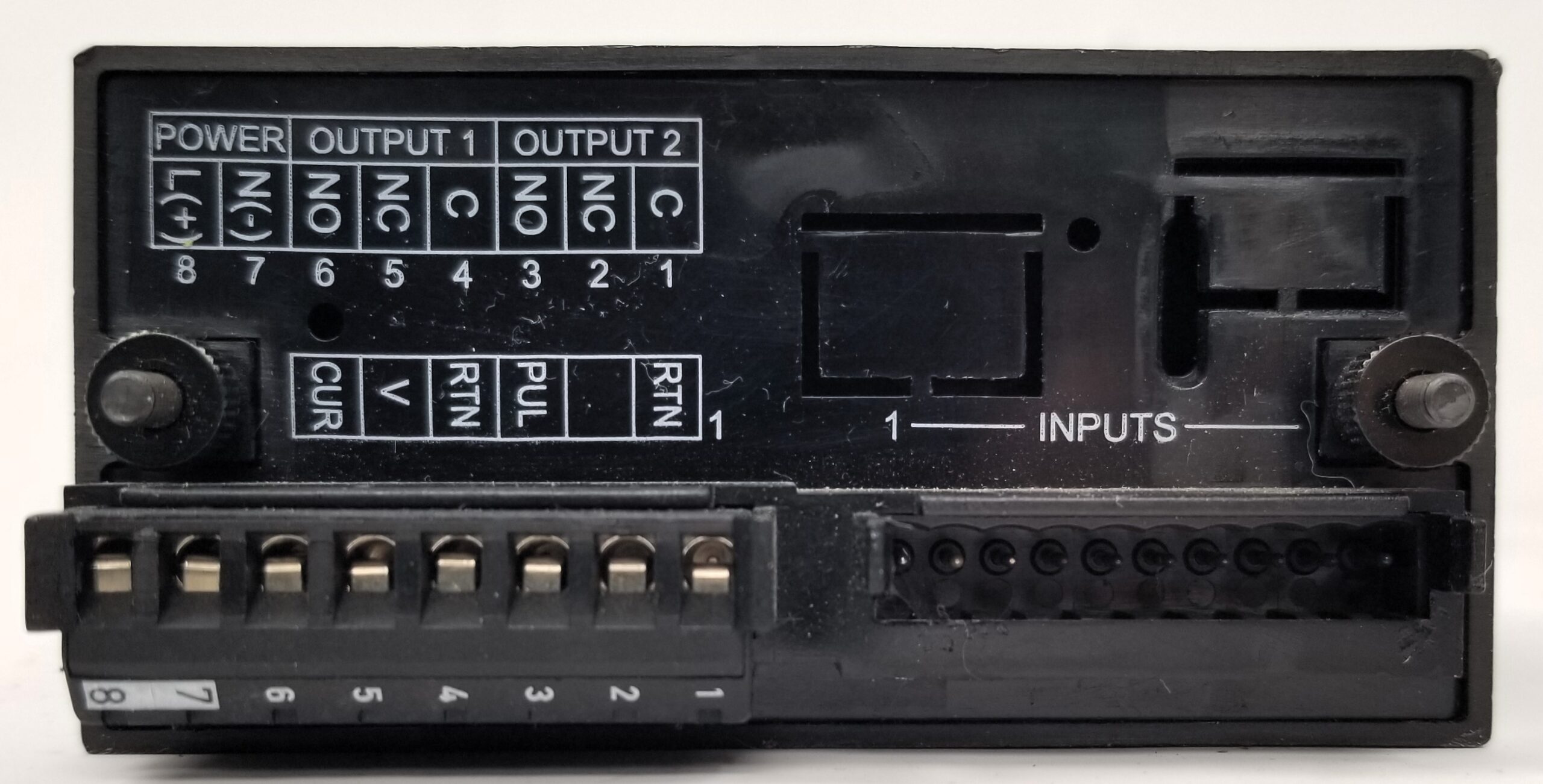

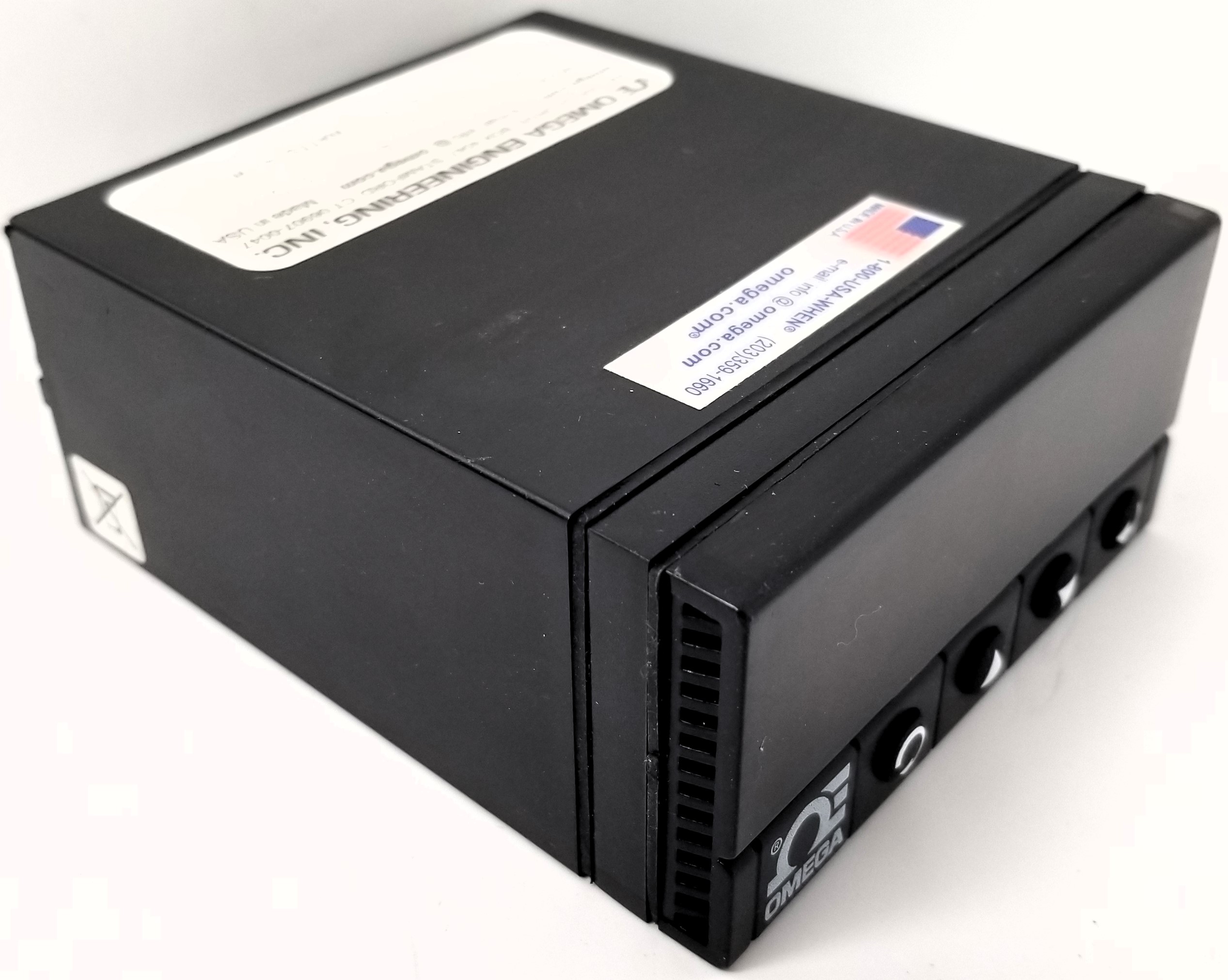

Omega Engineering Inc. CN1833-C24 Temperature and Process Controller

Omega Engineering Inc. CN1833-C24 Temperature and Process Controller. Carefully removed from operational system. Powers on and completes initialization. Set-up menus are accessible. No manual, sensors, cables or other accessories. Purchaser responsible for proper installation/use and any calibration or certification if required. As shown.

The Omega CNi Series Temperature, Process and Strain Controllers are a family of microprocessor-based instruments offered in three true DIN sizes. All of the instruments share the same set-up and configuration menu and method of operation, a tremendous time saver for integration of a large system. The iSeries family includes extremely accurate digital panel meters “DPi” and single loop PID controllers “CNi” that are simple to configure and use, while providing tremendous versatility and a wealth of powerful features.

The CNi Series covers a broad selection of transducer and transmitter inputs with 2 input modes.

The Universal temperature and process instrument (CNi models) handles 10 common types of thermocouples, multiple RTDs and several process (DC) voltage and current ranges. This model also features built-in excitation, 24 Vdc at 25 mA. With its wide choice of signal inputs, this model is an excellent choice for measuring or controlling temperature with a thermocouple, RTD, or 4 to 20 mA transmitter.

The strain and process instruments (CNiS models) measure inputs from load cells, pressure transducers, and most any strain gage sensor as well as process voltage and current ranges. The CNiS has built-in 5 or 10 Vdc excitation for bridge transducers, 5 Vdc at 40 mA or 10 Vdc at 60 mA . This CNiS model supports 4- and 6-wire bridge communications, ratiometric measurements. The CNiS features fast and easy “in process” calibration/ scaling of the signal inputs to any engineering units. This model also features 10-point linearization which allows the user to linearize the signal input from extremely nonlinear transducers of all kinds.

*This item has been discontinued by the manufacturer and will become increasingly difficult to obtain in this condition.
