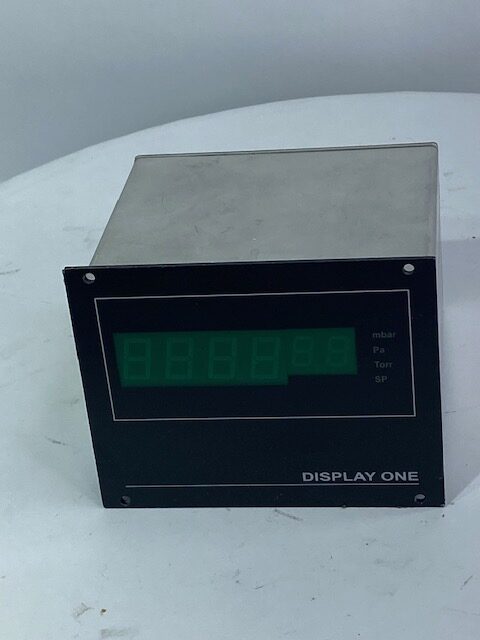

The DISPLAY ONE is a single-channel vacuum display and operating instrument made by Oerlikon Leybold Vacuum GmbH. It is designed to interface with active vacuum sensors/transmitters and provides a local read-out of vacuum pressure while supplying the necessary operating voltage to the sensors.
Key Features & Specifications
-
Model / Part Number: 230 001 (DISPLAY ONE).
-
Single channel display (i.e., one measurement channel).
-
Pressure measuring interface: For active sensors (e.g., TTR, PTR, ITR, DU, DI series) in the programme of Oerlikon Leybold Vacuum.
-

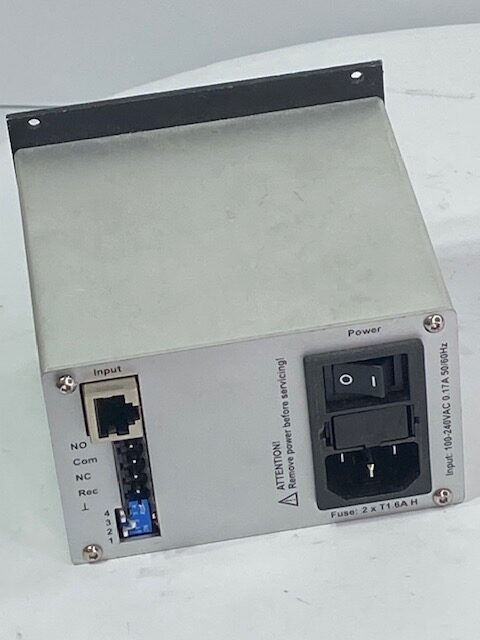

Power supply: 100-240 V AC, 50/60 Hz.
-
Mounting: Can be used as a benchtop/tabletop instrument or mounted in a 19-inch rack via adapter.
-
Cable/connector types: Depending on sensor type, uses e.g. FCC 68 (RJ45) 8-pole shielded for “Type A” connection.
-
Pressure range: The listing on amikon-shop shows for 230001: “Druckbereich: 5×10⁻⁹ mbar – 2000 mbar”.
| Weight | 3 lbs |
|---|---|
| Dimensions | 6 × 6 × 6 in |
