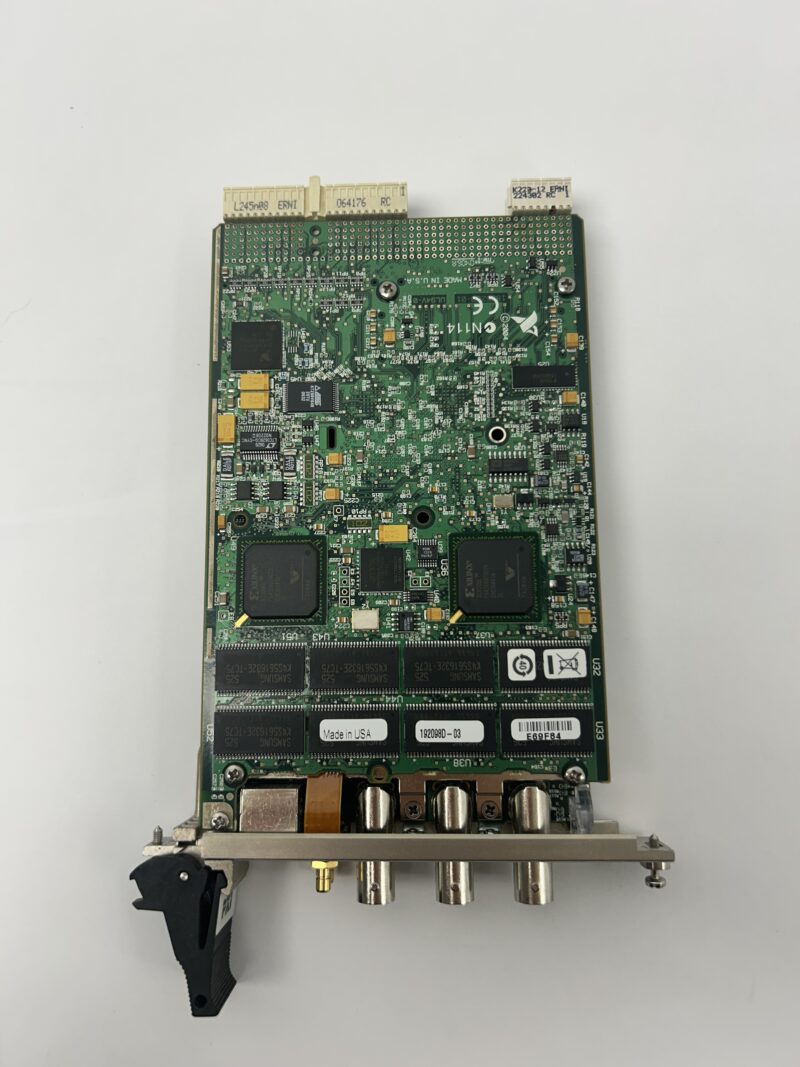

NI PXI-5922 Digitizer

The NI PXI-5922 is a 24-bit, flexible-resolution digitizer, designed for precision signal acquisition in demanding test applications. With 256 MB of memory per channel, this digitizer enables high-resolution data capture, making it ideal for advanced signal processing, electronic testing, and research environments. The PXI-5922 provides variable sample rates up to 15 MS/s with selectable resolutions between 16 and 24 bits, allowing users to balance between resolution and speed based on application requirements.

Key features of the NI PXI-5922 include an adjustable input voltage range from ±200 mV to ±10 V, ensuring accurate capture of diverse signal amplitudes, and a 10 MHz bandwidth for comprehensive frequency analysis. The module supports a software-selectable anti-aliasing filter, improving signal fidelity by reducing unwanted high-frequency noise. It also features deep onboard memory, ideal for lengthy signal captures, and seamless integration with PXI systems for synchronized, multi-channel setups. Designed for flexibility, this digitizer is perfect for applications requiring high dynamic range, such as audio analysis, vibration monitoring, and precision scientific measurement.
