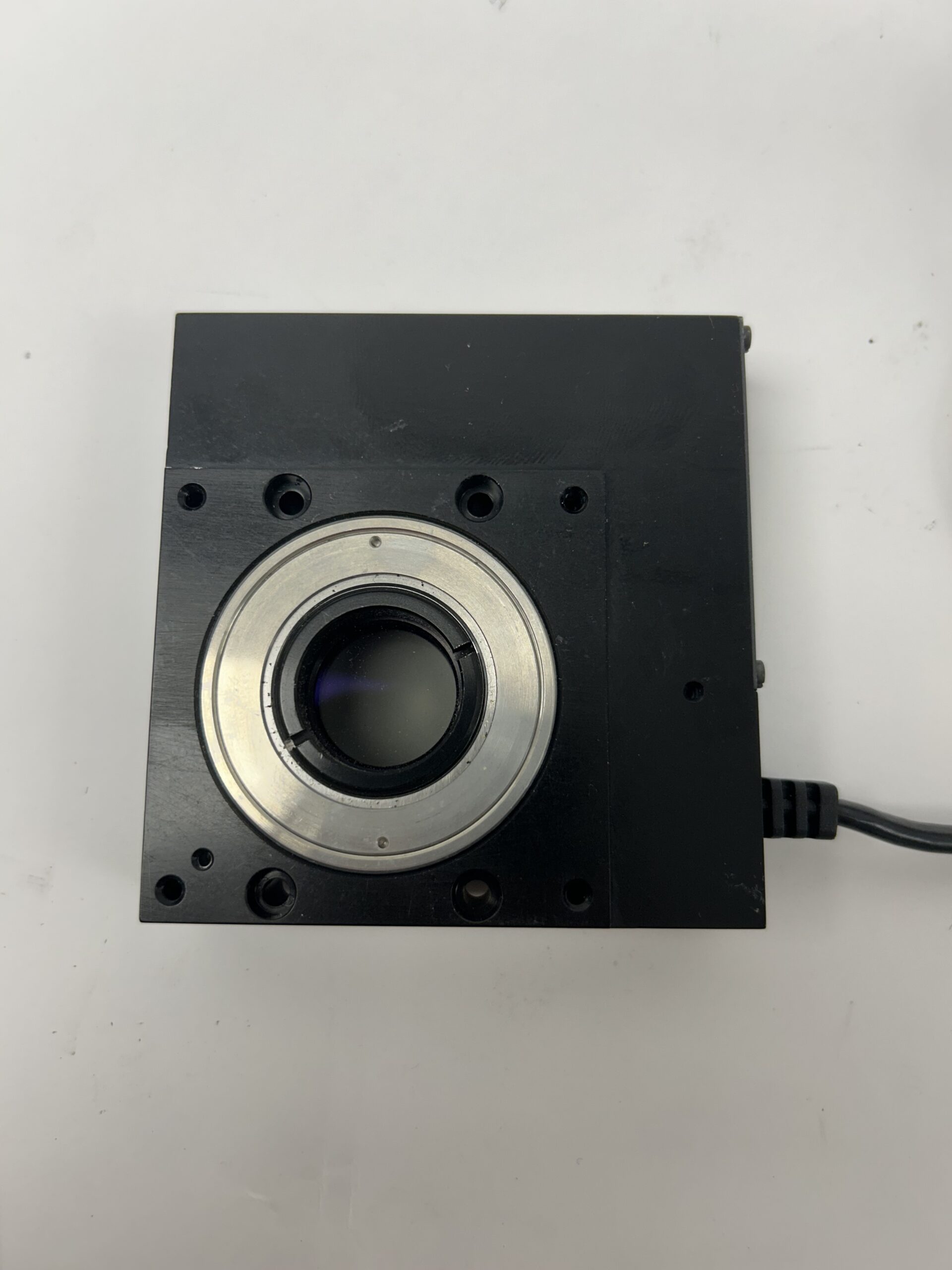

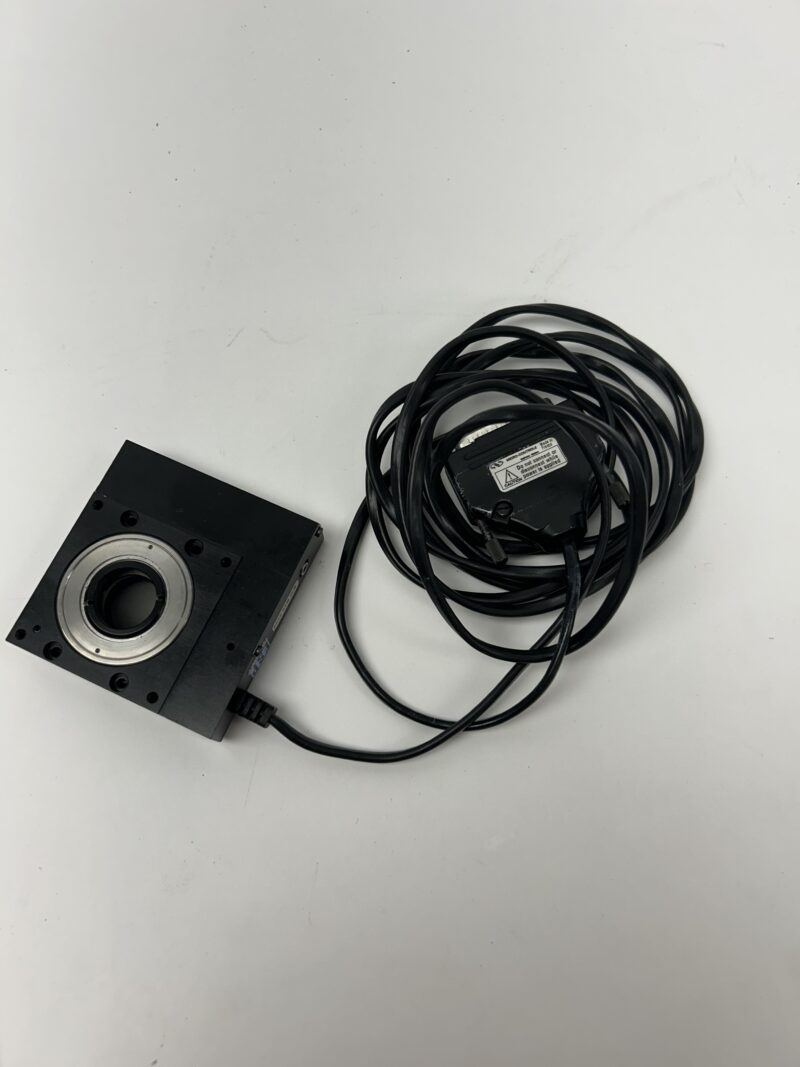

Newport SR50CC Motorized Rotation Stage
📌 Key Features
-
Footprint & Load
Compact (fits optics up to 25 mm diameter), with a maximum centered load of 30 N -
Rotation & Speed
Offers a full 360° range, with a top speed of 4°/s -
Resolution & Accuracy
Superb angular resolution (~0.001°), typical accuracy ±0.015° (15 mdeg), guaranteed ±0.03° (30 mdeg) -
Wobble & Repeatability
Wobble <50 µrad, repeatability in single direction ±5 mdeg, bidirectional ±25 mdeg -
Drive & Bearing System
Integrates a ground-worm gear and proprietary pre-loaded ball bearings; weight ≈0.3 kg
