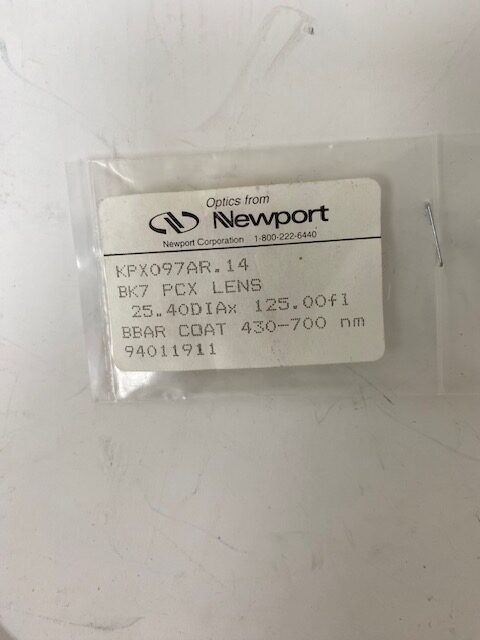

Newport KPX097AR.14 is a precision plano-convex optical lens for visible-light and laser applications. It features N-BK7 optical glass with a broadband anti-reflection coating optimized for 430–700 nm wavelengths.
Specifications
| Parameter | Value |
|---|---|
| Model | KPX097AR.14 |
| Lens Type | Plano-Convex |
| Material | N-BK7 Optical Glass |
| Diameter | 25.4 mm (1.0 in) |
| Effective Focal Length (EFL) | 125 mm |
| Radius of Curvature | 64.6 mm |
| Center Thickness | 4.261 mm |
| Surface Quality | 40-20 Scratch-Dig |
| Focal Length Tolerance | ±1% |
| Coating | AR.14 (430–700 nm) |
| Wavelength Range | 430–700 nm (optimized) |
Applications
- Laser beam collimation
- Beam focusing
- Optical instrumentation
- Imaging systems
- Scientific and laboratory optical setups
- Electro-optic and photonics research
