Product Overview

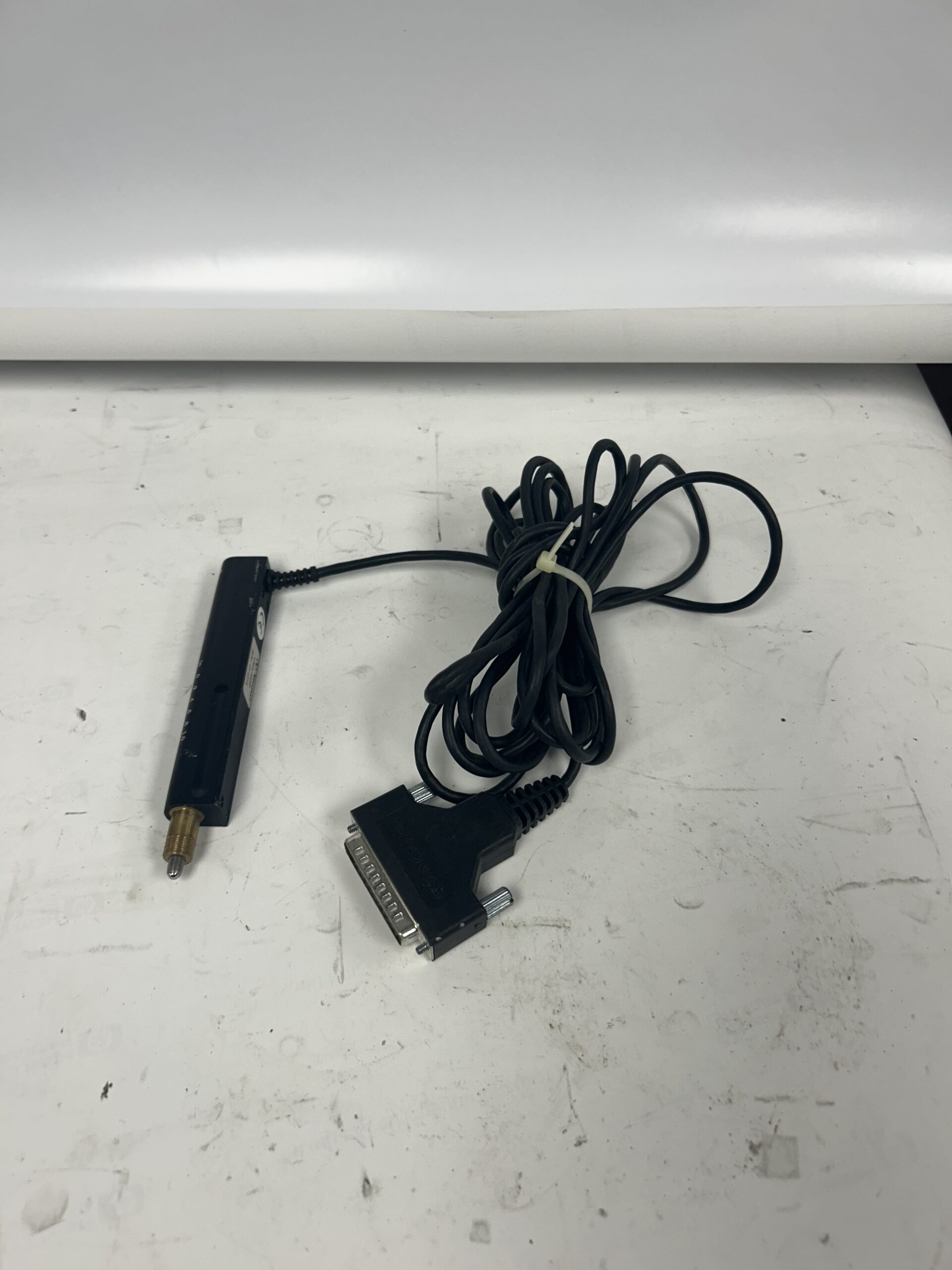

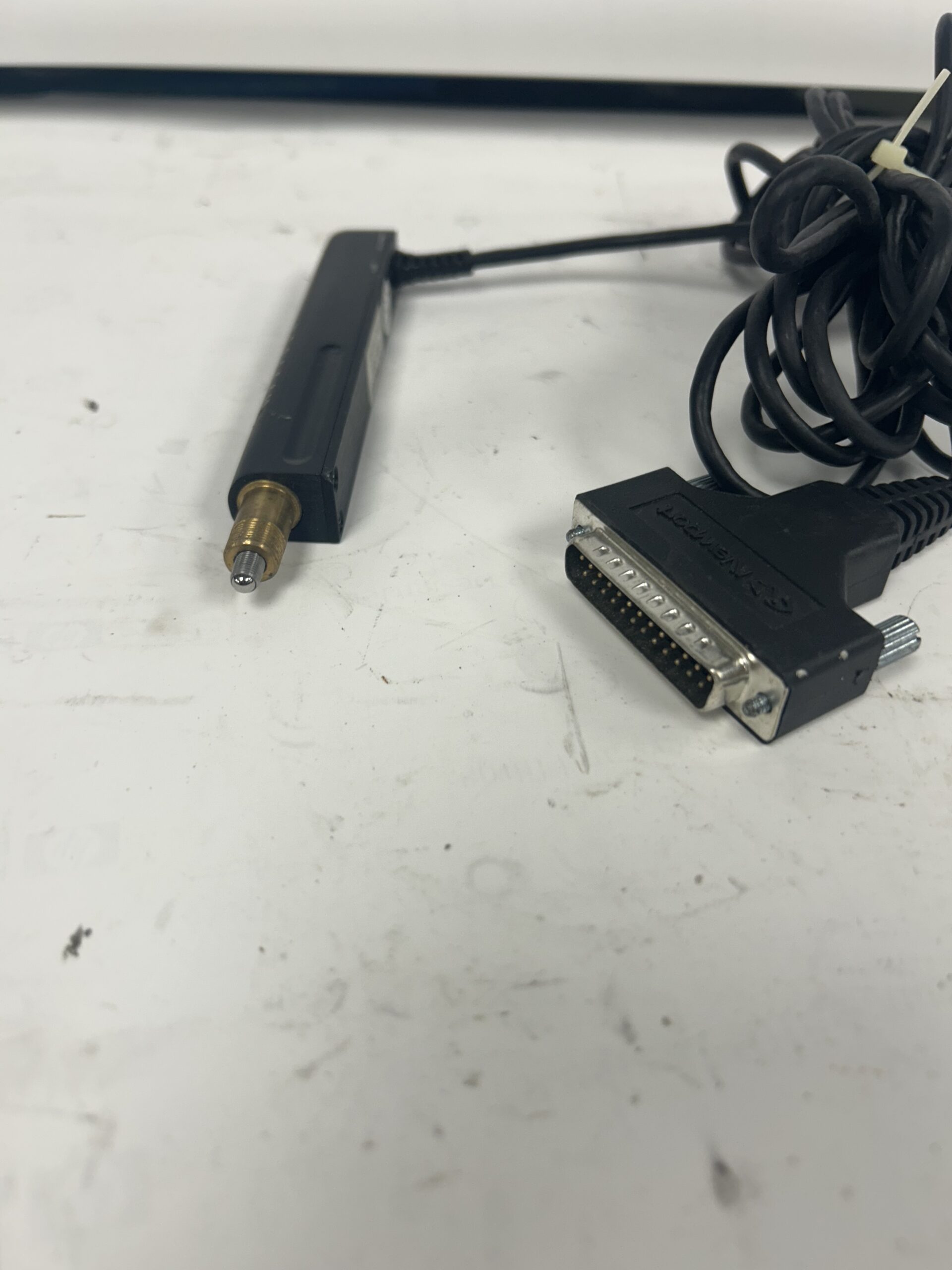

The Newport CMA-25PP Motorized Actuator is a precision linear actuator designed for high-performance motion control applications. With its integrated stepper motor and encoder, this actuator provides exceptional positioning accuracy and repeatability, making it ideal for research, industrial automation, and high-precision instrumentation.
Key Features
- Compact and Lightweight: Small form factor for integration into tight spaces.
- Stepper Motor Drive: Provides smooth, controlled linear motion.
- Integrated Encoder: Ensures high precision and accurate position feedback.
- Travel Range: 25 mm linear motion capability.
- High Load Capacity: Designed for stability and performance under load.
- Durable Construction: Built for long-term reliability in demanding environments.
Specifications
- Model: CMA-25PP
- Travel Range: 25 mm
- Motor Type: Stepper motor with encoder feedback
- Minimum Incremental Motion: <0.1 μm
- Maximum Speed: 2 mm/s
- Load Capacity: Up to 10 kg (vertical mounting)
- Connector Type: Standard D-sub connector for control system integration
- Material: Stainless steel body for durability and precision
- Operating Temperature Range: 0°C to +40°C
- Repeatability: ±0.5 μm
- Mounting Threads: Compatible with Newport and other standard mounting platforms
Applications
- Research & Development: Ideal for optical experiments and precision alignment.
- Automation: Suitable for tasks requiring precise linear motion.
- Metrology: Ensures accurate positioning in high-precision measurement setups.
- Manufacturing: Used in assembly lines requiring controlled motion solutions.
| Weight | 2 lbs |
|---|---|
| Dimensions | 9 × 4 × 4 in |
