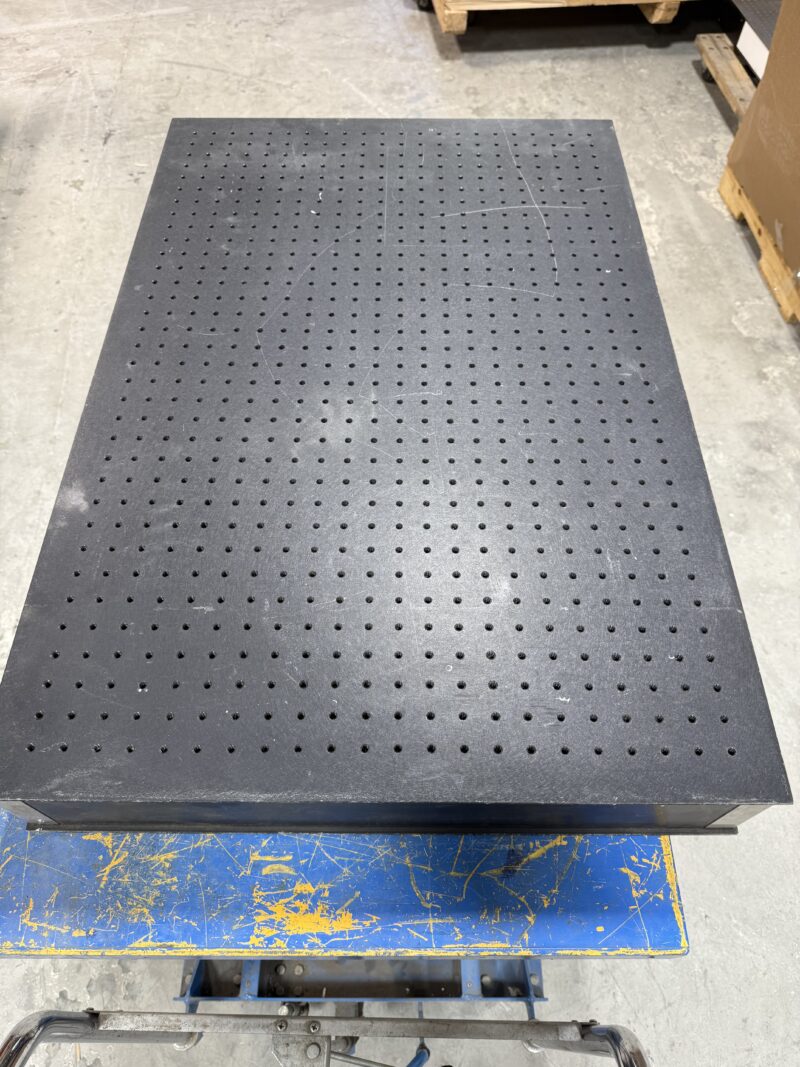

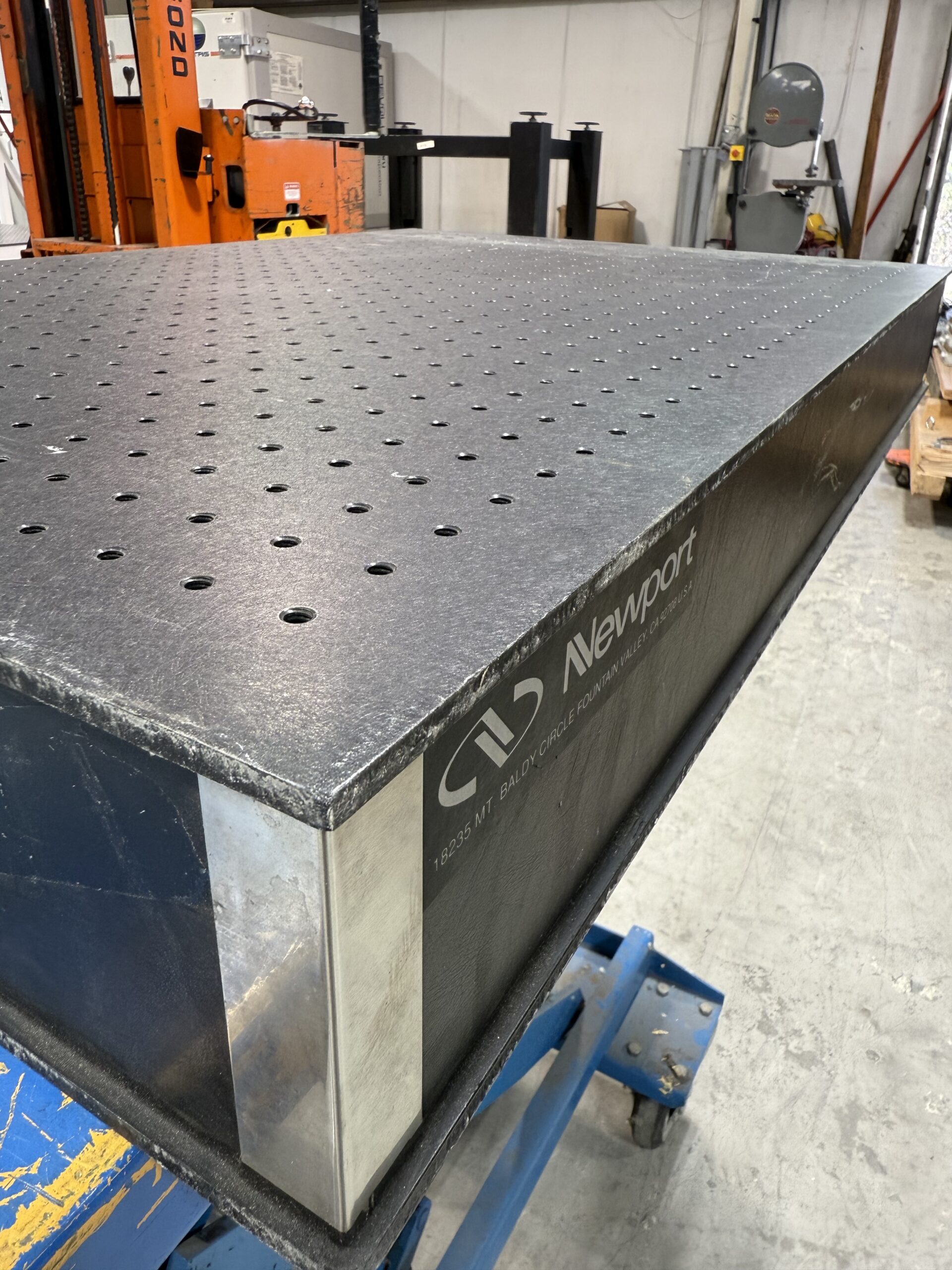

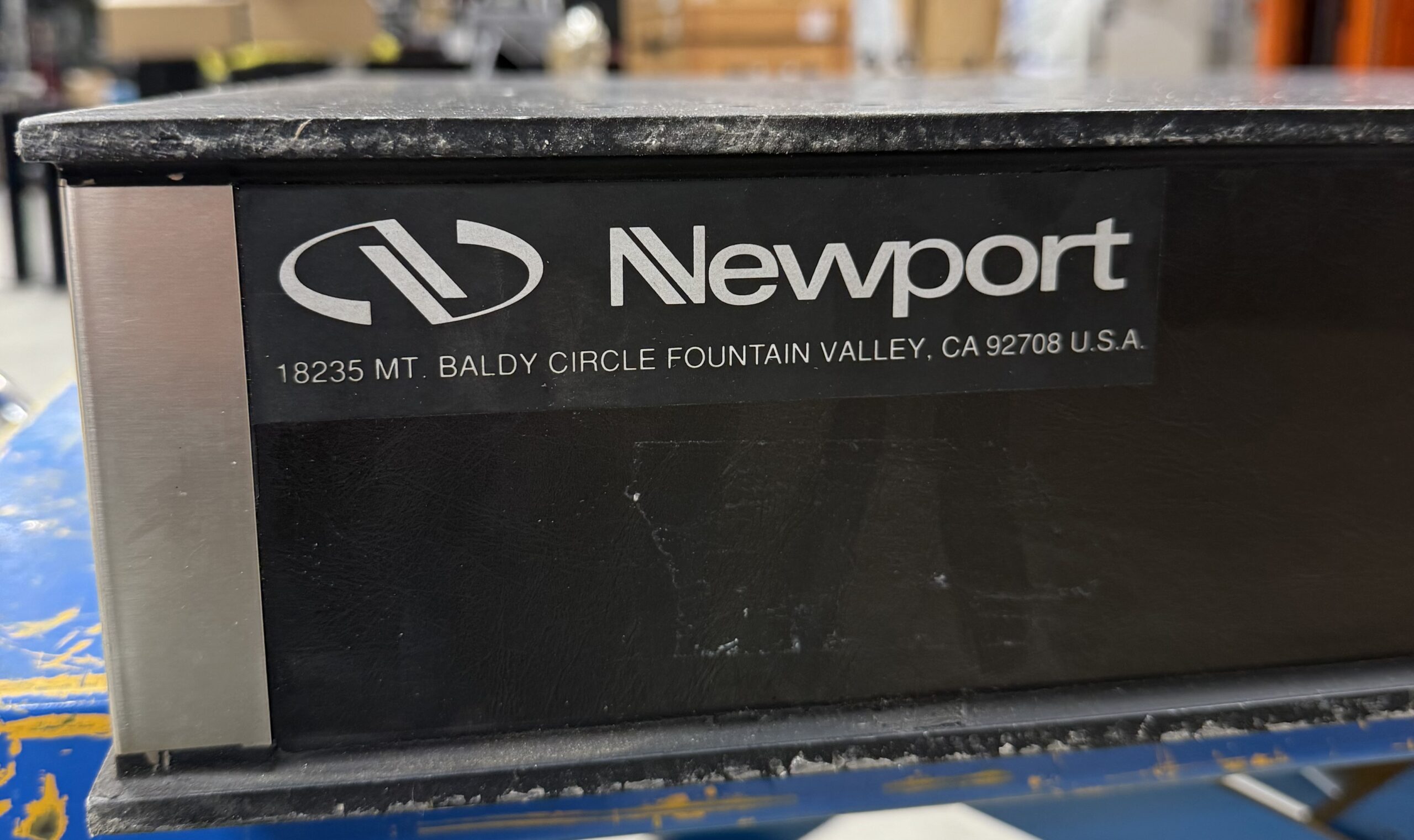

Newport 36x24x4 Optical Breadboard

Newport Optical Table – 36″ x 24″ x 4″ Damped Breadboard

The Newport 36″ x 24″ x 4″ optical breadboard is a compact, vibration-damped platform designed for high-precision optical and photonics work. Built with a steel honeycomb core and ferromagnetic stainless steel top, it offers excellent flatness, stiffness, and long-term stability for sensitive laboratory applications.

Key Features:

• Model: 36 x 24 x 4 Optical Breadboard

• Manufacturer: Newport

• Dimensions: 36 inches (L) x 24 inches (W) x 4 inches (H)

• Surface Material: Ferromagnetic stainless steel

• Core: Steel honeycomb for damping and rigidity

• Hole Pattern: 1/4-20 tapped holes on 1-inch centers

• Surface Flatness: ±0.010″ over 2 ft²

• Edge Borders: 0.5-inch border without holes

• Weight: Approximately 70–75 lbs

• Use Case: Designed for tabletop use or integration with optical table legs

Common Applications:

• Laser alignment and optical experiments

• Photonics research and lab testing

• Mounting microscopes, mirrors, and precision instruments

• Educational and R&D laboratory setups

• Small-scale metrology or imaging systems
