🎯 Overview
-

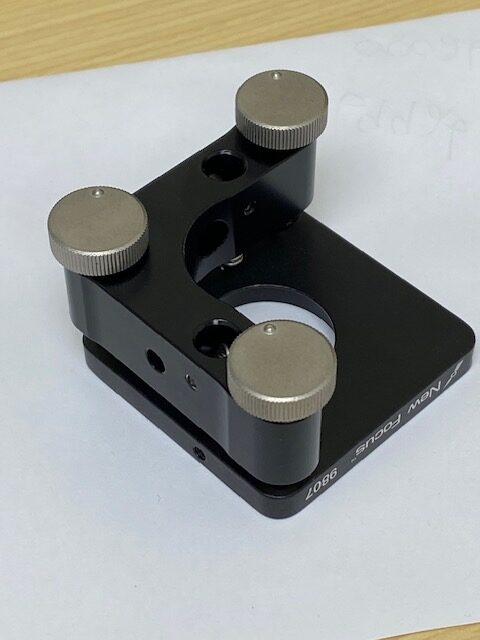

The 9807 is a 1.0 inch (25.4 mm) diameter kinematic mirror mount featuring a three-knob design, offering simultaneous adjustment in z, θₓ, and θᵧ axes.
-
It is part of Newport’s New Focus™ Classic series, engineered for precision alignment, long-term stability, and repeatability using thread-matched 1/4‑80 adjustment screws, sapphire seats, and low-friction sapphire kinematic pads.
-
Sensitivity is approximately 4.4 arc seconds with an angular range up to ± 4°, and an optical axis height of 25.4 mm. The body is constructed from anodized aluminum for rigidity and minimal thermal drift.
🔧 Technical Specifications
| Feature | Specification |
|---|---|
| Optic Diameter | 25.4 mm (1.0 inch) |
| Adjustments | z, θₓ, θᵧ (three actuators) |
| Screw Thread | 80 TPI (¼‑80) |
| Sensitivity | ~4.4 arc seconds per click |
| Angular Range | ± 4° |
| Material | Anodized aluminum frame |
| Drive Type | Non‑locking precision knobs |
| Optic Loading | Front-mounted |
| Weight | 1 lbs |
|---|---|
| Dimensions | 6 × 3 × 2 in |
