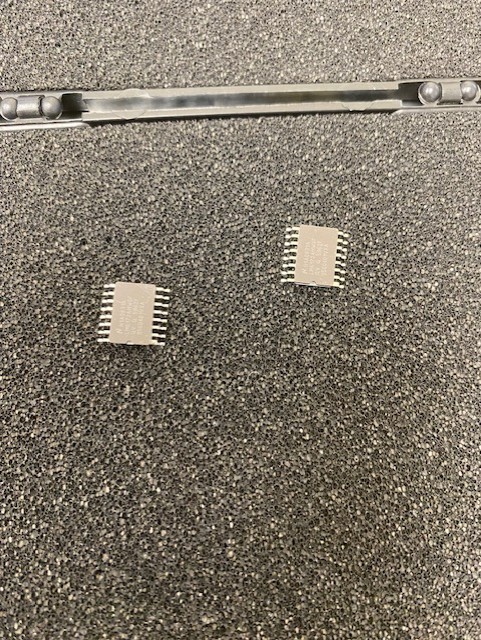

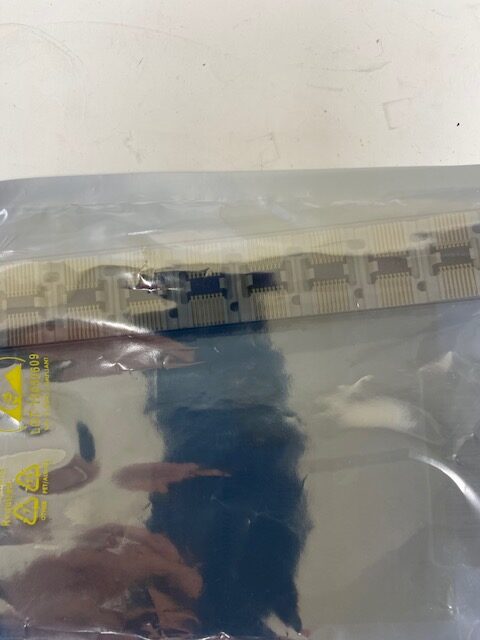

The National Semiconductor 5962F9560401VXA is a high-performance, dual-channel operational amplifier designed to offer exceptional speed and precision for demanding applications. Built to meet the rigorous standards of military and aerospace specifications, this high-speed op-amp delivers superior signal processing capabilities with minimal distortion and high accuracy.
Key Features:
-
Dual High-Speed Amplifier: Offers two independent, high-speed operational amplifiers in a single package, ideal for complex signal processing and precision measurements.
-
Military Grade: Manufactured to MIL-PRF-38535 standards, ensuring reliability and durability in harsh environments.
-
Wide Bandwidth: Optimized for applications requiring a wide bandwidth and fast slew rates.
-
Low Noise: Provides low noise performance for high-accuracy signal amplification in sensitive systems.
-
High Slew Rate: Capable of high slew rates, making it suitable for fast-switching applications.
Applications:
-
Aerospace & Defense: Used in military electronics and avionics systems where reliability and speed are critical.
-
Precision Electronics: Ideal for applications involving high-frequency signal processing, such as radar and communication systems.
-
Signal Conditioning: Perfect for use in signal conditioning circuits, offering both amplification and fast response times.
-
Test & Measurement Equipment: Suitable for high-speed instrumentation where signal fidelity is paramount.
Specifications:
-
Voltage Supply: ±15V
-
Bandwidth: 10MHz (typical)
-
Slew Rate: 3V/µs (typical)
-
Input Voltage Range: ±12V (typical)
-
Operating Temperature Range: Military grade, with an extended operational temperature range.
Why Choose the 5962F9560401VXA: Whether you’re working in high-precision military, aerospace, or advanced laboratory environments, the National Semiconductor 5962F9560401VXA offers the ideal combination of performance, reliability, and speed. Its dual-channel configuration, high slew rate, and low noise make it the perfect solution for demanding applications where precision is paramount.
