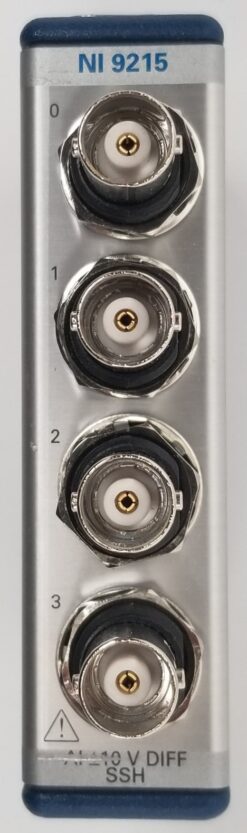

National Instruments NI 9215 with BNC – High-Speed Voltage Input Module with USB 9162 interface

National Instruments NI 9215 with BNC – High-Speed Voltage Input Module with USB 9162 interface. No manual or other accessories. As shown.



Product Description:

The National Instruments NI 9215 with BNC is a high-performance, 4-channel voltage input module designed for precision signal acquisition in test and measurement applications. With BNC connectors, it provides a user-friendly interface for connecting sensors and instruments, eliminating the need for additional wiring.

Equipped with 16-bit resolution and a 100 kS/s per channel sampling rate, the NI 9215 ensures accurate, high-speed signal processing, making it ideal for industrial automation, research, and engineering applications. Its rugged design allows integration into NI CompactDAQ and CompactRIO platforms, offering flexibility for both laboratory and field deployments.

---

Key Features:

✅ 4 Simultaneous Analog Inputs – Each channel operates independently for accurate multi-signal acquisition.
✅ BNC Connectivity – Easy and reliable connections for laboratory instruments, sensors, and probes.
✅ 16-bit Resolution – High precision measurement for detailed signal analysis.
✅ 100 kS/s Per Channel Sampling Rate – Suitable for fast-changing signals and dynamic applications.
✅ ±10V Input Range – Wide range supports various sensor and voltage signal sources.
✅ Compatible with CompactDAQ & CompactRIO – Seamless integration for modular and scalable systems.
✅ High-Performance Signal Processing – Reduces noise and enhances measurement accuracy.
✅ Industrial-Grade Durability – Designed for harsh environments and long-term reliability.

---

Applications:

✔ Automated Test Systems – Ideal for signal processing in research and production testing.
✔ Industrial Monitoring – Used in vibration analysis, machine health monitoring, and diagnostics.
✔ Electrical and Electronic Testing – Perfect for power measurements, waveform analysis, and signal acquisition.
✔ Data Acquisition (DAQ) Systems – Essential for scientific research, engineering labs, and product development.
✔ Aerospace & Automotive Testing – Ensures accurate voltage measurements in dynamic conditions.

---

Specifications:

Specification	Details
Model	National Instruments NI 9215 with BNC
Number of Channels	4
Input Type	Differential
Resolution	16-bit
Sampling Rate	100 kS/s per channel
Input Range	±10V
Connector Type	BNC
Compatibility	NI CompactDAQ, CompactRIO
Operating Temperature	-40°C to 70°C
Isolation	Channel-to-earth isolation

---

Why Choose the NI 9215 with BNC?

✔ High-Speed Data Acquisition – Ensures precise signal capture even in fast-changing conditions.
✔ Simple & Secure Connections – BNC connectors allow for quick, tool-free setup.
✔ Industry-Proven Reliability – Built to NI’s high standards for durability and accuracy.
✔ Versatile & Scalable – Works with CompactDAQ and CompactRIO for modular system expansion.

Optimize your data acquisition and signal measurement with the National Instruments NI 9215 with BNC—a trusted solution for high-speed, high-accuracy voltage input applications!
