Motorola MVME162-533A CPU Board

We are unable to test our circuit boards.  They are removed from working environments

They are sold “as is” final sale.  They are not eligible for return.

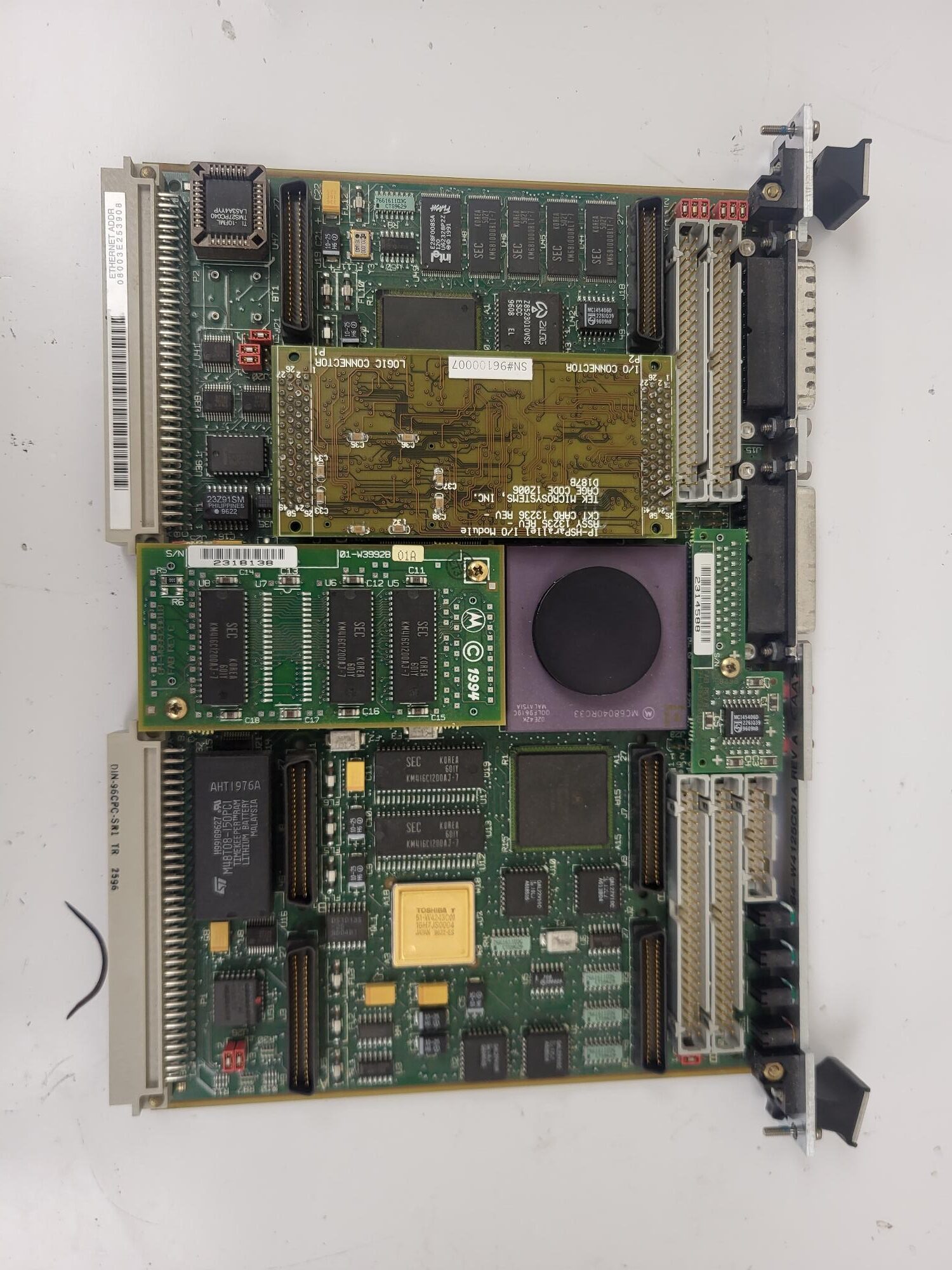

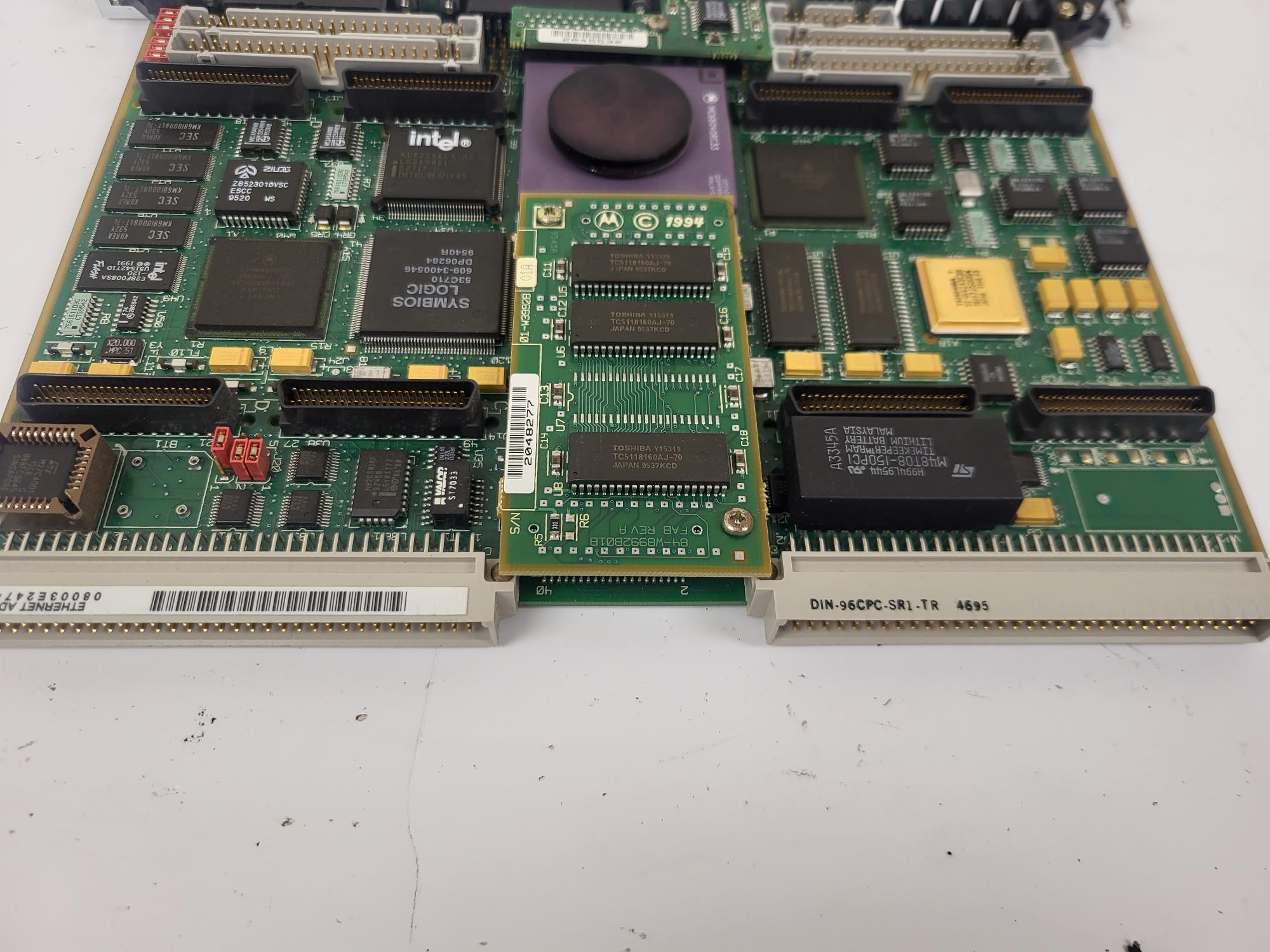

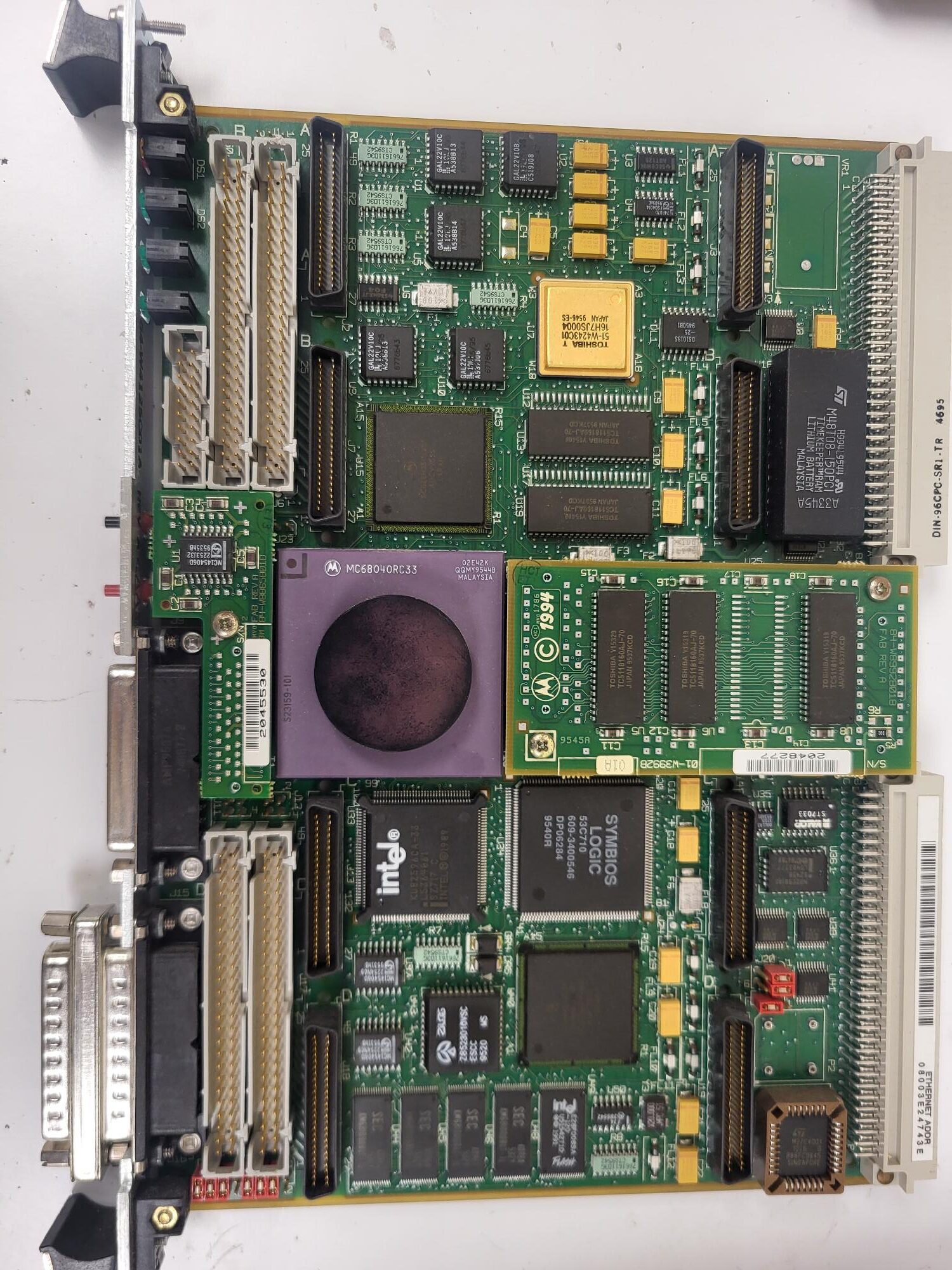

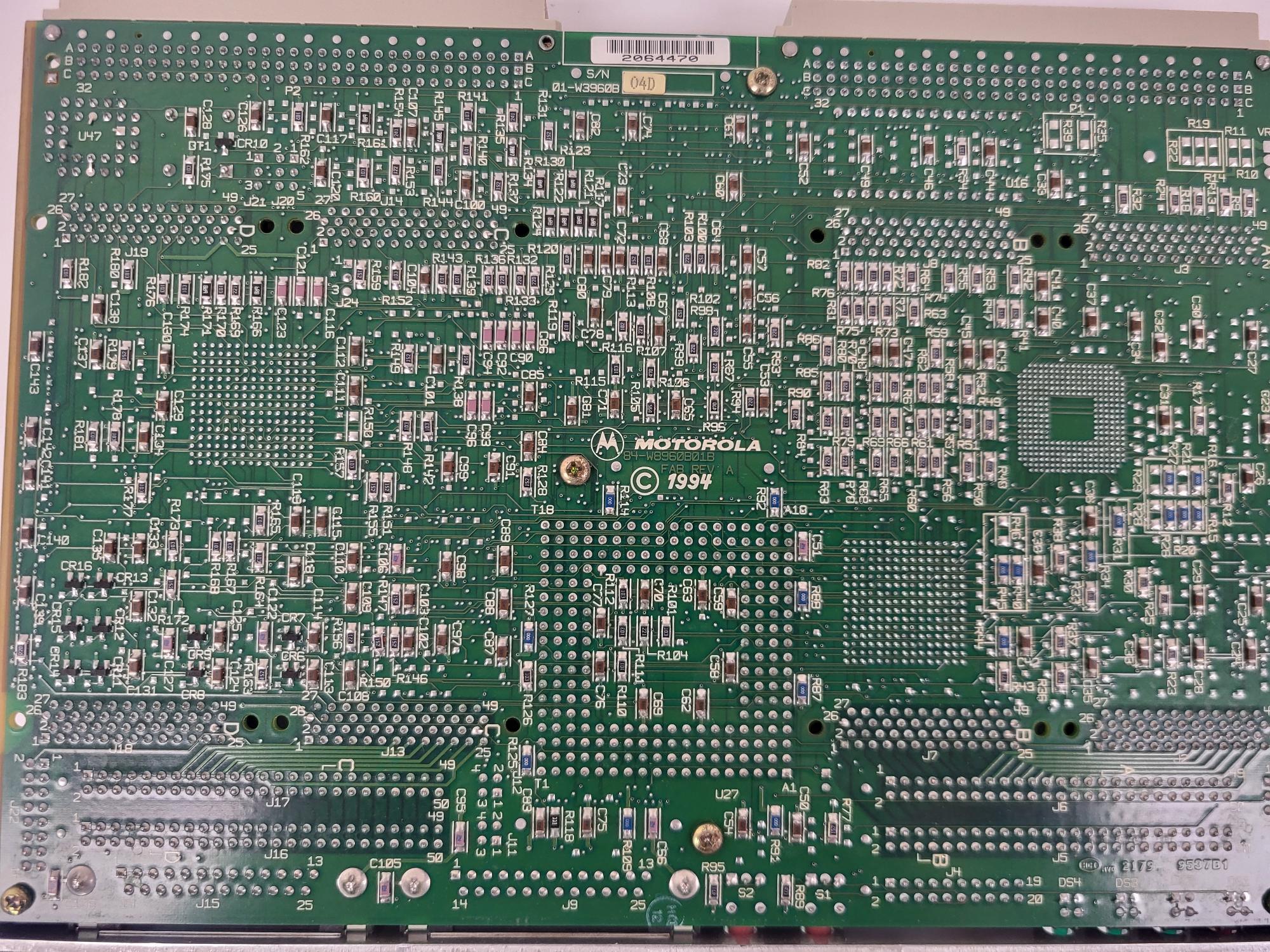

NOTE: There are two different variations, please check the gallery images.

he MVME162-533A is a 6U VME single-board computer developed by Motorola (later Emerson). It features:

• A 32-bit MC68040 (or MC68LC040) CPU, operating at 32 MHz (with options for 25 MHz) and equipped with 8KB cache, MMU, and FPU (for full 68040 models)

• Main memory ranging from 4MB up to 16MB DRAM, depending on the configuration

• 512 KB battery-backed SRAM plus 1MB onboard flash for firmware or monitor/debugger usage

Interfaces & Features

• VMEbus support: Full A32/D64 master-slave interface, including system controller capabilities and high-performance DMA (supporting VME D64 and local bus bursts)

• I/O Capabilities:

  • Up to four IndustryPack (IP) module slots for customizable I/O expansion

  • Built-in dual serial ports (RS-232).

  • Ethernet (via Intel 82596CA chipset) and SCSI interfaces on board, depending on the variant

Additional Technical Details

• Includes a VMEbus Interface ASIC supporting DMA and local bus operations, including performance figures (e.g., up to 42 MB/s bursts at 32 MHz)

• Designed for embedded industrial applications with robust features and optional reliability enhancements

Summary Table
