Anaheim Automation MDM40001 Motor Driver

Anaheim Automation MDM40001 Motor Driver

UNTESTED

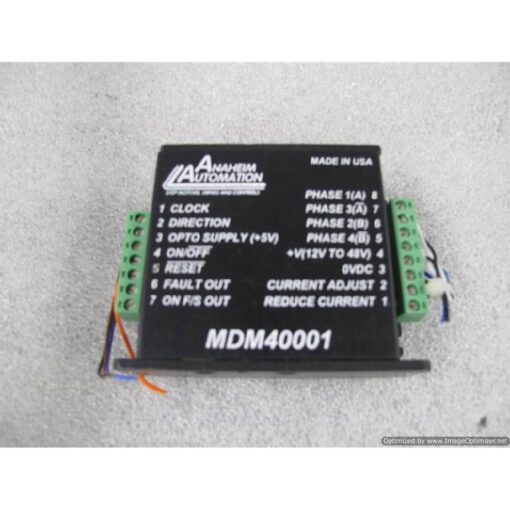

The MDM40001 is a high-performance microstepping motor driver designed for precision control of stepper motors in automation and motion-control applications. It’s engineered to be compact, low cost, and easy to interface, making it suitable for both prototype and production environments.

Key Features:

• Designed to drive bipolar stepper motors (4, 6, or 8 lead configurations).

• Nominal input voltage: 24 – 40 V DC.

• Delivers up to 4 A peak current per phase for strong motor performance.

• High-frequency (20 kHz) current chopping reduces ripple and heating.

• Selectable microstepping: from 400 to 51,200 steps per revolution via onboard DIP switches for smooth motion and fine positioning.

• Protection features: short-circuit protection and over-temperature shutdown enhance reliability.

• Optically isolated inputs improve noise immunity.

• Provides a fault output for error signaling and an “at full step” output for positional feedback.

• Compact dimensions (approximately 3.7″ × 3.0″ × 1.2″).

Typical Uses: Ideal for CNC machines, robotics, automation systems, and any application requiring precise stepper motor control where cost, size, and performance must be balanced.
