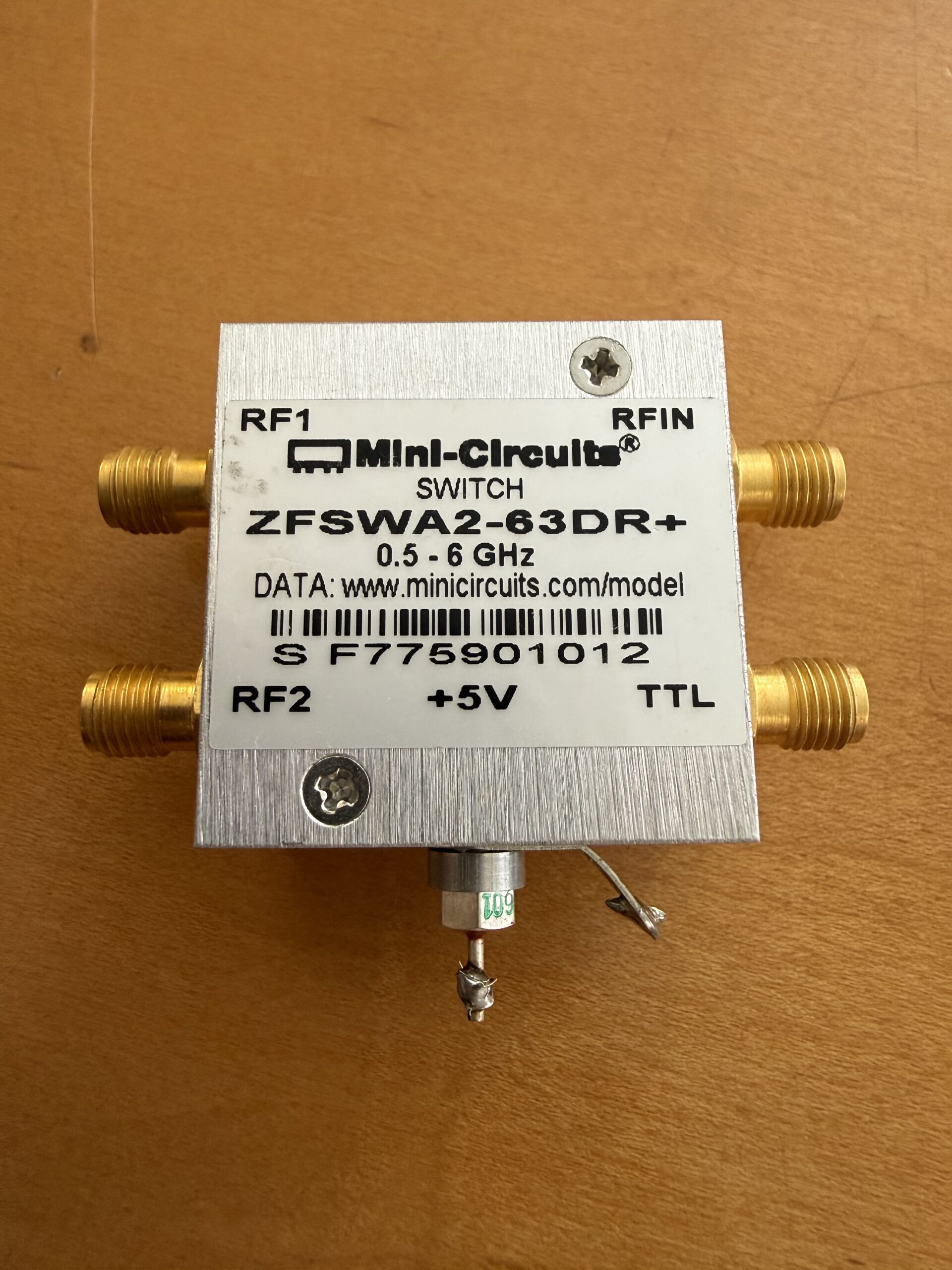

Mini-Circuits ZFSWA2-63DR+ SPDT RF switch

Product Description

Mini-Circuits ZFSWA2-63DR+ SPDT Reflective RF Switch – DC to 6 GHz

A high-performance, single-pole double-throw (SPDT) reflective RF switch designed for broadband signal routing in test, communications, and RF system applications.

📡 Key Specifications (Typical):

• Frequency Range: 0.1 GHz to 6.0 GHz

• Configuration: SPDT (Reflective)

• Insertion Loss: <1.2 dB (typ.)

• Isolation: >60 dB (typ.)

• VSWR: <1.4:1 (typ.)

• RF Power Handling: +30 dBm (max.)

• Control Voltage: +5 V / 0 V (TTL-compatible)

• Switching Speed: <10 µs (typ.)

• Connectors: SMA female (3 ports: RF Common, RF1, RF2)

• Operating Temperature: -40°C to +85°C

🔧 Common Applications:

• Test & Measurement: Signal routing in automated test systems, RF instrument switching

• Wireless Communications: Transmit/receive (T/R) switching, signal path selection

• Radar & EW Systems: Fast switching for channel selection or redundancy

• R&D & Prototyping: Flexible signal path configuration in lab setups

• Satellite & Aerospace: RF signal management in compact systems
