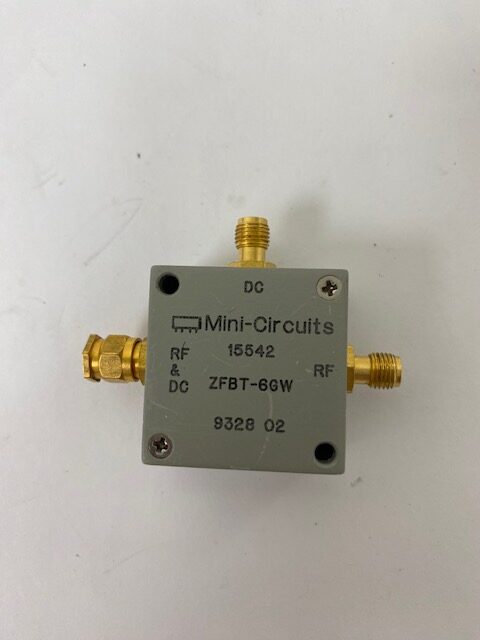

Mini-Circuits ZFBT-6GW Bias Tee

📘 Official Specs & Features

• Wideband operation: 0.1 MHz to 6000 MHz

• Low insertion loss: typically 0.6 dB, max ~1.4 dB (up to 3 GHz)

• Typical isolation ~40 dB (DC‑RF)

• Handles up to 30 dBm RF power, 30 V DC, and 0.5 A DC current

• Rugged, coaxial with SMA connectors; case temperature range from –55 °C to +100 °C

Great choice for biasing RF circuits like amplifiers, laser diodes, active antennas, or DC return/test ports.
