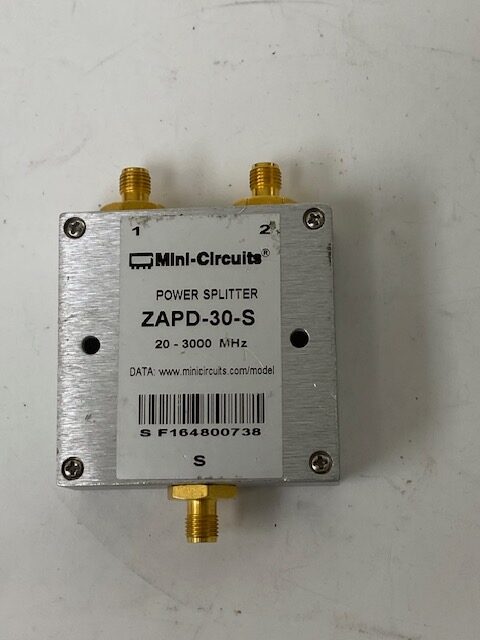

The Mini-Circuits ZAPD-30-S is a 2-way power splitter/combiner designed for RF applications spanning 20 to 3000 MHz. It operates with a characteristic impedance of 50 ohms and features SMA connectors.
Key Features:
-
Wideband Operation: Covers frequencies from 20 to 3000 MHz.
-
Low Insertion Loss: Typically 1.4 dB.
-
Excellent Amplitude Unbalance: Approximately 0.1 dB.
-
Excellent Phase Unbalance: Approximately 1 degree.
-
Isolation: Minimum of 14 dB.
-
Power Handling: Maximum input power of 1W as a splitter.
Applications:
The ZAPD-30-S is suitable for various applications, including:
-
UHF TV/DVT
-
Aircraft radio navigation
-
PCS/cellular/GSM
| Weight | 1 lbs |
|---|---|
| Dimensions | 6 × 3 × 2 in |
