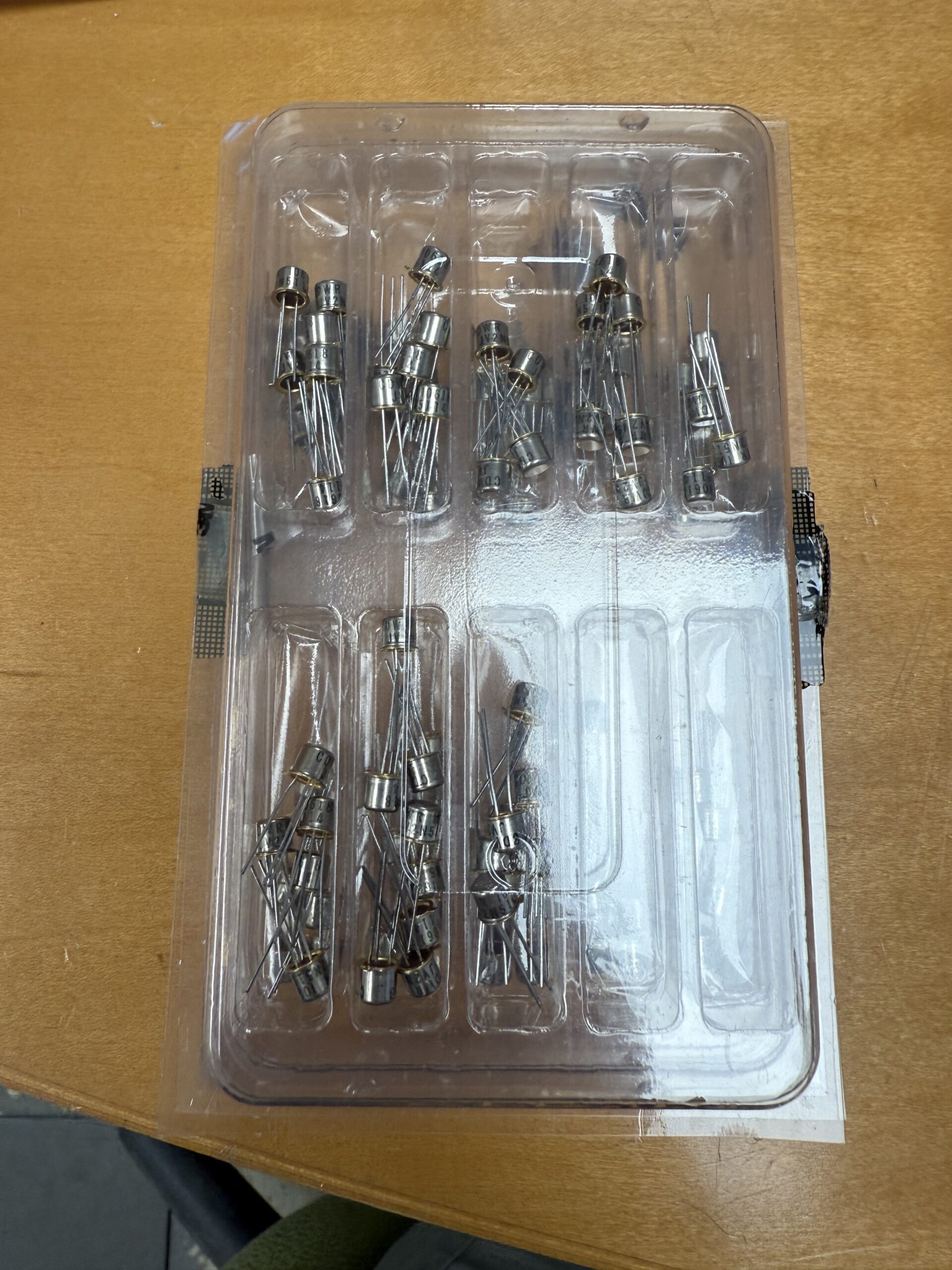

Product Overview
The Microchip JANTXV2N5151 is a high-reliability PNP silicon power transistor designed for applications requiring robust performance in demanding environments. Compliant with MIL-PRF-19500/545 standards, this transistor is ideal for aerospace, defense, and industrial applications where stringent quality and reliability are paramount.
Key Specifications
- Transistor Type: PNP
- Collector-Emitter Voltage (V<sub>CEO</sub>): -80 V
- Collector Current (I<sub>C</sub>): -2 A
- Power Dissipation (P<sub>D</sub>): 1 W
- DC Current Gain (h<sub>FE</sub>): 30 (minimum) at I<sub>C</sub> = 2.5 A, V<sub>CE</sub> = 5 V
- Package: TO-39 (TO-205AD) through-hole
Key Features
- High Reliability: Qualified to MIL-PRF-19500/545 standards, ensuring dependable performance in critical applications.
- Wide Operating Temperature Range: Capable of operating from -65°C to 200°C, suitable for extreme environmental conditions.
- Low Collector-Emitter Saturation Voltage: V<sub>CE(sat)</sub> of 1.5 V at I<sub>C</sub> = 5 A, enhancing efficiency in switching applications.
- Hermetically Sealed Package: TO-39 metal can package provides protection against environmental factors, ensuring longevity.
- Fast Switching Characteristics: Turn-on time of 0.5 µs and turn-off time of 1.5 µs, suitable for high-speed applications.
Conclusion
The Microchip JANTXV2N5151 transistor is an essential component for professionals seeking reliable and efficient performance in high-stress environments. Its compliance with military standards and robust design make it invaluable for aerospace, defense, and industrial applications requiring precision and durability.
