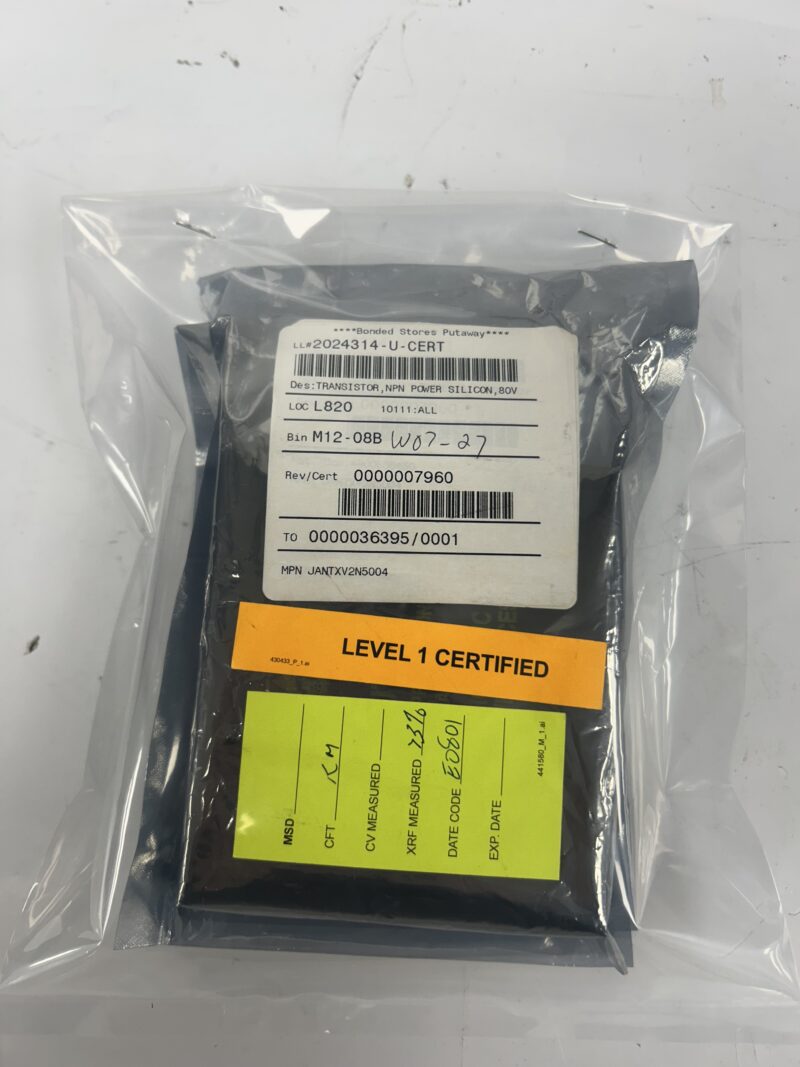

Microchip JANTXV2N5004 NPN Transistor – LOT OF 11

The Microchip JANTXV2N5004 is a high-reliability silicon NPN bipolar junction transistor (BJT), designed for use in demanding military, aerospace, and high-performance industrial applications. Certified under the stringent JANTXV quality standards, this transistor offers excellent electrical performance, durability, and radiation resistance, making it ideal for environments requiring superior reliability.

Key Specifications:

• Transistor Type: NPN
• Voltage Rating (VCEO): 300V
• Current Rating (IC): 10A
• Power Dissipation (Ptot): 250W
• DC Current Gain (hFE): 10 (minimum)
• Operating Temperature Range: -65°C to +200°C
• Package Type: TO-3 (hermetically sealed for high reliability)
• Radiation Hardening: Designed for enhanced tolerance to radiation in space and defense applications.
• Certifications: JANTXV qualification ensures compliance with MIL-PRF-19500 requirements for high-reliability electronic components.

Key Features:

1. High Voltage and Current Capability:
   • Rated for 300V collector-emitter voltage and 10A collector current, making it suitable for high-power applications.
2. Robust Power Dissipation:
   • Capable of handling up to 250W, enabling use in power amplification and switching circuits.
3. Radiation Resistance:
   • Built to withstand harsh environments with exposure to radiation, suitable for space and military-grade applications.
4. Hermetically Sealed Package:
   • TO-3 metal can package ensures protection against moisture, dust, and mechanical stress, enhancing longevity and reliability.
5. Wide Temperature Range:
   • Operates reliably across extreme temperatures, from -65°C to +200°C, supporting demanding thermal conditions in critical systems.
6. JANTXV Certification:
   • Manufactured under the JANTXV screening process, adhering to rigorous quality and performance standards required by military and aerospace applications.

Applications:

1. Military and Aerospace Systems:
   • Used in radar systems, communication equipment, avionics, and space-grade systems requiring high reliability and radiation resistance.
2. Industrial Power Systems:
   • Ideal for use in motor drives, power supplies, and industrial automation where high power and durability are crucial.
3. High-Power Amplifiers:
   • Functions effectively in audio, RF, and power amplification systems needing high voltage and current capacity.
4. Switching Applications:
   • Suitable for use in high-speed switching circuits and pulse systems due to its fast switching characteristics.
5. Harsh Environment Electronics:
   • Designed for use in environments with extreme temperatures, high radiation levels, and mechanical stresses, such as defense systems and space exploration equipment.

Conclusion:
The Microchip JANTXV2N5004 is a versatile and reliable NPN transistor engineered for high-performance applications in the most demanding environments. Its high power handling, radiation resistance, and compliance with JANTXV standards make it the go-to choice for professionals in military, aerospace, and industrial sectors. Whether it’s powering a satellite or enhancing a defense system, this transistor provides the performance and durability required for critical operations.
