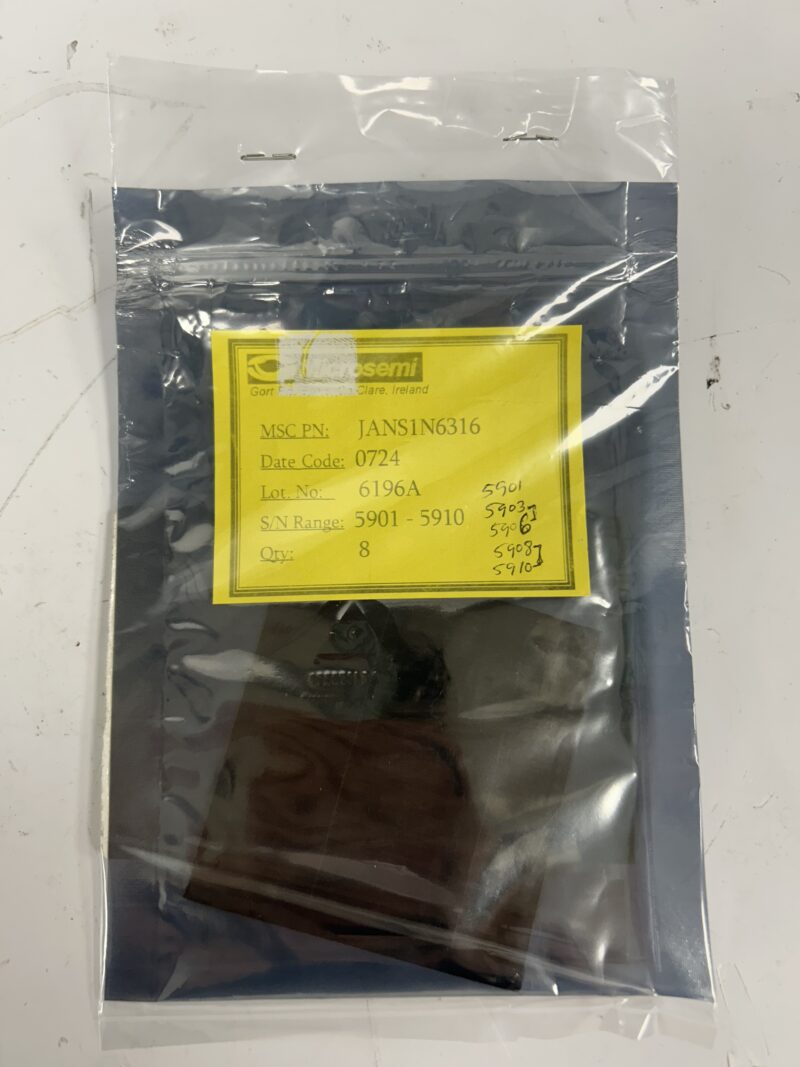

Microchip JANS1N6316 TVS Diode (LOT OF 5)

The Microchip JANS1N6316 is a high-reliability silicon transient voltage suppressor (TVS) diode designed for critical applications in military, aerospace, and industrial environments. It provides robust overvoltage protection for sensitive electronic components, ensuring reliable operation in extreme conditions. Manufactured to stringent JANS (Joint Army-Navy Space) standards, the 1N6316 guarantees top-tier quality, durability, and performance.

Key Specifications:

• Diode Type: Transient Voltage Suppressor (TVS)
• Peak Pulse Power Dissipation (PPP): 1500W (10/1000μs waveform)
• Reverse Standoff Voltage (VRWM): 13V
• Breakdown Voltage (VBR): 14.3V to 15.8V
• Clamping Voltage (VC): 21.5V (at peak pulse current)
• Peak Pulse Current (IPP): 70A
• Operating Temperature Range: -65°C to +175°C
• Package Type: Hermetically Sealed Axial Lead (DO-13)
• Certifications: JANS certification ensures MIL-PRF-19500 compliance.

Key Features:

1. JANS Certification:
   • Built to meet MIL-PRF-19500 specifications, offering unparalleled reliability and quality for mission-critical applications.
2. High Surge Capability:
   • Withstands up to 1500W peak pulse power, providing superior protection against voltage transients caused by lightning, ESD, and switching surges.
3. Wide Voltage Range:
   • Operates at a reverse standoff voltage of 13V, with a clamping voltage of 21.5V, ensuring effective suppression of overvoltage conditions.
4. Hermetically Sealed Package:
   • DO-13 axial lead construction provides environmental and mechanical protection, ensuring consistent performance under harsh conditions.
5. Extended Temperature Range:
   • Reliable operation from -65°C to +175°C, making it suitable for use in extreme temperature environments.
6. Low Leakage Current:
   • Minimal leakage current in reverse bias ensures efficient performance without unnecessary power loss.

Applications:

1. Military and Aerospace Electronics:
   • Protects avionics, missile systems, and spaceborne electronics from voltage transients.
2. Industrial and High-Reliability Systems:
   • Ideal for critical infrastructure, such as power grids and transportation systems.
3. Communication Equipment:
   • Safeguards sensitive circuits in telecommunication systems against lightning-induced surges.
4. Power Management Systems:
   • Ensures the safety and longevity of power supply units and battery systems.
5. Harsh Environment Electronics:
   • Built for applications requiring reliable performance in extreme environmental conditions.

Conclusion:
The Microchip JANS1N6316 is the ideal transient voltage suppressor diode for professionals requiring high-reliability components for critical applications. Its robust design, coupled with JANS certification, makes it a trusted choice for military, aerospace, and industrial applications where protection against voltage transients is vital.
