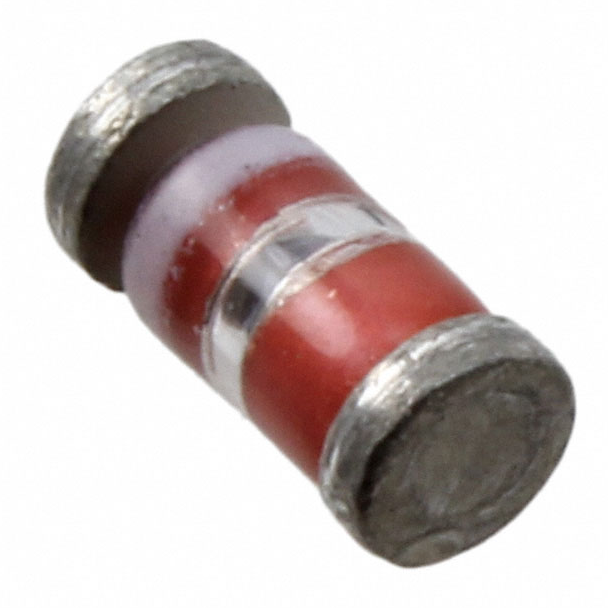

Microchip JANS1N5819UR-1 – LOT OF 8

Product Overview
The Microchip Technology JANS1N5819UR-1 is a high-reliability, military-grade Schottky barrier rectifier diode. Designed for critical applications, this diode offers exceptional performance in high-temperature and high-reliability environments. Its low forward voltage drop and fast switching capabilities make it ideal for aerospace, defense, and other demanding industries.

Key Features

• Schottky Barrier Diode: Provides efficient rectification with minimal power loss, ideal for high-performance circuits.
• High Reliability: Manufactured to meet stringent JANS (Joint Army-Navy Specification) standards, ensuring top-notch performance in mission-critical applications.
• Low Forward Voltage Drop: Reduces power dissipation, improving efficiency in power supply and rectification systems.
• Fast Switching Speeds: Enables efficient operation in high-frequency applications, minimizing delay in circuit response.
• Hermetically Sealed Package: Protects the diode against environmental factors such as moisture and dust, ensuring durability and longevity.
• MIL-PRF-19500 Qualified: Certified to meet military specifications, making it suitable for use in defense and aerospace electronics.

Specifications

• Part Number: JANS1N5819UR-1
• Diode Type: Schottky rectifier
• Maximum Reverse Voltage (VR): 40V
• Forward Current (IF): 1A
• Forward Voltage (VF): 0.45V (typical at 1A)
• Reverse Leakage Current (IR): 1mA at VR maximum
• Operating Temperature: -65°C to +175°C
• Package Type: Hermetic axial leaded package (UR-1)
• Compliance: MIL-STD-750 for testing and performance validation

Applications

• Aerospace and Defense: Designed for use in avionics, missile systems, and other military-grade electronic systems.
• Power Supplies: Ideal for rectification in high-efficiency power supply systems.
• High-Frequency Circuits: Suitable for fast-switching applications such as DC-DC converters and RF signal processing.
• Critical Industrial Systems: Reliable performance in harsh industrial environments requiring high endurance.

Conclusion
The Microchip Technology JANS1N5819UR-1 is a premium choice for engineers and designers requiring a high-reliability Schottky diode. Its military-grade construction, energy-efficient performance, and robust design make it a dependable solution for aerospace, defense, and other critical applications.
