Micro-Lite Optic 60mm ring light

Product Description

Micro-Lite Optic 60mm Ring Light – Fiber Optic Illuminator for Microscopes

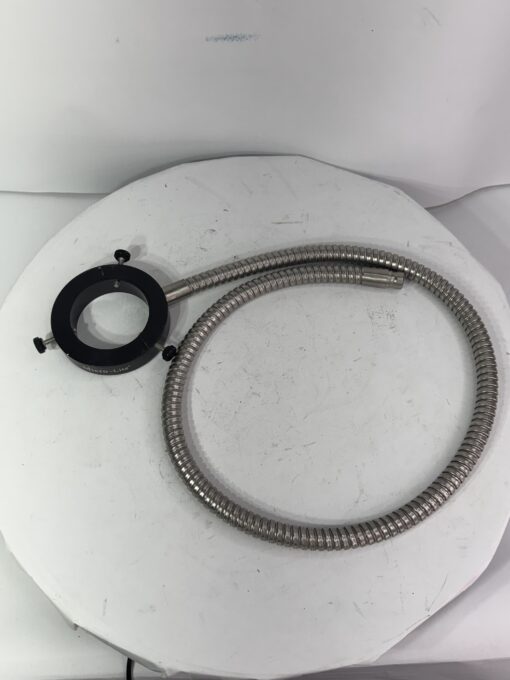

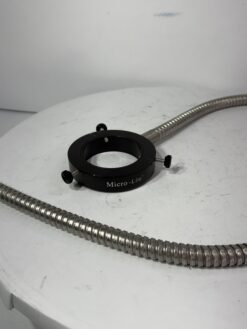

This is a Micro-Lite Optic 60mm ring light, a flexible fiber optic illuminator designed to provide cool, shadow-free lighting for stereo microscopes, inspection scopes, or magnifiers. With a 60mm outer diameter and a 15mm inner ferrule, it fits a wide range of microscope objectives and can be used for circuit board inspection, assembly, dissection, or detailed visual work.

Key Specifications:

• Light Type: Fiber optic ring light (requires separate light source)

• Ring Diameter: 60 mm outer diameter

• Inner Ferrule: 15 mm inner diameter (fits around microscope objectives)

• Cable: 3 feet (approx. 0.9 meters) long fiber optic bundle

• Connector: Standard SMA or compatible ferrule for attachment to illuminator

• Illumination: Cold light (no heat transfer to specimen), even circumferential lighting

• Condition: Surplus – inspect for fiber breaks or connector wear

Why This Ring Light Is Useful:

• Shadow-Free Illumination: Even, directional light ideal for inspecting reflective or three-dimensional objects.

• Cool Operation: Fiber optic delivery removes heat from the specimen area.

• Versatile Sizing: 60mm diameter suits many stereo microscopes and inspection stations.

Applications:

• PCB & Component Inspection: For soldering, rework, or quality control under a stereo microscope.

• Biological Dissection & Entomology: Clear, cool lighting for detailed specimen work.

• Jewelry & Watchmaking: Precise illumination for small mechanical or gemstone inspection.

• Industrial Quality Control: Part inspection, surface defect detection, or assembly verification.

• Educational Labs: General-purpose microscope lighting for classrooms or training.
