This is a used product and has not been tested.

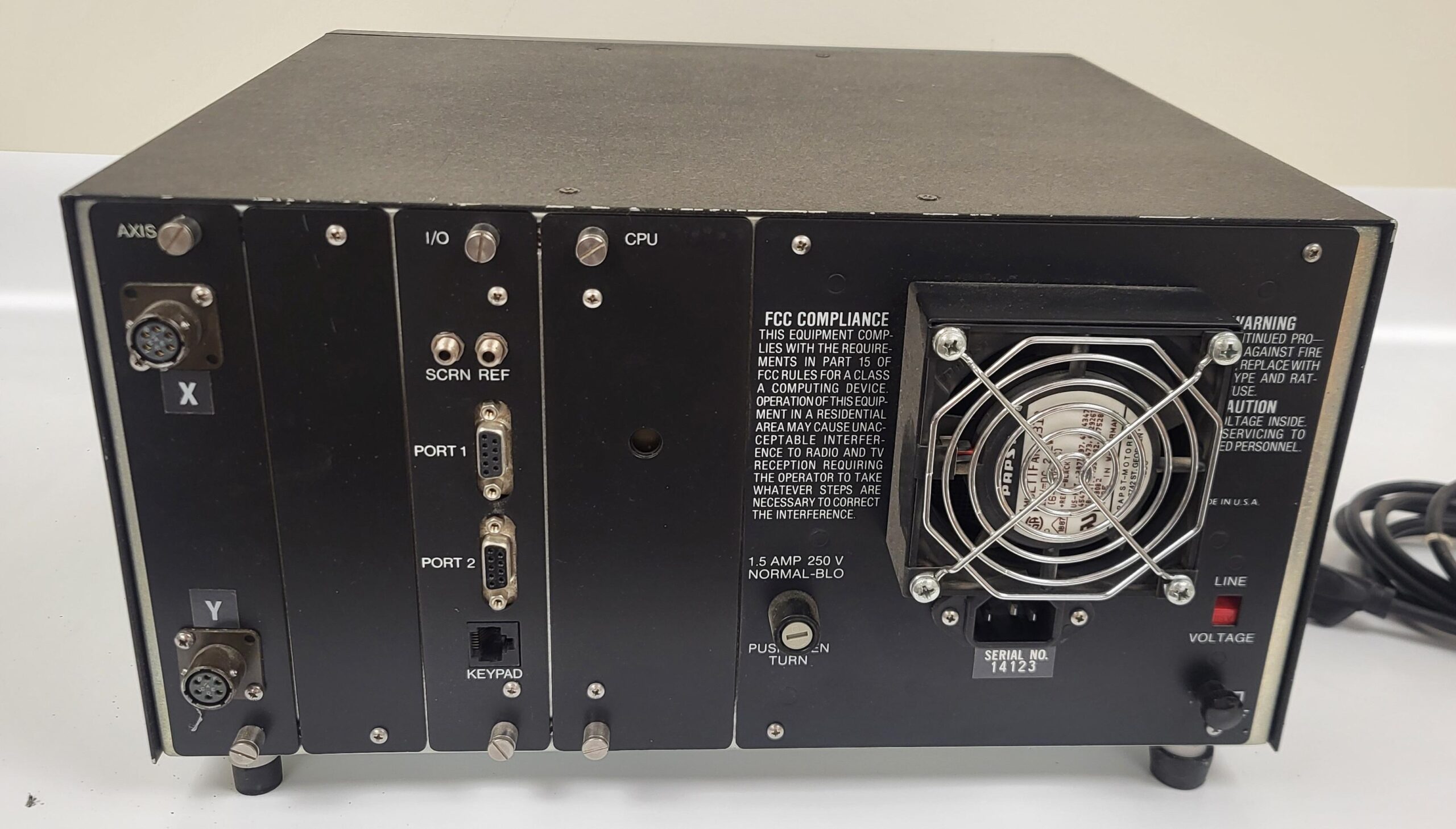

The Metronics Inc. QC3200 Quadra-Chek 3000 Digital Video Readout is a high-performance 2D measurement system designed for use with optical comparators, video measuring machines, and coordinate measuring machines (CMMs). Tailored for precision inspection environments, the QC3200 offers advanced digital readout capabilities with a user-friendly interface and intuitive menu navigation. It supports geometric functions such as point, line, circle, angle, distance, and more, enabling efficient feature capture and tolerance verification.
Key features include:
-

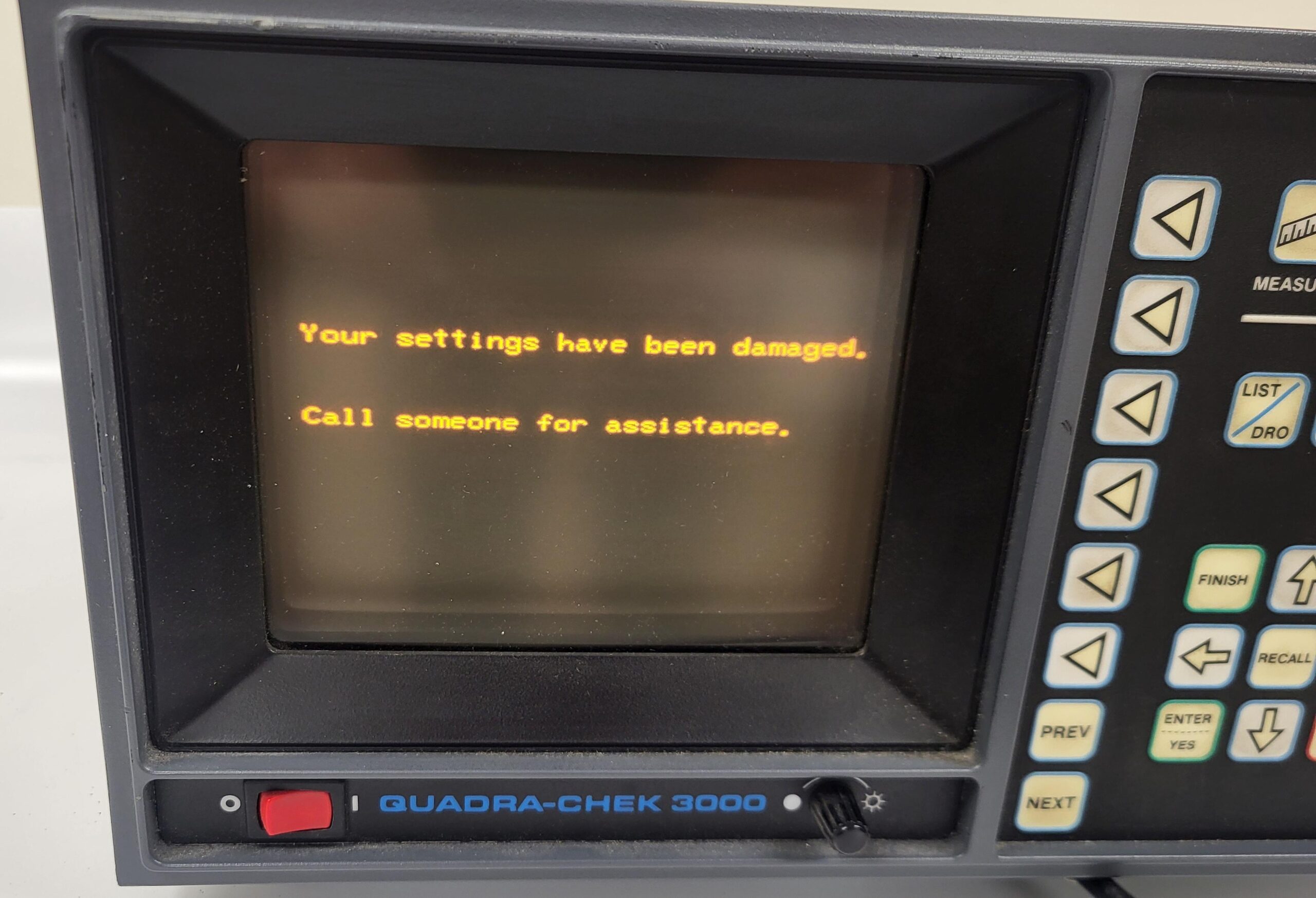

High-resolution LCD display with graphical interface
-

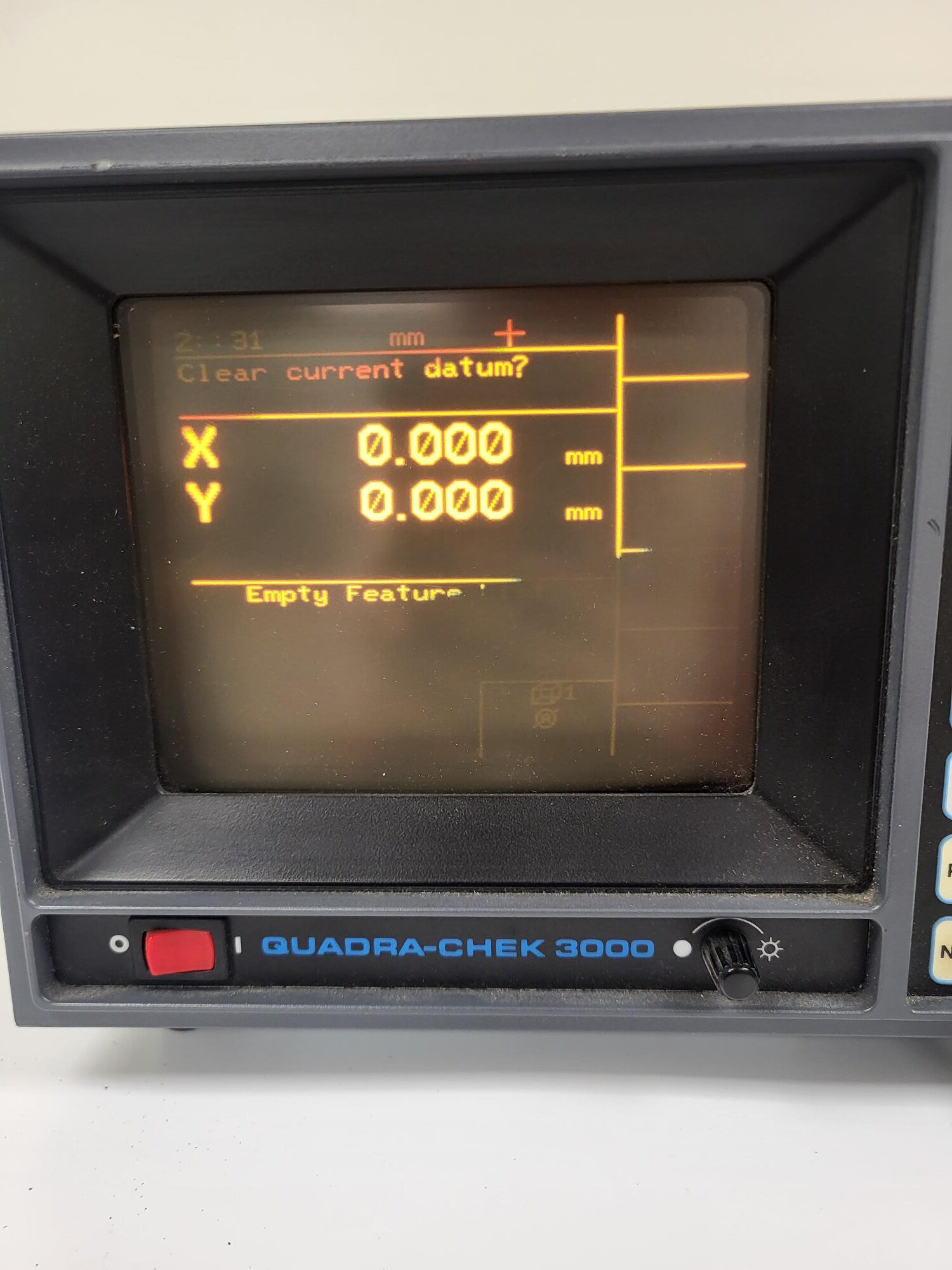

Multi-axis measurement (X, Y, and optional Z)
-
RS-232 and USB connectivity for data output and printer integration
-
Part programming and recall for repeat inspections
-
On-screen video edge detection and profile fitting
-
Data storage and statistical analysis capabilities
The QC3200 enhances measurement accuracy and productivity in metrology labs, manufacturing QA stations, and precision machining operations.
Typical Applications:
-
Dimensional inspection of machined parts
-
Optical comparator readout upgrade
-
Video measurement system enhancement
| Weight | 28.1 lbs |
|---|---|
| Dimensions | 20 × 20 × 12 in |
