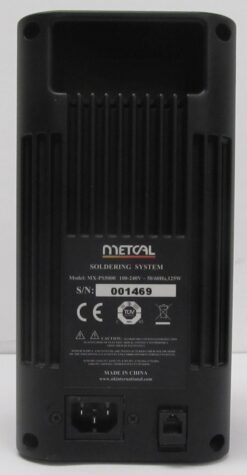

Metcal MX-PS5000 Soldering Iron Power Supply

Overview

The Metcal MX-PS5000 is a high-performance power supply designed for use with Metcal’s advanced soldering, desoldering, and rework systems. Its compact and efficient design provides stable and precise power delivery, ensuring optimal performance for demanding electronics assembly and repair tasks. The unit supports SmartHeat® technology, which ensures consistent tip temperature without calibration, making it ideal for both professional and industrial applications.

---

Key Features

1. SmartHeat® Technology
   • Automatically adjusts power based on thermal demand, maintaining consistent performance without the need for manual calibration.
2. Multi-Port Capability
   • Supports dual simultaneous handpiece operation for enhanced productivity.
3. Compact Design
   • Space-saving construction suitable for crowded workbenches.
4. Energy-Efficient Operation
   • Automatically enters a sleep mode when not in use, conserving power and extending tip life.
5. Durability
   • Built with industrial-grade materials for long-lasting reliability in high-demand environments.
6. Compatibility
   • Works with a variety of Metcal handpieces and soldering tools, including tweezers, soldering irons, and desoldering guns.

---

Specifications

Feature	Details
Input Voltage	100–240 VAC, 50/60 Hz
Output Power	80 Watts per channel
Temperature Range	Controlled via SmartHeat® (no manual setting required)
Handpiece Compatibility	Compatible with MX series tools
Dimensions	13.3 cm x 13.3 cm x 23.5 cm
Weight	~2.7 kg
Certifications	RoHS and CE compliant

---

Applications

1. Electronics Assembly
   • Ideal for PCB soldering, rework, and repair tasks.
2. Industrial Repair
   • Handles high-precision soldering in industrial and manufacturing settings.
3. Prototyping and R&D
   • Supports efficient and reliable soldering for electronics development.
4. Multi-User Environments
   • Suitable for production lines or shared workstations requiring consistent performance.

---

Advantages

1. Ease of Use
   • Plug-and-play functionality with no temperature calibration required.
2. Enhanced Productivity
   • Dual-port capability allows two operators to work simultaneously.
3. Energy Saving
   • Power-saving features reduce operational costs and extend tool life.
4. Precision and Reliability
   • Ensures precise heat delivery for sensitive and complex soldering tasks.
5. Durable Construction
   • Rugged design withstands the demands of daily use in professional settings.

---

Limitations

1. Cost
   • Premium features come at a higher price point compared to basic soldering power supplies.
2. Tool Compatibility
   • Limited to Metcal MX series handpieces and accessories.

---

Technical Summary

Attribute	Details
Power Modes	Single and dual-port modes
Sleep Mode	Auto-sleep for extended tip life
Thermal Control	Dynamic with SmartHeat® technology
Environment	Operating temperature: 10°C–40°C
Safety Features	Overload protection, compliance with safety standards
