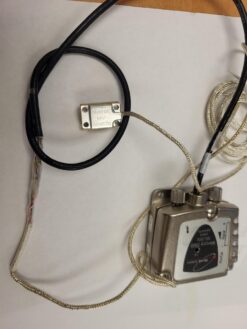

Mercury 3500 SS-350C Programmable Encoder

This item is untested.  We are not able to test this item.  It is being sold “as is”  final sale

The Mercury 3500 SS‑350C is a highly accurate, programmable encoder system from MicroE’s Mercury 3500 series.

It interfaces with Mercury readheads for high-precision position feedback in both linear and rotary motion applications.

Its programmable interpolation allows setting resolution anywhere from 5 μm down to 5 nm, supporting up to 67 million counts per revolution.

Core Features & Specifications

• Output Type: A‑quad‑B quadrature signals plus index output (non‑serial version).

• Programmable Interpolation: Up to ×4096 interpolation for fine resolution (0.005 μm/count)

• High Noise Immunity & Small Form Factor: Compact sensor head design, faster to align, and suitable for tight installation spaces .

• SmartPrecision Electronics: Integrated interpolation logic ensures stable pulse output and robust signal integrity.

• Compatible Inputs: Works with Mercury series readheads for both linear and rotary scale tracking.

🧩 Compatible Systems

The SS‑350C module is part of the Mercury 3500 family and pairs with Mercury readhead modules and matching scales (linear or rotary).

The interface drawing indicates pinouts and mounting details for scale alignment, cabling, and connectors.

Typically, compatible readhead models include Mercury M05, M10, or M20, which combined with SS‑350C form a complete position encoder system.
