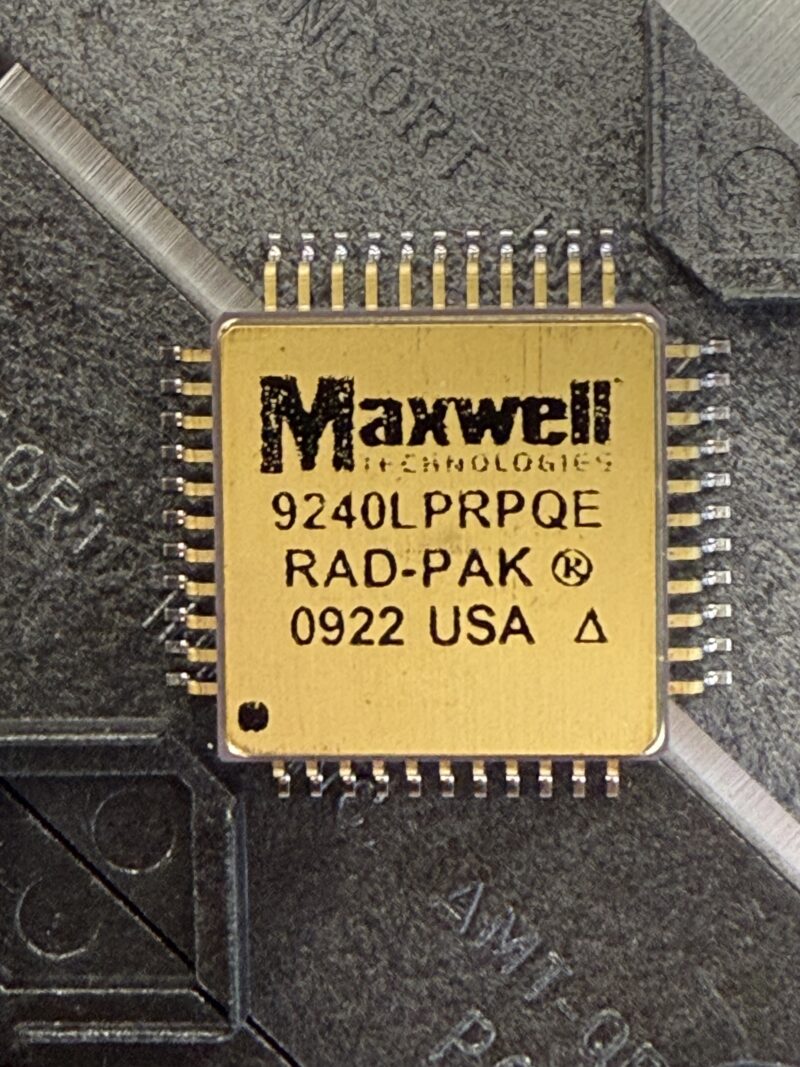

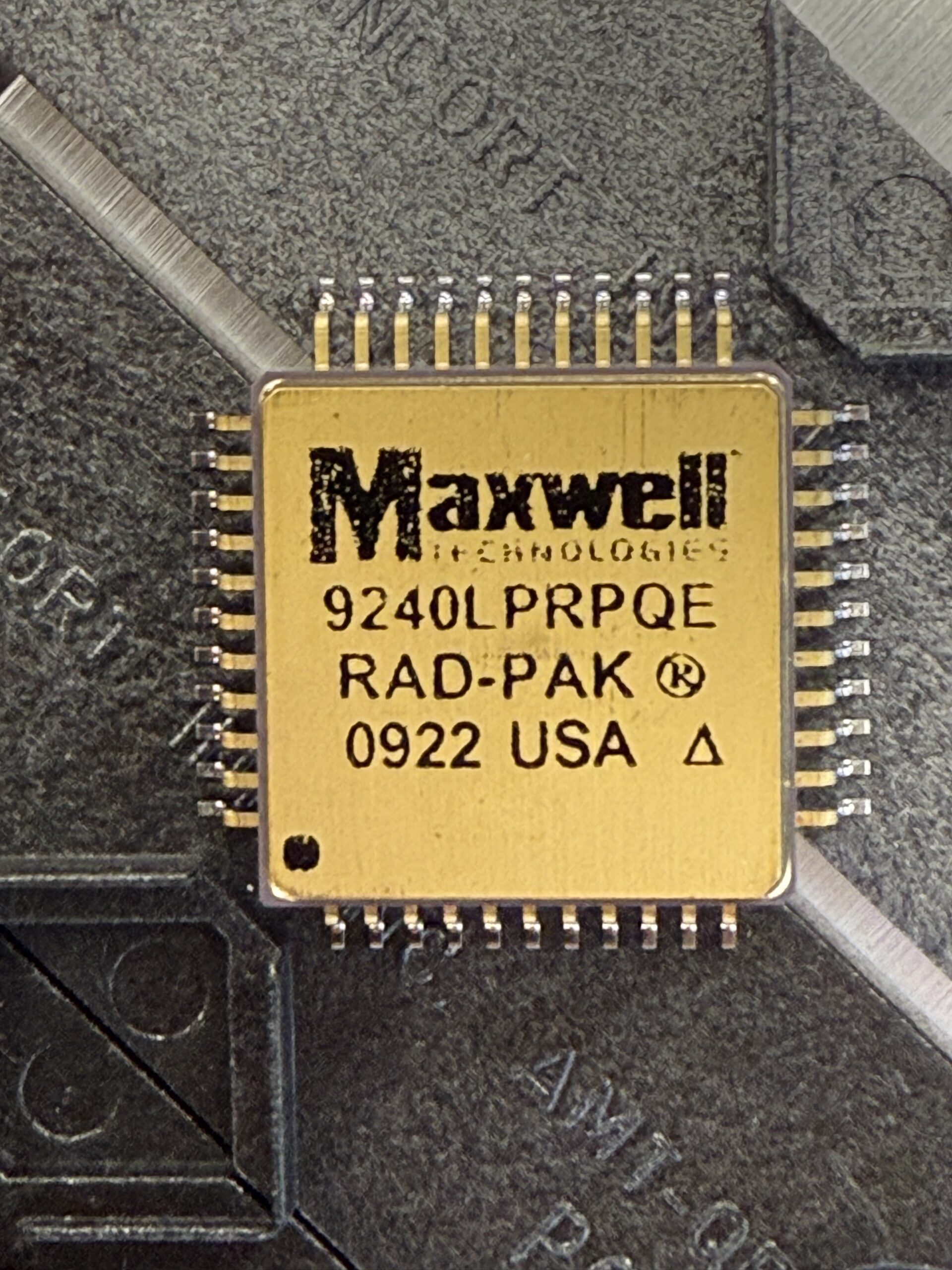

Maxwell Technologies 9240LPRPQE

The Maxwell Technologies 9240LPRPQE is a precision low dropout (LDO) voltage regulator designed for high-performance and low-power applications. This device ensures stable and efficient voltage regulation, ideal for systems requiring low quiescent current and minimal voltage drop between input and output. It is particularly useful in battery-powered devices and sensitive electronic systems where power efficiency is critical.

Key Specifications:

• Output Voltage: 5V (nominal)

• Input Voltage Range: 5.5V to 15V

• Output Current: Up to 1A

• Dropout Voltage: Low dropout voltage for improved efficiency, typically around 0.2V

• Package Type: PQFN-16 (small footprint, surface mount)

• Operating Temperature Range: -40°C to +125°C

Key Features:

• Low Dropout Voltage – Maximizes efficiency in low-voltage conditions, reducing power loss and heat generation.

• High Output Accuracy – Ensures stable and precise voltage regulation for reliable operation of sensitive components.

• Thermal and Overcurrent Protection – Features built-in thermal shutdown and current limiting to prevent damage from overloading or overheating.

• Compact Surface-Mount Package – Space-efficient design makes it suitable for use in compact, high-density PCB layouts.

• Wide Input Voltage Range – Provides flexibility in input voltage levels, allowing it to work with a variety of power sources.

Applications:

• Battery-Powered Devices – Perfect for portable and wearable electronics where battery life and efficiency are essential.

• Consumer Electronics – Used in devices like smartphones, cameras, and audio systems that require reliable voltage regulation.

• Embedded Systems – Ideal for embedded microcontrollers, sensors, and IoT devices, ensuring stable operation and power efficiency.
