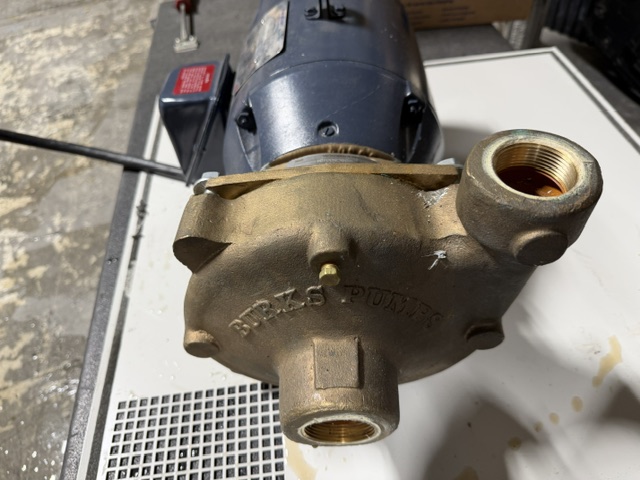

Marathon Motors 182TTDB6007 Motor with Burks Pump 68C500101

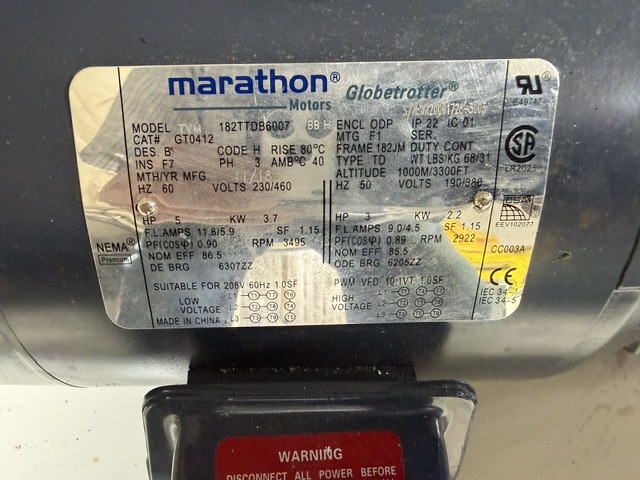

Marathon 182TTDB6007 (Motor) — Key Specs

This is a standard NEMA 182JM pump-duty motor:

• Power: 5 HP (3-phase)
• Speed: ~3495 RPM (3600 synchronous)
• Voltage: 230/460V (60 Hz), 190/380V (50 Hz)
• Frame: 182JM (pump mount, threaded shaft)
• Enclosure: Open Dripproof (ODP)
• Duty: Continuous
• Efficiency: ~86–87% (NEMA Premium class)
• Shaft: 7/8″ JM threaded shaft (pump-coupled design)

👉 This motor is specifically designed to bolt directly to a pump housing like Burks uses.

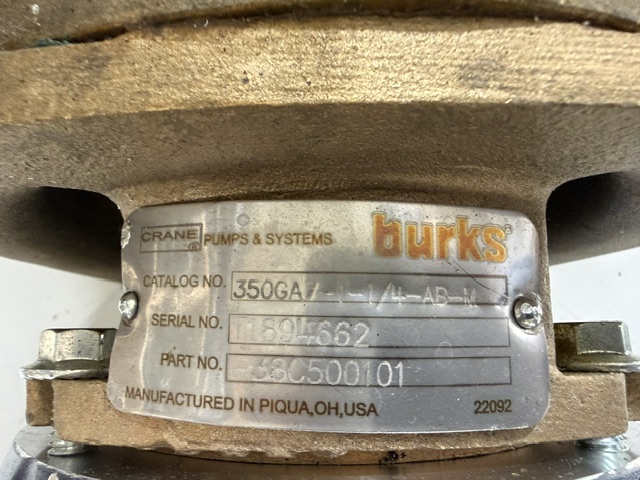

🌀 Burks 68C500101 Pump — What it implies

The Burks 68C series is typically:

• End-suction or close-coupled centrifugal pump
• Designed for NEMA JM frame motors (like your 182JM)
• Used in:
  • HVAC circulation
  • industrial fluid transfer
  • general utility pumping

Model 68C500101 generally corresponds to a configuration within:

• Cast iron pump housing
• Close-coupled mounting (no separate coupling)
• Direct motor shaft drive via JM threaded shaft

🔗 Compatibility (Important)

These two parts are designed to work together as a matched set if:

✔ Motor frame = 182JM
✔ Pump shaft interface = JM threaded (7/8″)
✔ HP rating = 5 HP class pump curve
✔ Speed = ~3500 RPM
