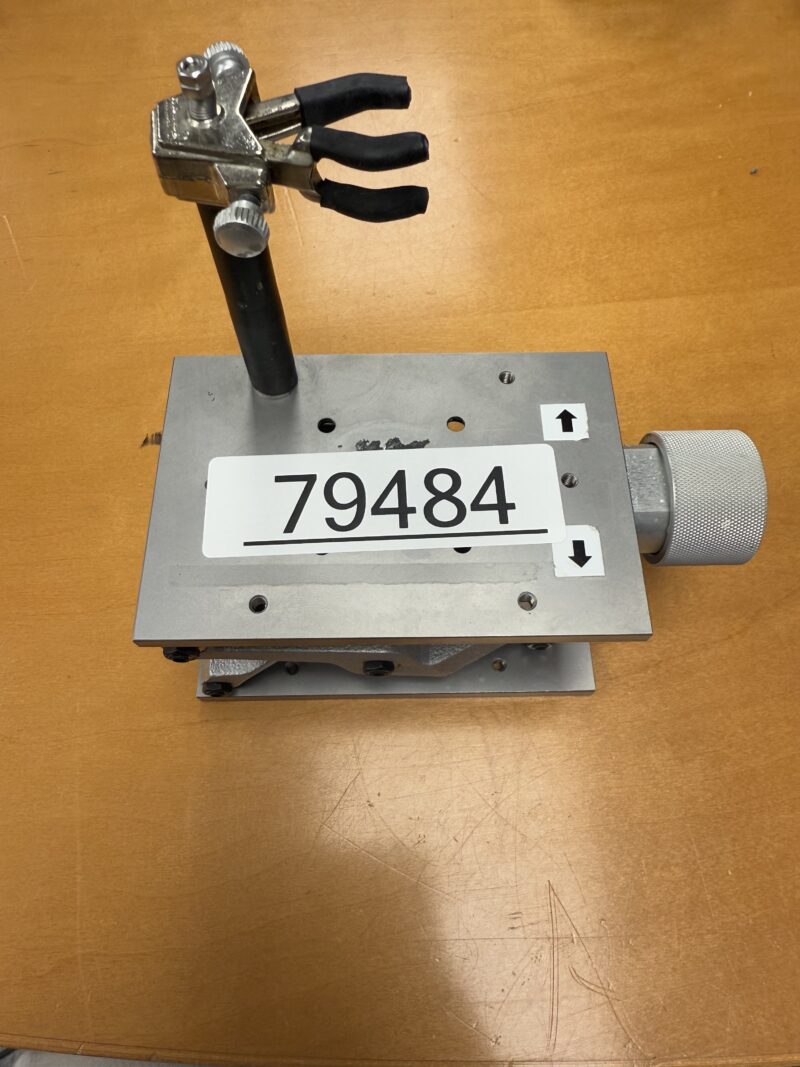

M-EL80 Fast Travel Lab Jack

Overview

The M-EL80 Fast Travel Lab Jack is a high-precision elevation platform designed for use in laboratories, research, and industrial settings. It provides rapid and accurate vertical positioning for optical, mechanical, and experimental equipment. The robust design and fast-travel mechanism make it ideal for applications requiring frequent height adjustments with minimal effort.

---

Key Features

1. Fast-Travel Mechanism
   • Allows for rapid vertical positioning, reducing setup time in experiments.
2. Precision Adjustment
   • Offers smooth and accurate height adjustments for delicate setups.
3. Robust Construction
   • Made with durable materials, ensuring long-term reliability and stability under load.
4. Compact Design
   • Space-efficient, suitable for tight lab spaces or setups with limited room.
5. Load Capacity
   • Handles substantial weight, making it versatile for various applications.
6. Height Range
   • Provides a broad range of vertical adjustment to accommodate different experimental requirements.
7. Locking Mechanism
   • Securely locks in place to prevent unwanted movement during operation.

---

Specifications

Feature	Details
Load Capacity	Up to 50 kg (varies by model)
Height Adjustment Range	0 to 80 mm
Platform Size	80 x 80 mm
Material	Anodized aluminum or stainless steel
Travel Speed	Fast-travel mechanism with fine-tuning
Weight	~1.5 kg

---

Applications

1. Optics and Photonics
   • Used for aligning lasers, lenses, and optical systems.
2. Laboratory Research
   • Elevates delicate equipment to precise heights for experiments.
3. Industrial Testing
   • Supports equipment in testing and quality assurance workflows.
4. Prototyping and Engineering
   • Adjusts positioning for mechanical or electronic prototypes.
5. Microscopy
   • Assists in positioning samples or imaging devices.

---

Advantages

1. Speed and Efficiency
   • Reduces the time needed for height adjustments.
2. Sturdy and Reliable
   • Stable operation under load, minimizing vibrations or movement.
3. Versatile
   • Suitable for a wide range of laboratory and industrial setups.
4. Ease of Use
   • Simple and intuitive operation with minimal maintenance required.
5. Compact and Portable
   • Easy to transport and integrate into various systems.

---

Limitations

1. Load Limits
   • May not support very heavy loads beyond the specified capacity.
2. Cost
   • Premium functionality may come with a higher price point.
3. Manual Operation
   • Not motorized; requires manual adjustment (optional motorized versions may be available).

---

Technical Summary

Attribute	Details
Precision	±0.1 mm
Material Finish	Anodized or polished for durability
Operating Temperature	0°C to 40°C
Maintenance	Periodic lubrication recommended
Compliance	Meets lab safety and performance standards
