Logus LM34BSL2X5 waveguide switch

Product Description

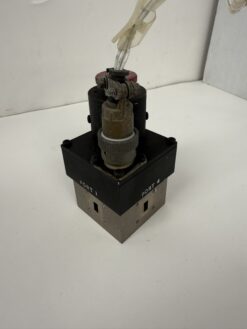

Logus LM34BSL2X5 WR34 Waveguide Switch

This waveguide switch provides signal routing for demanding microwave applications in the WR34 frequency band.

Key Specifications:

• Frequency Range: 2.5-3.5GHz (WR34 band)

• Configuration: 2-input × 5-output

• Interface: UG-599/U flange

• Insertion Loss: <0.5dB typical (when new)

• VSWR: <1.25:1

Condition:

⚠ MECHANICAL SWITCHING VERIFIED ONLY

⚠ FLANGE CONDITION VARIES (see photos)

Applications:

• Radar system maintenance

• Satellite ground stations

• Microwave test benches

• Military comms systems
