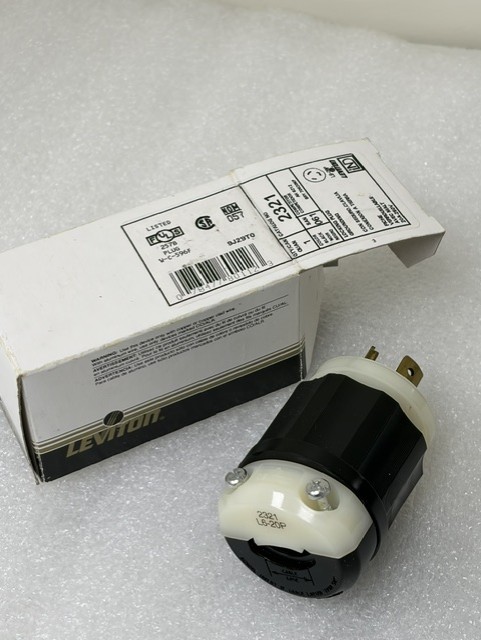

The Leviton 2321 is an industrial-grade NEMA L6-20P locking plug designed for demanding commercial and industrial power applications. It features a twist-lock configuration to prevent accidental disconnection.
Key Specifications
- Manufacturer: Leviton
- Model: 2321
- NEMA Configuration: L6-20P
- Rating: 20 Amp, 250 VAC
- Poles/Wires: 2 Pole, 3 Wire
- Grounding: Yes
- Construction: Impact-resistant nylon body with solid brass contacts
- Wire Range: 16–10 AWG
- Cord Diameter: 0.385″–0.780″
- Horsepower Rating: 2 HP
- Operating Temperature: -40°C to 60°C
Typical Applications
- Industrial machinery
- HVAC equipment
- Power distribution systems
- Generators
- Test and laboratory equipment requiring 250V locking connections
| Weight | 1 lbs |
|---|---|
| Dimensions | 6 × 3 × 2 in |
