Product Description

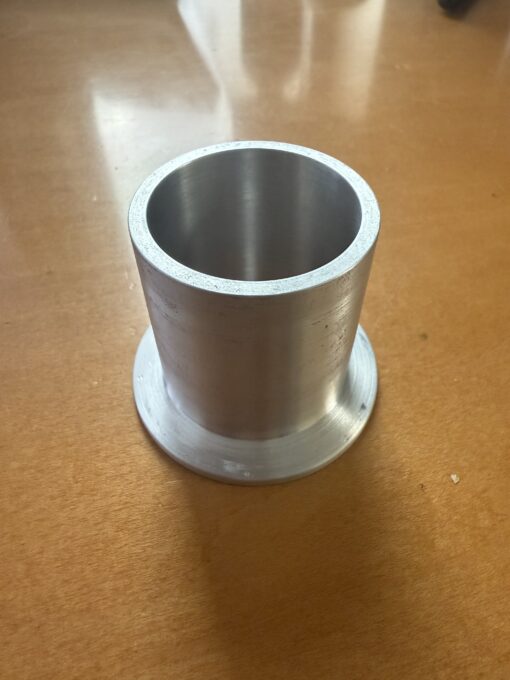

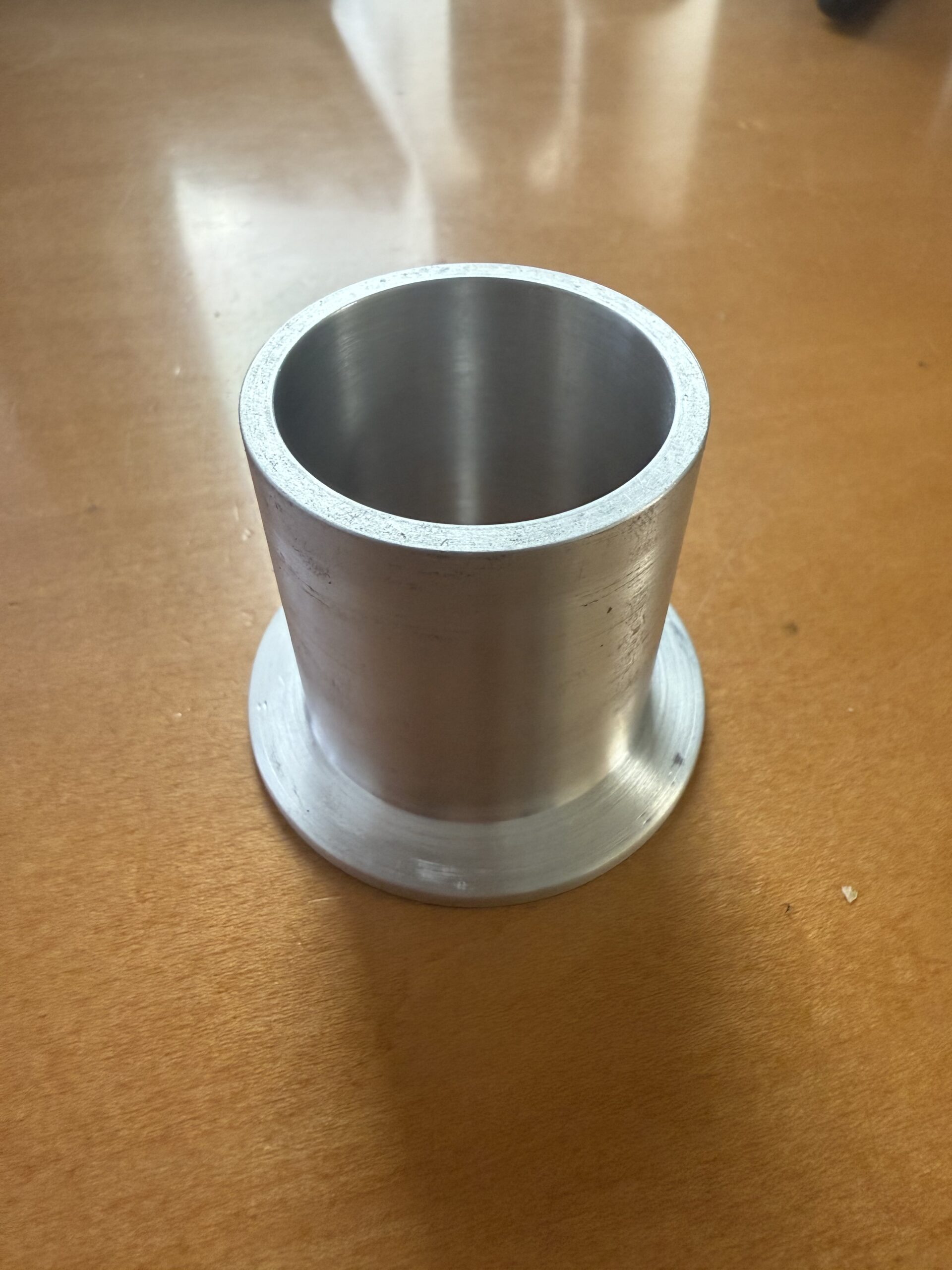

KF25 (NW25) Half Nipple Fitting – Aluminum
This aluminum half nipple is a versatile ISO-KF (also called Quick Flange or NW25) vacuum component, used to transition between a KF25 flange port and a tube of the same nominal diameter for system building and modification.
Key Specifications:
-
Flange Standard: ISO-KF / Quick Flange, Size 25 (KF25, NW25)
-
Nominal Bore: 25 mm
-
Material: Aluminum (Lightweight, good thermal conductivity)
-
Configuration: Half Nipple (One end: KF25 flange with centering ring groove; Other end: tube for welding or clamping)
-
Sealing: Uses a standard Viton® O-ring and centering ring on the flange side
-
Vacuum Range: Suitable for medium to high vacuum applications
Applications:
-
Connecting pumps, gauges, or valves to aluminum vacuum chambers
-
Building or modifying vacuum manifolds and lines
-
Prototype and research vacuum systems
-
Low-outgassing applications where aluminum is preferred
| Weight | 4 lbs |
|---|---|
| Dimensions | 9 × 6 × 3 in |
