Product Description

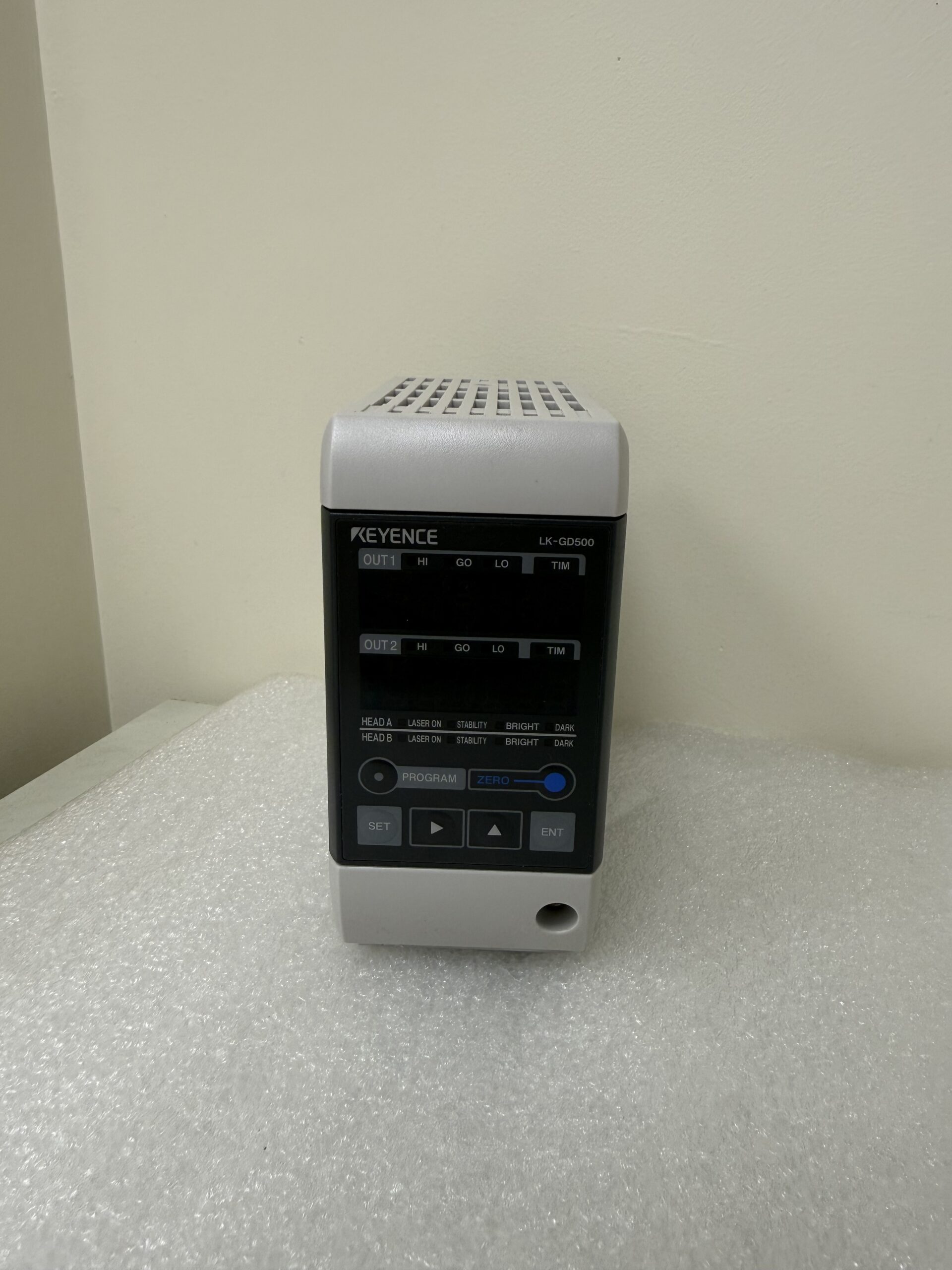

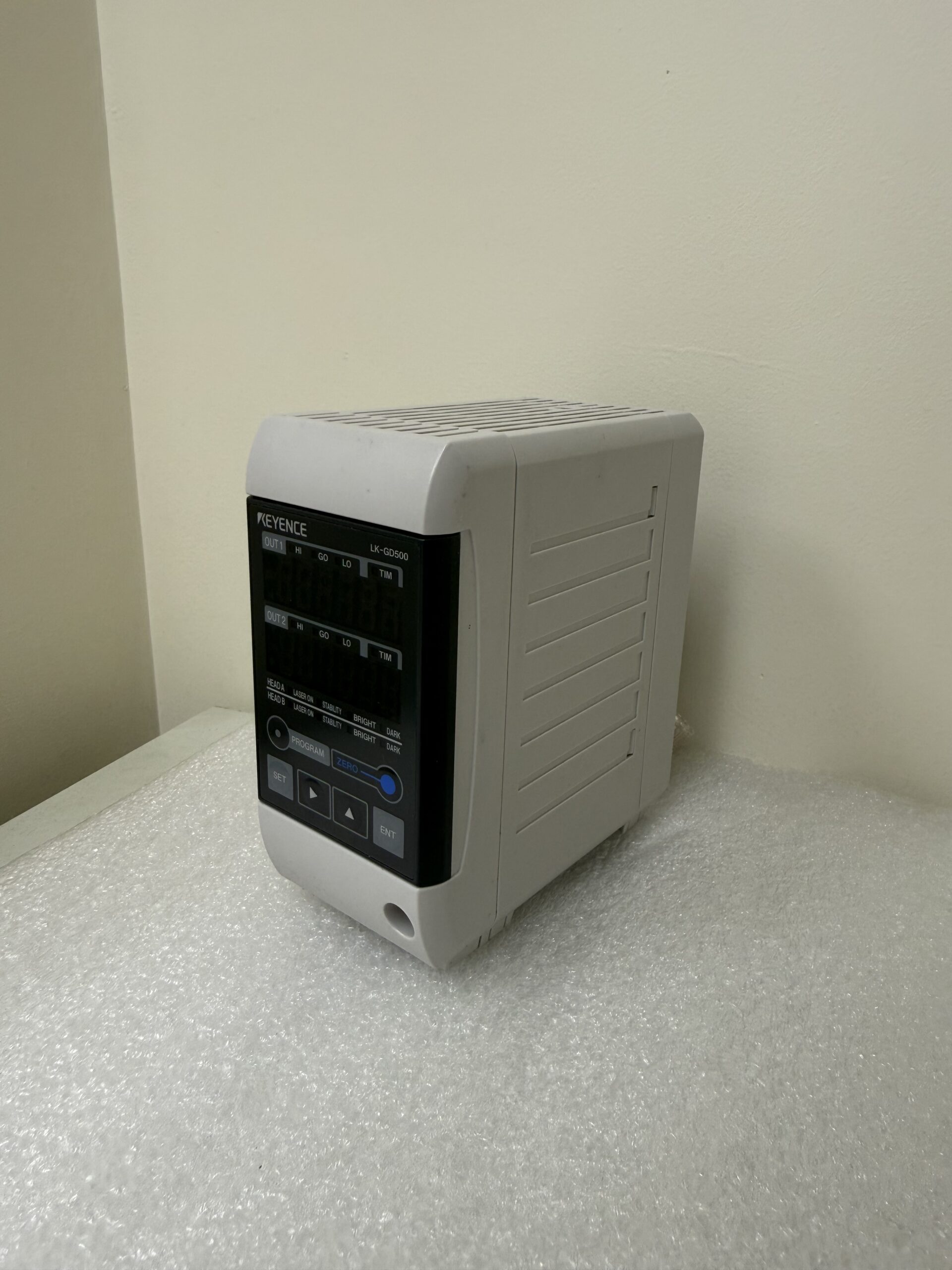

KEYENCE LK-GD500 Separate-Type Display Panel – For LK-G3000 Series Laser Displacement Sensors
This used KEYENCE LK-GD500 is a separate-type display panel designed exclusively for use with KEYENCE’s LK-G3000 series high-speed, high-accuracy CCD laser displacement sensors . This display unit attaches to the LK-G3001 or LK-G3001P controller and provides real-time measurement readout and configuration access .
The LK-GD500 enables operators to view measurement values and modify sensor settings directly without needing a connected PC. This is the dedicated display module that completes a standalone LK-G3000 measurement system .
Condition Note: This unit is untested and sold as-is. No controller, sensor head, cables, or documentation are included unless specified. This unit requires an LK-G3000 series controller for operation.
Key Specifications
| Specification | Details |
|---|---|
| Manufacturer | KEYENCE Corporation |
| Model | LK-GD500 |
| Type | Separate-Type Display Panel |
| Compatibility | LK-G3001, LK-G3001P (Separate Type Controllers) |
| Minimum Display Unit | 0.01 µm |
| Display Range | ±9999.99 mm to ±9999.99 µm (6 levels selectable) |
| Display Refresh Rate | 10 times/second |
| Weight | Approx. 60 g |
| Condition | SEEMS NEW– Untested |
System Context
The LK-GD500 is a component of KEYENCE’s LK-G3000 series measurement system. A complete system requires:
| Component | Model | Included |
|---|---|---|
| Controller | LK-G3001 (NPN) or LK-G3001P (PNP) | No |
| Display Panel | LK-GD500 | Yes |
| Sensor Head | LK-G series (e.g., LK-G30, LK-G15, LK-G500) | No |
| Head Cable | LK-GC series (GC2, GC5, GC10, GC30) | No |
| Power Supply | 24 VDC ±10% | No |

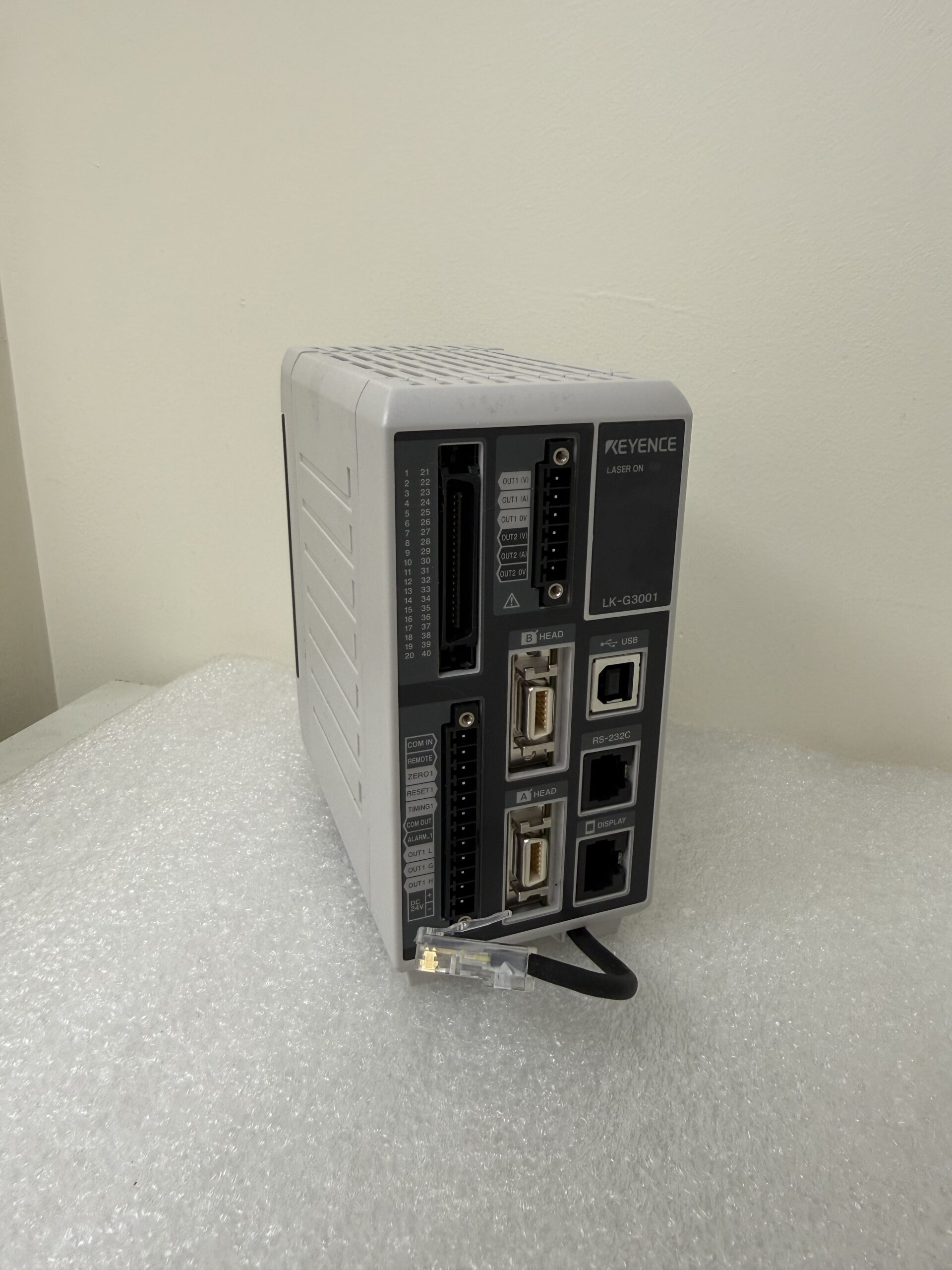

This unit connects to the controller via the controller’s built-in port . The LK-G3001/P controllers can be operated singly; measurement display and setting changes can be performed on the LK-GD500 display panel or via the LK-H1W setup support software .
Applications
-
Precision Manufacturing: Real-time displacement measurement feedback for QC stations
-
Automated Assembly: Integration into inline inspection systems with controller
-
R&D Laboratories: Standalone measurement setup when paired with LK-G3001 controller
-
Calibration Stations: Secondary display for operator viewing of precision measurements
-
Legacy System Maintenance: Replacement or spare for existing LK-G3000 installations
Condition
SOLD AS IS
SEEMS NEW – PULLED FROM SURPLUS
FUNCTIONALITY NOT TESTED
NO CONTROLLER, SENSOR HEAD, OR CABLES INCLUDED
NO DOCUMENTATION OR SOFTWARE INCLUDED

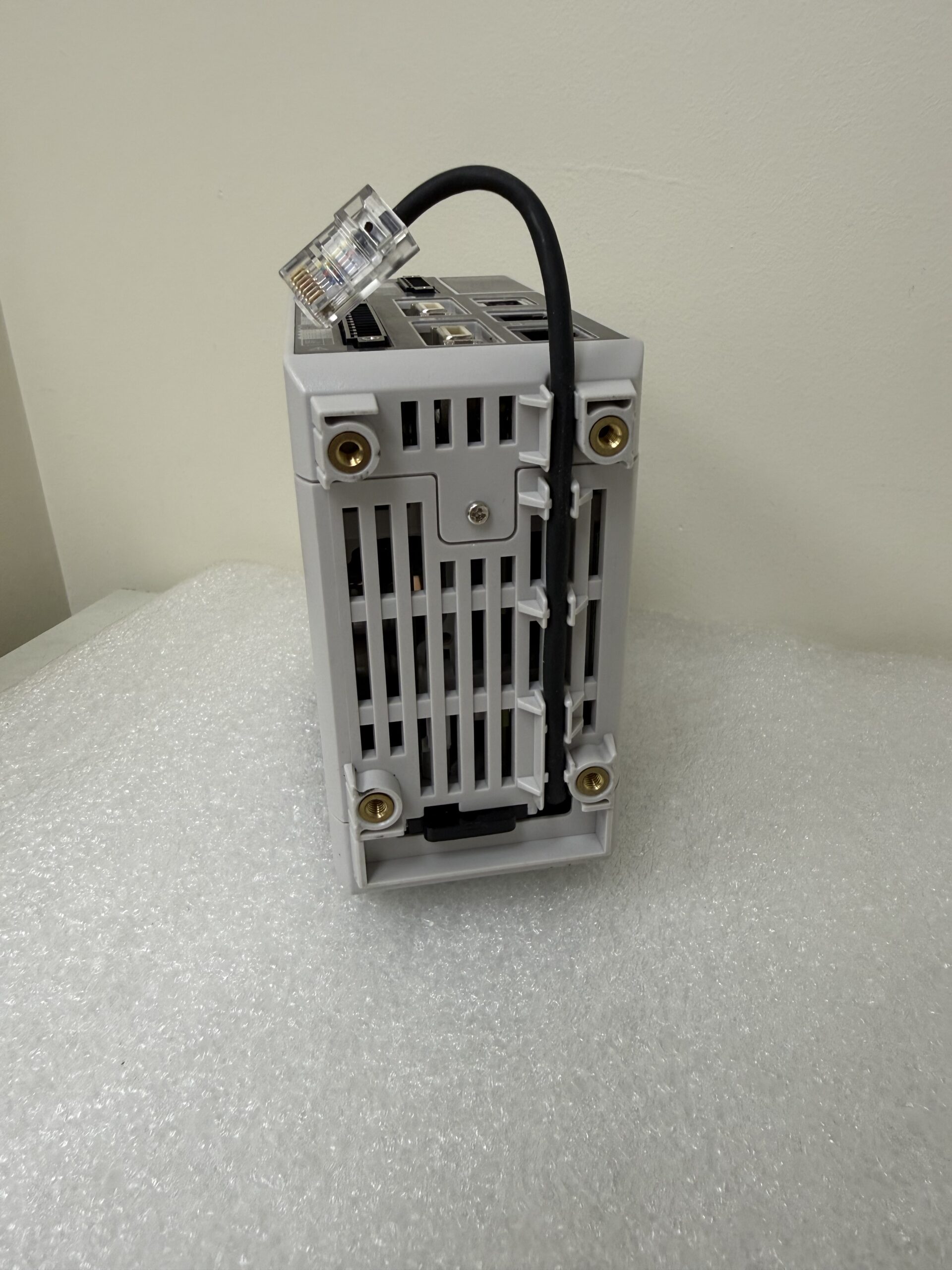

⚠ COMPATIBILITY NOTE: This LK-GD500 is ONLY compatible with separate-type LK-G3001 or LK-G3001P controllers . It will NOT work with all-in-one LK-G3001V models . The display panel connects to the controller via a dedicated port on the front/bottom of the LK-G3001/P . It cannot function independently.
| Weight | 2 lbs |
|---|---|
| Dimensions | 8 × 6 × 4 in |
