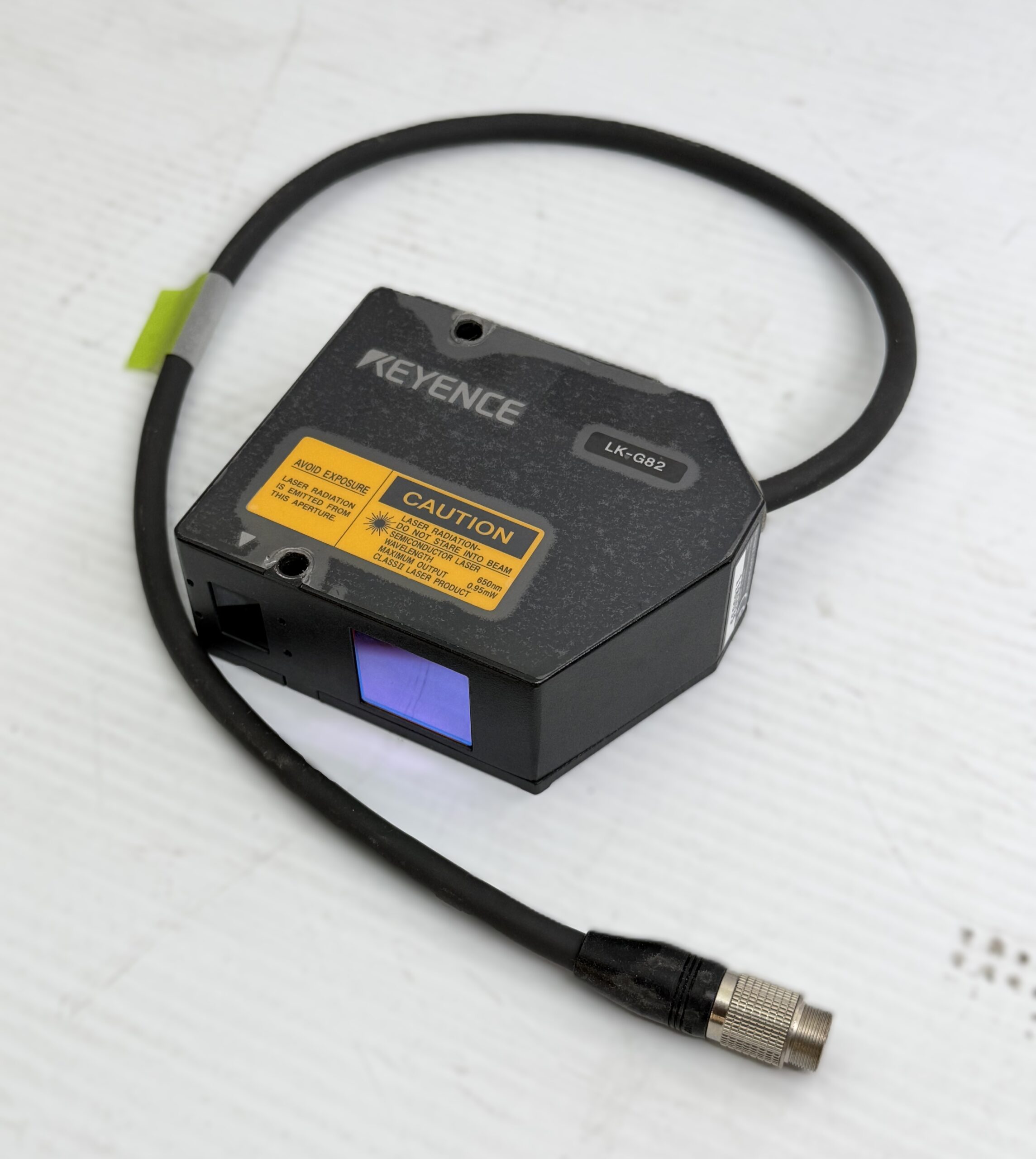

Keyence LK-G82 CCD Laser Displacement Sensor Head
$1,200.00
SKU: 84041
Keyence LK-G82 high-speed CCD laser displacement sensor head.
1 in stock
CompareKeyence LK-G82 CCD Laser Displacement Sensor Head is a high-speed, high-precision non-contact measurement sensor designed for displacement, position, thickness, and dimensional inspection in industrial automation and quality control applications. As part of the Keyence LK-G3000 Series, it is widely used in electronics manufacturing, semiconductor production, automotive assembly, robotics, and precision machining where micron-level measurement accuracy is required.

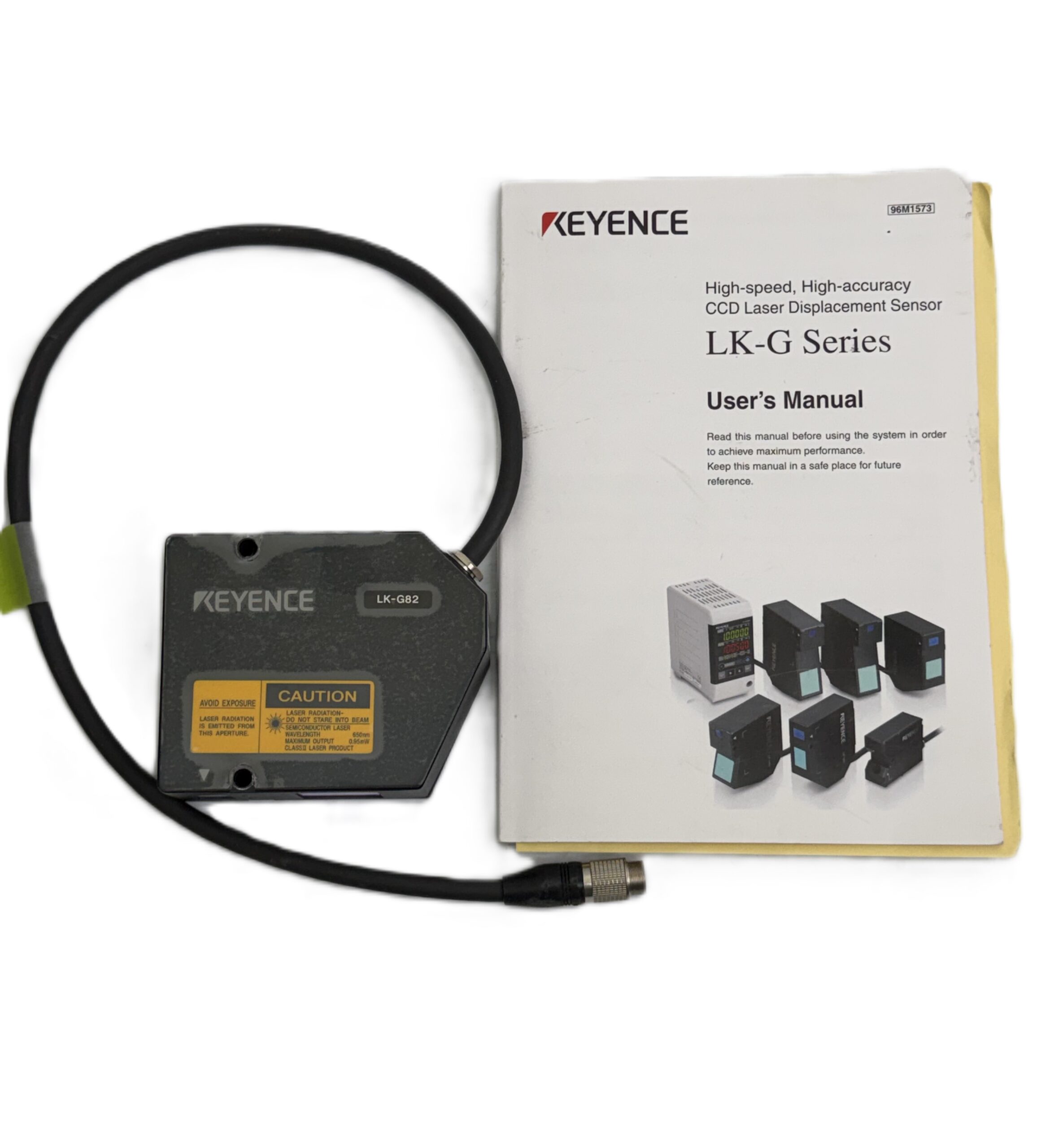

CONDITION: This unit is untested and sold as-is. Cosmetic wear may be present from previous use. Controller, connection cable, mounting hardware, manuals, calibration certificate, and original packaging are included only if shown in the listing photos.
We have over 40 years of experience shipping sensitive scientific instruments & industrial equipment! Need help? Give us a call at 781-871-8868.
Key Specifications
| Specification | Details |
|---|---|
| Manufacturer | Keyence |
| Model | LK-G82 |
| Series | LK-G3000 |
| Product Type | CCD Laser Displacement Sensor Head |
| Measurement Principle | Laser Triangulation |
| Reference Distance | 80 mm (3.15 in) |
| Measuring Range | ±15 mm (Diffuse Reflection) |
| Light Source | Red Semiconductor Laser |
| Wavelength | 655 nm |
| Laser Class | Class 2 (IEC), Class II (FDA) |
| Laser Output | 0.95 mW Max |
| Spot Diameter | Approx. 70 μm |
| Repeatability | 0.2 μm |
| Linearity | ±0.05% F.S. |
| Sampling Rate | 20 to 1,000 μs (Selectable) |
| Protection Rating | IP67 |
| Operating Temperature | 32°F to 122°F (0°C to 50°C) |
| Weight | Approx. 0.84 lb (380 g) |
| Weight | 2 lbs |
|---|---|
| Dimensions | 9 × 7 × 1 in |
