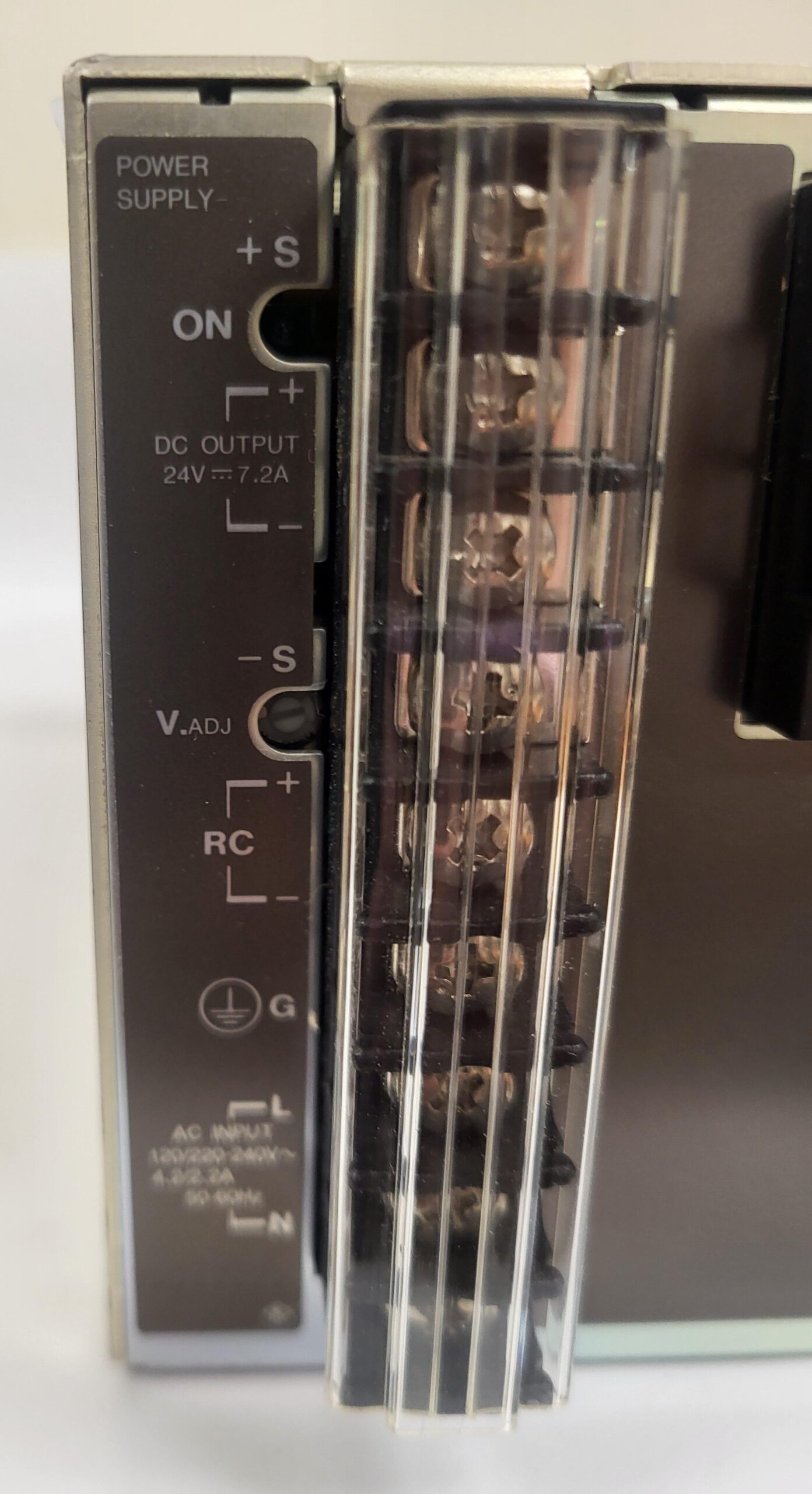

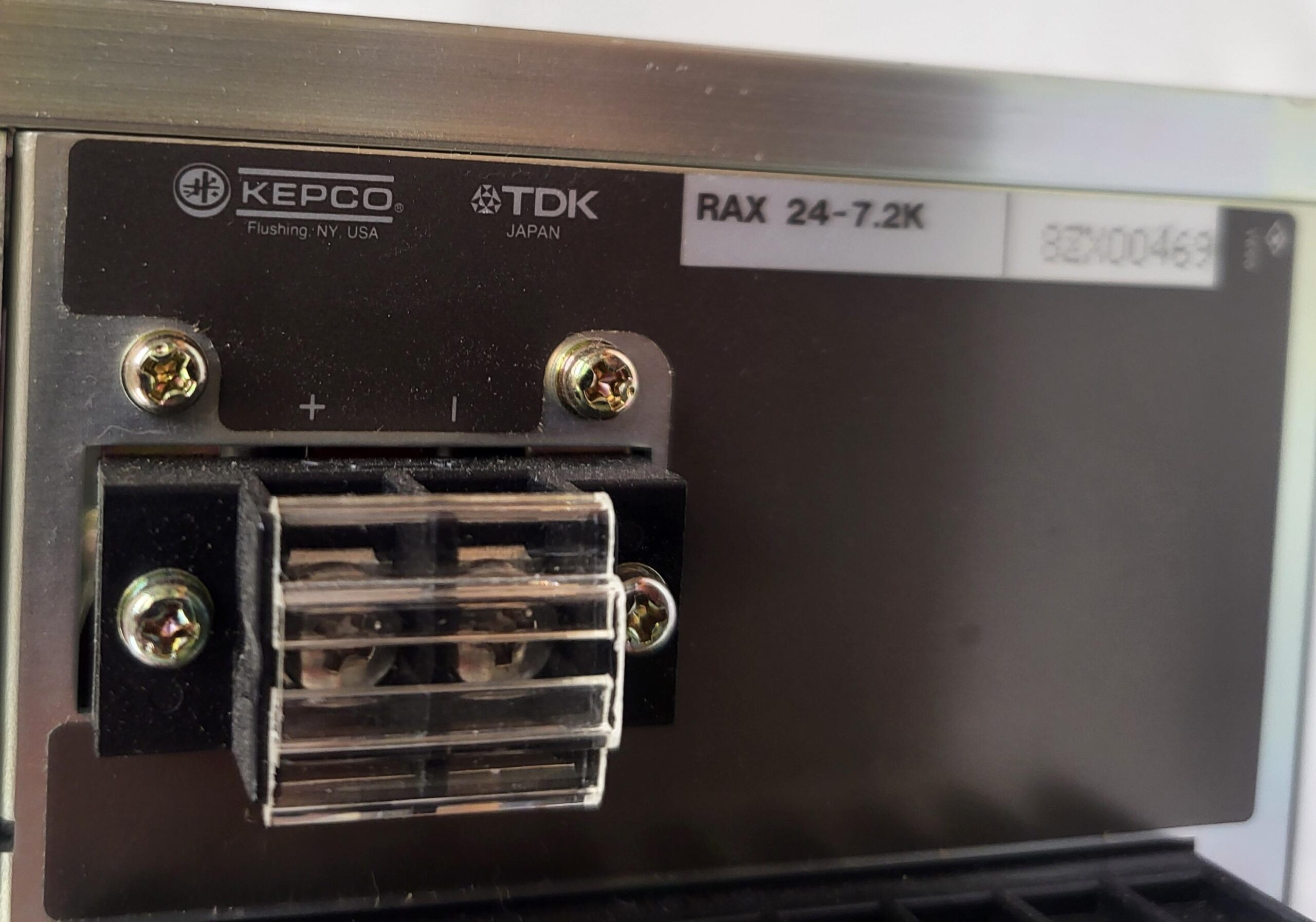

Kepco RAX-7 .2k TDK Power Supply

Kepco RAX-7 .2k TDK Power Supply

These are untested used power supplies.  They are being sold “As is” . This item is not eligible for return

The RAX series are obsolete industrial-grade, single-output switching power modules offered in 50–1500 W sizes, enclosed with barrier-strip terminals for robust installation.

They meet UL 1950, EN 60950, and MIL-STD-810D environmental standards.

RAX24‑7.2K – Model Highlights

• Output: ~24 V DC, nominal 7.2 A (≈172 W) .

• Adjustable Range: 16.8–26.4 V via internal pot.

• Input: Selectable 115 V or 230 V AC (47–440 Hz), or 240‑370 V DC

• Protections:

  • Soft-start via triac to limit inrush.

  • Constant current limiting with auto-recovery.

  • Overvoltage shut-down.

• ✅ Summary Table

  Feature	Spec / Details
  Output	16.8–26.4 V @ 7.2 A (~172 W)
  Input	115/230 VAC or 240–370 V DC
  Controls	Remote TTL on/off, “Power‑OK” LED
  Protections	Soft‑start, current limit, OVP
  Mounting	DIN-rail / chassis barrier strips
  Status	Obsolete
