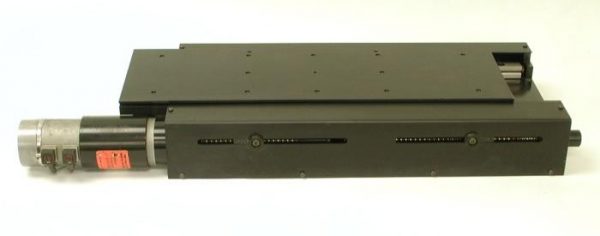

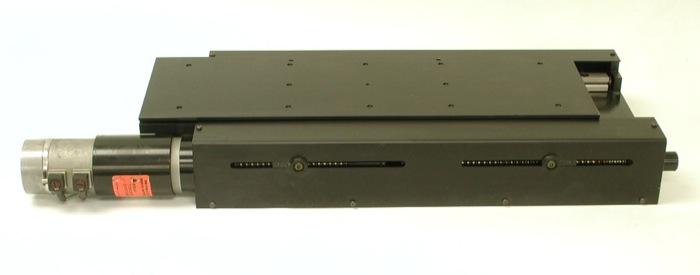

This is a Kensington linear motorized stage with 12 inches of motion. It uses cross-roller bearings for very large load bearing (multiple stages are easily stacked).
Stage base dimensions 8.625 inches wide and 16.75 inches long.
Platform height (above base) 2.845 inches
Platform dimensions 5.70 inches wide and 16.75 inches long
Serial number 89-295-20
Has externally user adjustable limit switch option
EG&G PM Field DC Servo Motor MT2115-014DF
Stage is in near-flawless condition although it has not been tested with a driver. Manual control is possible using external control knob, and motion is very smooth throughout range.
Location H3 R2
Photo set 992
***MPN 8500-12
***OEM Kensington
***SKU*** DP545
