Keithley 6517 Electrometer for PARTS/REPAIR

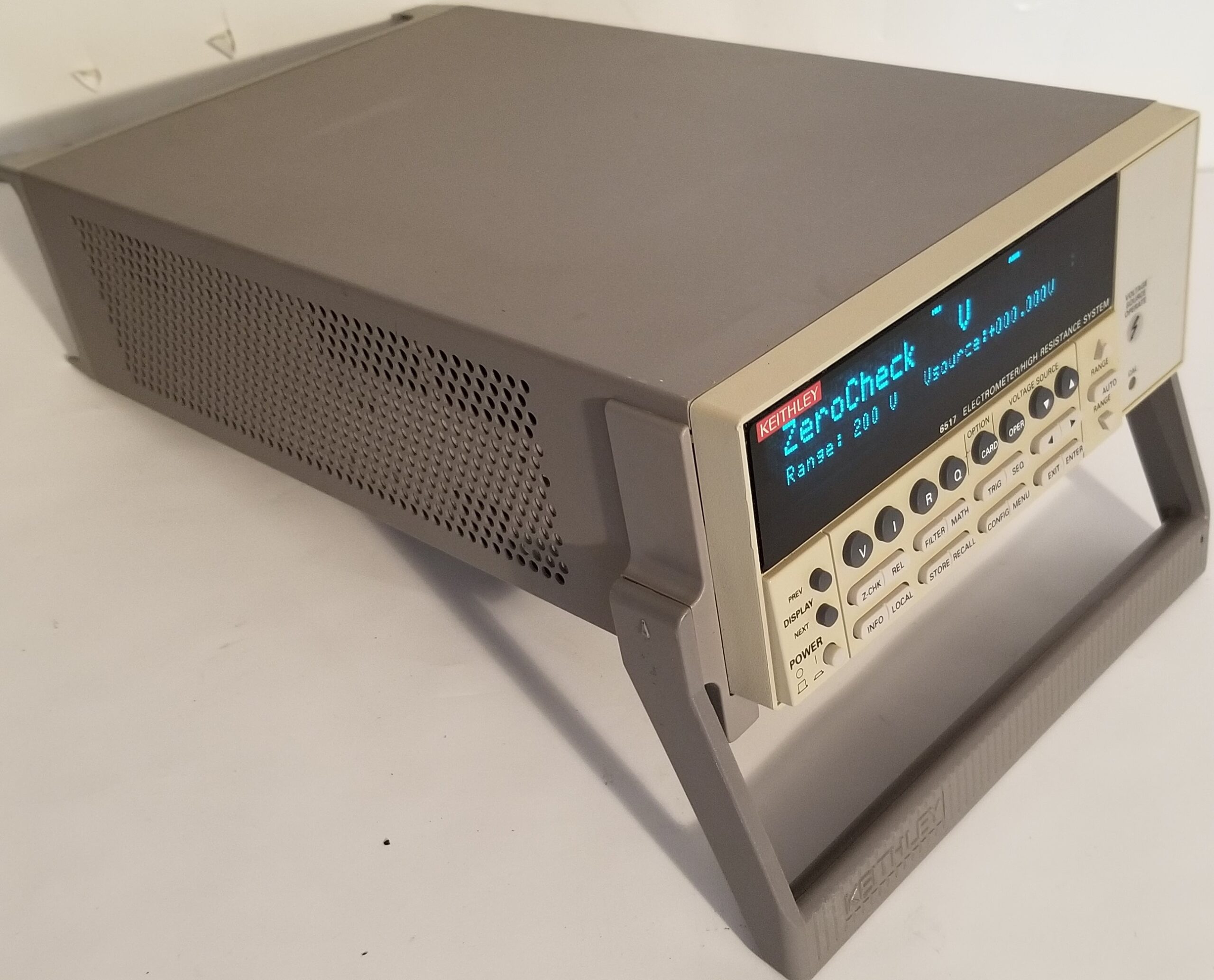

Keithley 6517 Electrometer for PARTS/REPAIR. Unit powers on. Display bright. Passes self-test, ROM test and RAM test. After initialization ERROR 510 appears in display. When any key is pressed, the display reverts to normal. No further testing performed. No manual, test leads or other accessories. As shown.

The Keithley 6517 Electrometer/High-Resistance Meter is the worldwide research laboratory standard for sensitive measurements that provides reliable measurements of current levels down to 10 aA (10 x 10¹⁸A), charge levels down to 1 fC, and the highest resistance measurements available up to 10¹⁸Ω.

• Capable of measuring voltage range up to 200V with input impedance exceeding 200 TΩ
• 6-1/2 digit high-accuracy measurement mode
• Built-in ±1000V voltage source
• Measures resistances up to 10¹⁸Ω
• 10 aA (10 x 10¹⁸A) current measurement resolution
• Complete hardware/software solution for ASTM D257 high-resistivity measurements when paired with 8009 Test Fixture and KickStart Application (both sold separately)
• Less than 3 fA input bias current
• 6-1/2 digit high-accuracy measurement mode
• Less than 20 µV burden voltage on lowest current ranges
• Voltage measurements up to 200V with more than 200 TΩ input impedance
• Unique alternating polarity voltage sourcing and measurement method for high-resistance measurements
• Built-in test sequences for four different device characterization tests, surface and volume resistivity, surface insulation resistance, and voltage sweeping
• Optional plug-in scanner cards (sold separately) for testing up to 10 devices or material samples with one test setup
• GPIB and RS-232 interfaces
